992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001501 - 002000) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

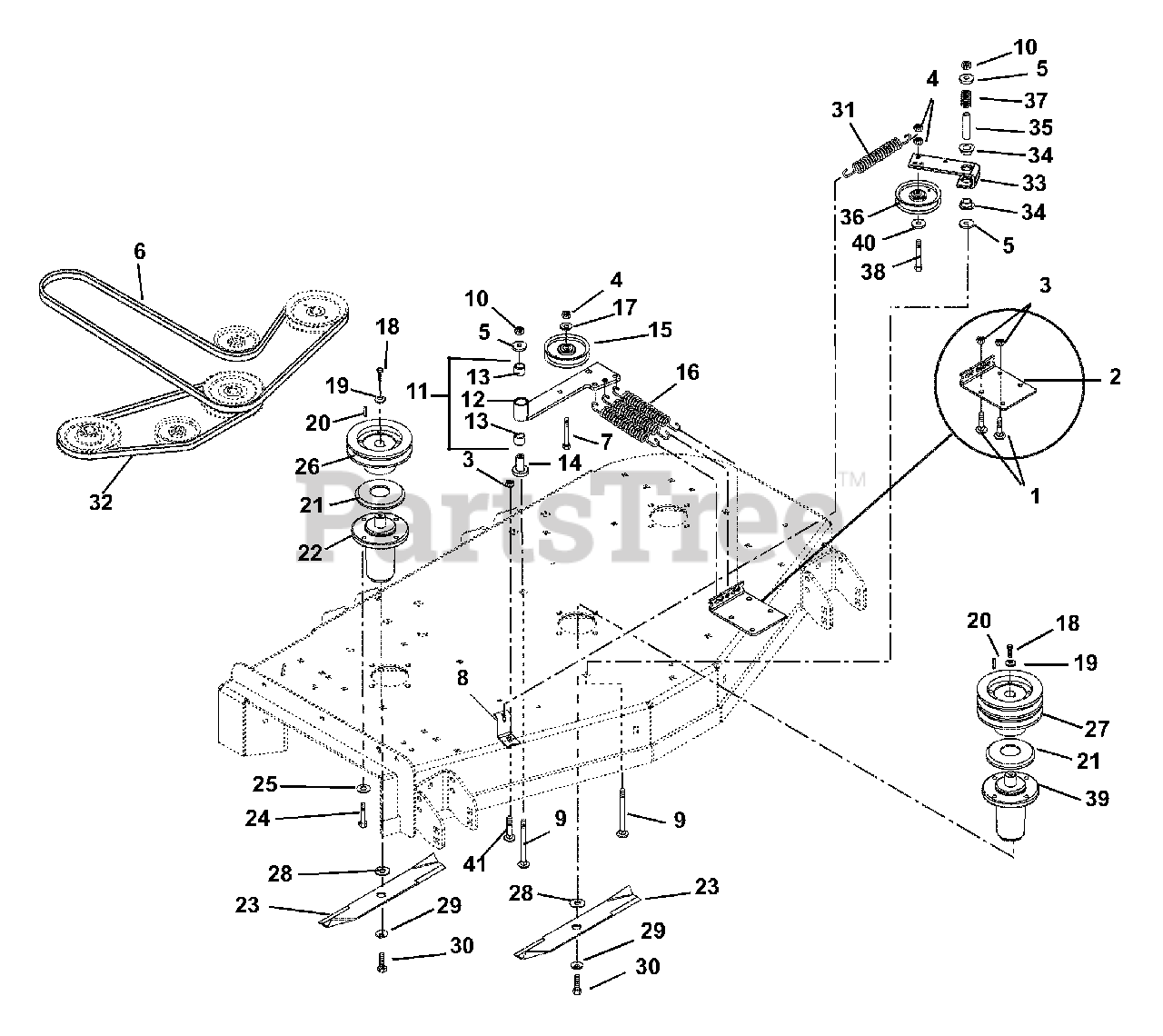

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 00198300

BRACKET,LONG SPRING (DIESEL)

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

Note: (GRAVELY PART NUMBER 415543)

$2.99

$

In Stock, Qty 15

0

6

Ariens 07240400

V-BELT, HB-WRAPPED

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Ariens 09245353

ANCHOR, SPRING (RED)

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, Qty 11

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00199000

ASSY-DECK IDLER PIVOT ARM

Note: (Contains Items 12 & 13)

$206.99

$

Usually ships in 4-12 days

0

12

Ariens 00198451

WMT, DECK IDLER PIVOT ARM

$206.99

$

Usually ships in 4-12 days

0

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 20+

0

14

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$79.99

$

In Stock, Qty 7

0

15

Ariens 07328300

IDLER-FLAT 4.00 X .38 (2.32W)

Note: (2.32W)

$180.99

$

In Stock, only 1 left!

0

16

Ariens 08300002

SPRING, EXT0NSION DIA1.0X6.0LG
(Superseded to 08300513)

$34.99

$

In Stock, Qty 13

0

17

Ariens 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

18

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

19

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 10

0

21

Ariens 09238200

SLINGER, DUST

$9.49

$

In Stock, Qty 16

0

22

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$239.99

$

In Stock, Qty 8

0

23

Ariens 09046900

BLADE 60" MOWER CE

$

$

Not available

23

Ariens 08866900

BLADE, MULCHING (20.50")

$34.99

$

In Stock, Qty 11

0

24

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

26

Ariens 09238500

WELDMENT, SPINDLE SHEAVE 6.00

$45.99

$

In Stock, Qty 6

0

27

Ariens 09253100

SHEAVE, DOUBLE (6.25")

Note: (6.25)

$85.99

$

In Stock, only 3 left!

0

28

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

29

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

30

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

31

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

Note: (316, 317)

$15.99

$

In Stock, Qty 16

0

32

Ariens 07235000

V-BELT, HB-RAW EDGE

$50.99

$

In Stock, only 3 left!

0

33

Ariens 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

34

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

35

Ariens 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0

36

Ariens 07327600

V-IDLER, 4.00X.38

$37.99

$

In Stock, Qty 9

0

37

Ariens 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

38

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

39

Ariens 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

40

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0
