992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001501 - 002000) Engine - Diesel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

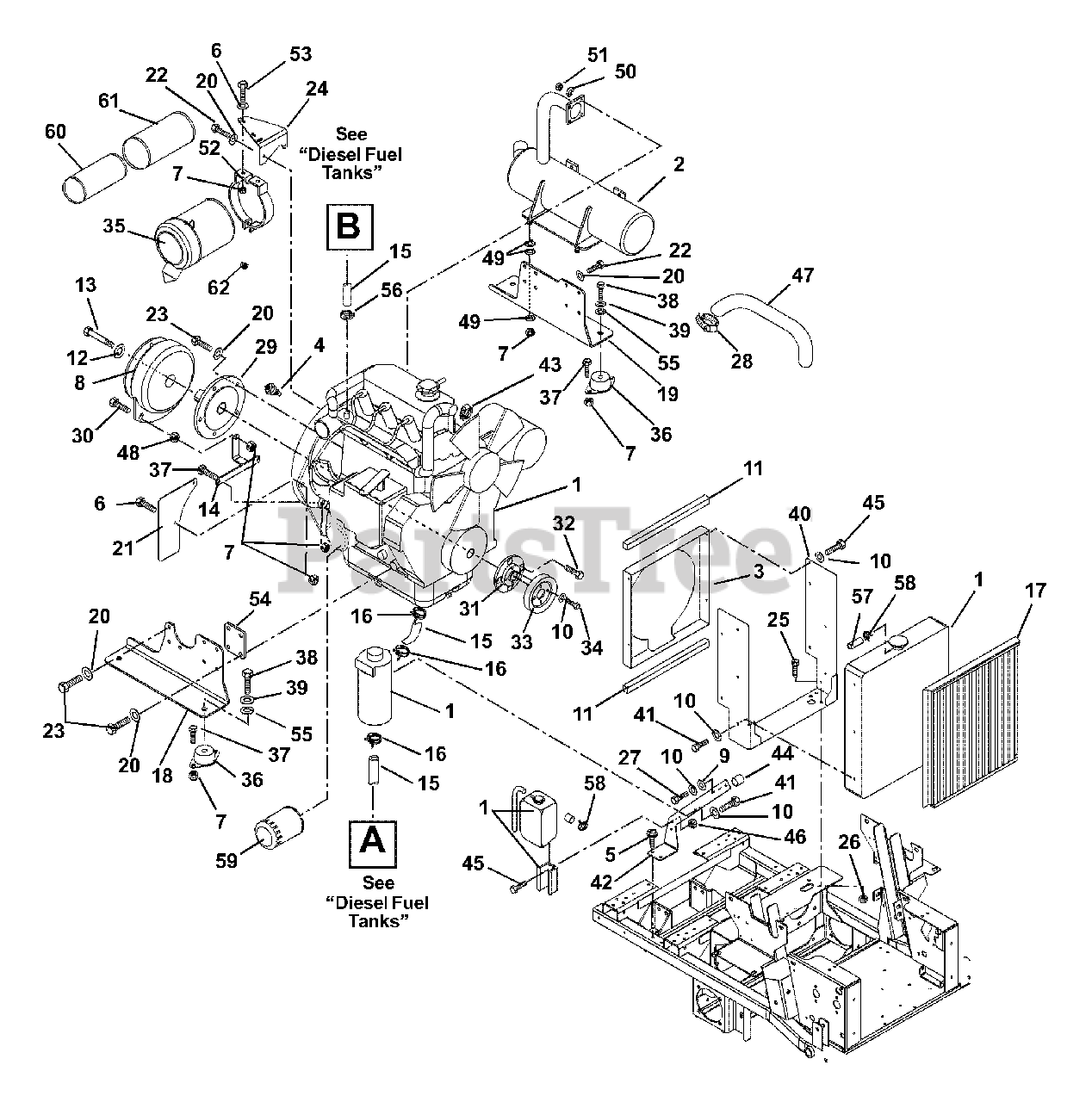

Engine - Diesel Parts Diagram

  • Title

1

Ariens 08270300

ENGINE, 27HP DIESEL (DAIHATSU)

Note: (Daihatsu) (992316)

$

$

Not available

Ariens 08267100

ENGINE, 31HP DIESEL (DAIHATSU)

Note: (Daihatsu) (992317)

$

$

Not available

2

Ariens 09297800

MUFFLER

Note: (992316)

$562.99

$

Usually ships in 4-12 days

0

Ariens 09265900

MUFFLER

Note: (992317)

$521.99

$

Usually ships in 4-12 days

0

3

Ariens 09266851

WMT, RADIATOR SHROUD

$69.99

$

Usually ships in 4-12 days

0

4

Ariens 09263300

SENDER, TEMPERATURE

$55.99

$

Usually ships in 4-12 days

0

5

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 19

0

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 09266700

CLUTCH, ELECTRIC (WARNER)
(Superseded to 00389900)

$478.99

$

In Stock, only 1 left!

0

Ariens 59205200

KIT,BRAKE POLE MODULE REPLACE

Note: NS

$

$

Not available

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

10

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

11

Ariens 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

13

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 09264551

STABILIZER, CLUTCH

$24.99

$

Usually ships in 4-12 days

0

15

Ariens 00922600

HOSE,5/16 ID

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06947900

CLAMP, HOSE WIRE .520/.550

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 09265400

SCREEN, RADIATOR (DIESEL)

$142.99

$

Usually ships in 4-12 days

0

18

Ariens 09265251

MOUNT, ENGINE RH (DIESEL)

$

$

Not available

19

Ariens 09265351

MOUNT, ENGINE LH (DIESEL)

$82.99

$

Usually ships in 4-12 days

0

20

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 09273851

GUARD, FLYWHEEL

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 09295051

BRKT, AIR CLEANER - BLACK

$82.99

$

In Stock, only 1 left!

0

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05979200

@BLT-HEX M6-1.00X45 YWZC

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06900005

CLAMP, HOSE #32 (1.56/2.50)
(Superseded to 06934700)

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 09295300

SHAFT, STUB (BRIGGS-DIESEL)
(Superseded to 00447200)

Note: (992317)

$

$

Not available

30

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 09265600

ADAPTER, SHEAVE (DIESEL)

$96.99

$

Usually ships in 4-12 days

0

32

Ariens 05978700

BLT, FSCHS M8-1.25X25

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

34

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

35

Ariens 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

36

Ariens 05034800

MOUNT, ENGINE, VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

37

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

38

Ariens 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

39

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

40

Ariens 09265851

WMT, RADIATOR MOUNTING BKRT

$90.99

$

Usually ships in 4-12 days

0

41

Ariens 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

42

Ariens 09278651

BRKT, OVERFLOW MOUNTING - BLK

$25.99

$

Usually ships in 4-12 days

0

43

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

44

Ariens 09235400

SPACER .328 X .76 X 1.01

$20.99

$

In Stock, only 1 left!

0

45

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

46

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

47

Ariens 09295400

HOSE, AIR CLEANER

Note: (992316)

$34.99

$

Usually ships in 4-12 days

0

Ariens 00172600

HOSE, AIR CLEANER

Note: (992317)

$

$

Not available

48

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

49

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 15

0

50

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06538600

NUT-HEX M8-1.25 YWZC

$1.99

$

Usually ships in 4-12 days

0

52

Ariens 09257600

BRACKET, AIR CLEANER MOUNT

$87.99

$

In Stock, only 1 left!

0

53

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 15

0

54

Ariens 09277251

SPACER, ENGINE MTG (DIESEL)

$

$

Not available

55

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 06948200

CLAMP, HOSE, IDEAL 6202 SIZE 4

$

$

Not available

57

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

59

Ariens 21539000

FILTER, OIL

$

$

Not available

60

Ariens 21536900

ELEMENT, INNER SAFETY

$21.99

$

In Stock, only 4 left!

0

61

Ariens 21537000

ELEMENT, OUTER PRIMARY

$28.99

$

In Stock, Qty 20+

0

62

Ariens 07012700

FTG,LUBE 45 DEG

$3.99

$

Usually ships in 4-12 days

0

Ariens 21538900

FILTER, FUEL

$106.99

$

In Stock, only 4 left!

0
