992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001501 - 002000) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

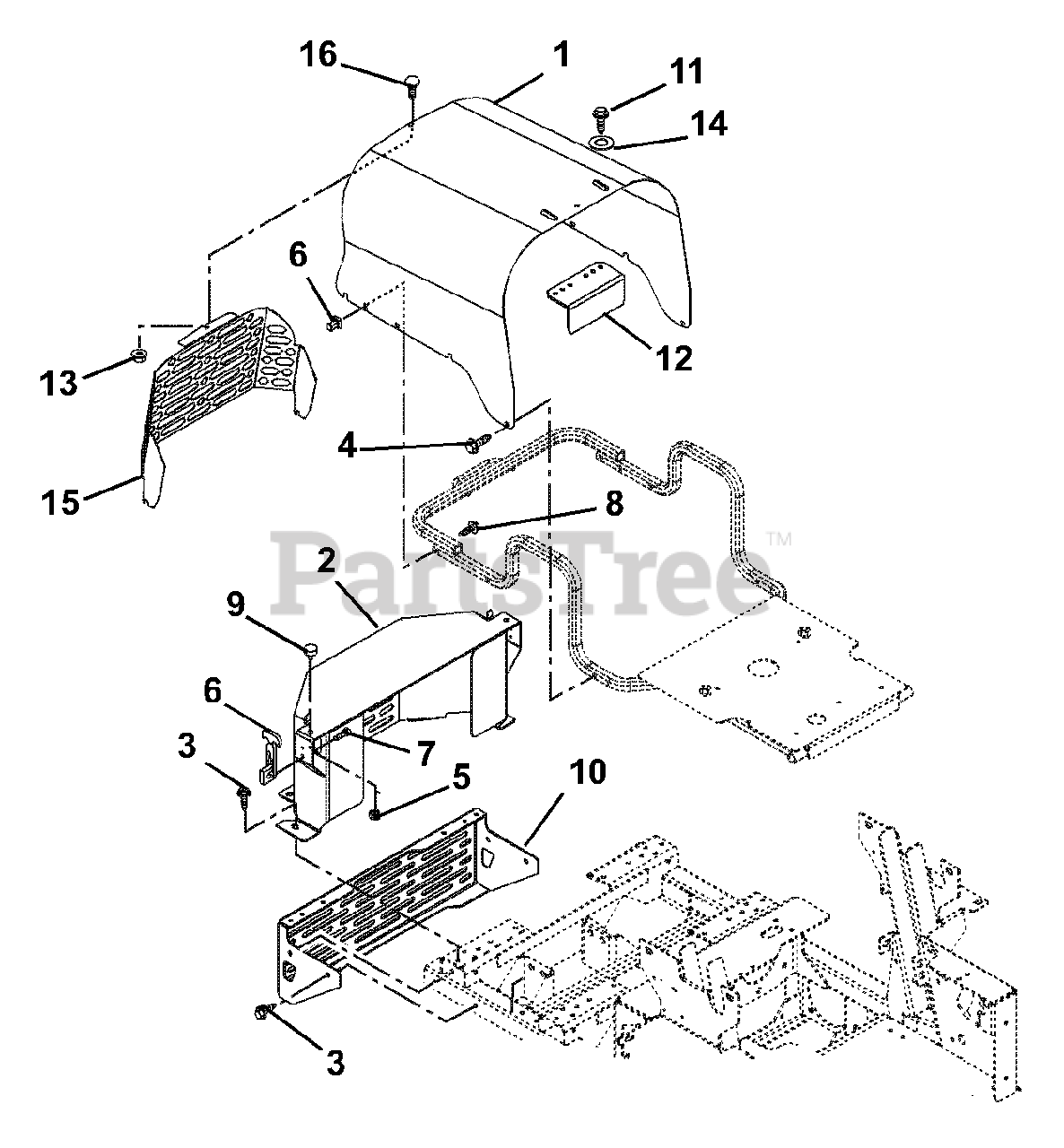

Hood And Bumper Parts Diagram

  • Title

1

Ariens 09278853

L/C HOOD - RED

$426.99

$

Usually ships in 4-12 days

0

2

Ariens 00165251

DIESEL BELT GUARD - BLACK

Note: (992316, 317)

$168.99

$

Usually ships in 4-12 days

0

3

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

5

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

6

Ariens 09079500

LATCH, RUBBER

$34.99

$

Usually ships in 4-12 days

0

7

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06118200

@SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

10

Ariens 09269451

WMT, BUMPER

$100.99

$

Usually ships in 4-12 days

0

11

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00160353

GUARD, RADIATOR CAP

$

$

Not available

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

14

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Ariens 09281151

L/C HOOD GUARD - BLACK

$265.99

$

Usually ships in 4-12 days

0

16

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0
