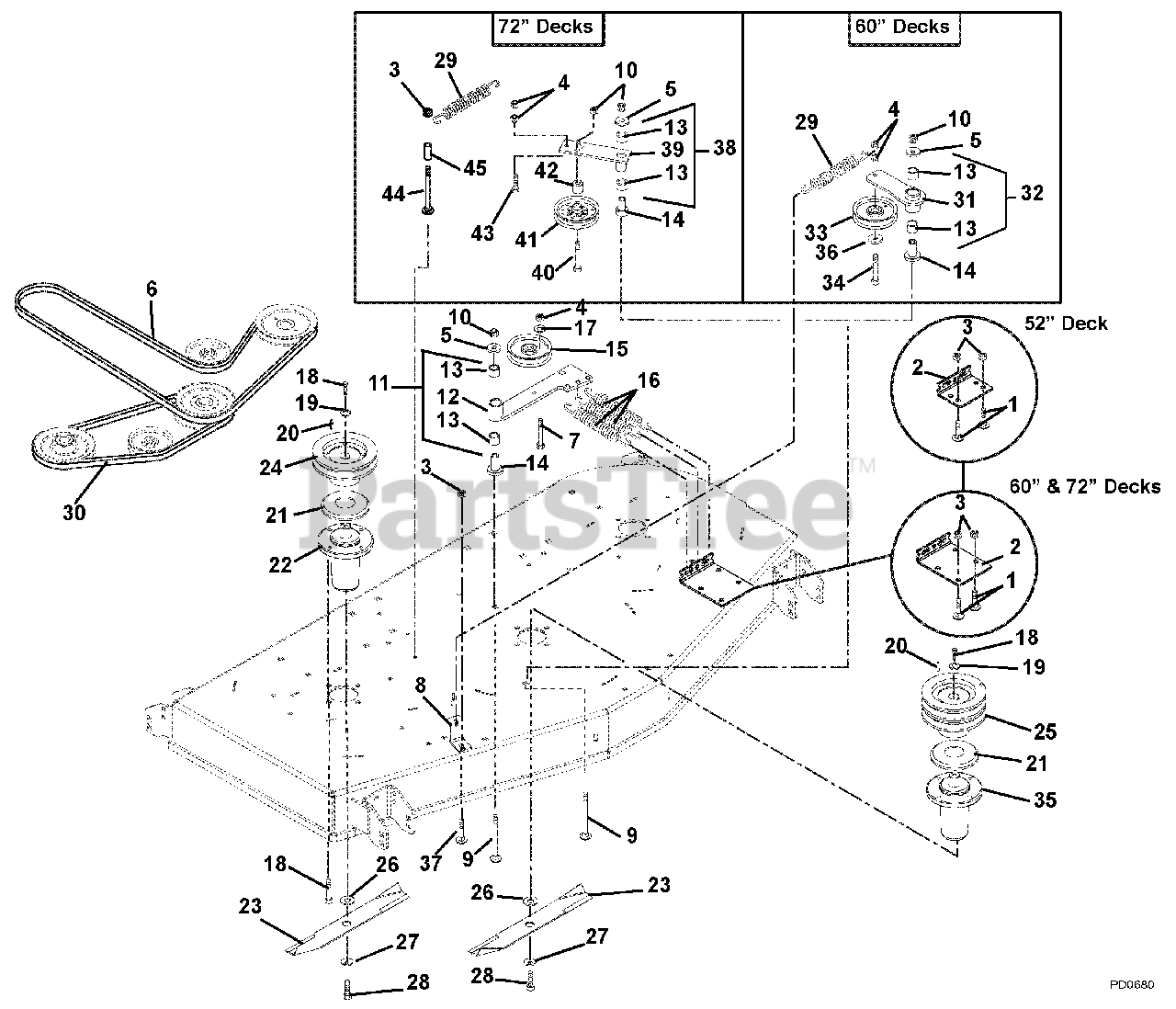

992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002001 - 002499) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 00198300

BRACKET,LONG SPRING (DIESEL)

Note: (992316, 317, 321)

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 00259700

BRACKET, SHORT SPRING (GAS)
(Superseded to 00259751)

Note: (992322)

$49.99

$

Usually ships in 4-12 days

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

Note: (GRAVELY PART NUMBER 415543)

$2.99

$

In Stock, Qty 13

0

6

Ariens 07240400

V-BELT, HB-WRAPPED

Note: (992316, 317)

$148.99

$

Usually ships in 4-12 days

0

6

Ariens 07240500

V-BELT, HB-WRAPPED

Note: (992321)

$153.99

$

Usually ships in 4-12 days

0

6

Ariens 07200016

V-BELT, HB-WRAPPED

Note: (992322)

$125.99

$

Usually ships in 4-12 days

0

7

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Ariens 09245353

ANCHOR, SPRING (RED)

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, Qty 10

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00199000

ASSY-DECK IDLER PIVOT ARM

Note: (Contains Items 12 & 13)

$206.99

$

Usually ships in 4-12 days

0

12

Ariens 00198451

WMT, DECK IDLER PIVOT ARM

$206.99

$

Usually ships in 4-12 days

0

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 20+

0

14

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$79.99

$

In Stock, Qty 7

0

15

Ariens 07328300

IDLER-FLAT 4.00 X .38 (2.32W)

Note: (2.32W)

$180.99

$

In Stock, only 1 left!

0

16

Ariens 08300011

SPRING,EXT TO 08300513
(Superseded to 08300513)

$34.99

$

In Stock, Qty 6

0

17

Ariens 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

18

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 13

0

19

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 6

0

21

Ariens 09238200

SLINGER, DUST

$9.49

$

In Stock, Qty 16

0

22

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$239.99

$

In Stock, Qty 7

0

23

Ariens 08866900

BLADE, MULCHING (20.50")

Note: (992316, 317)

$34.99

$

In Stock, Qty 5

0

23

Ariens 00273100

BLADE, MULCH 18.00"

Note: (992322)

$25.99

$

In Stock, Qty 20+

0

23

Ariens 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

Note: (992321)

$38.99

$

Usually ships in 4-12 days

0

24

Ariens 09238500

WELDMENT, SPINDLE SHEAVE 6.00

$45.99

$

In Stock, Qty 5

0

25

Ariens 09253100

SHEAVE, DOUBLE (6.25")

Note: (6.25)

$85.99

$

In Stock, only 3 left!

0

26

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

27

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

28

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

29

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$15.99

$

In Stock, Qty 14

0

30

Ariens 07235000

V-BELT, HB-RAW EDGE

$50.99

$

In Stock, only 2 left!

0

31

Ariens 00345600

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, Qty 5

0

32

Ariens 00349100

ASM, IDLER PIVOT ARM

Note: (Contains Items 13 and 32)

$63.99

$

In Stock, only 1 left!

0

33

Ariens 07327600

V-IDLER, 4.00X.38

Note: (992060, 075)

$37.99

$

In Stock, Qty 8

0

34

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

35

Ariens 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

36

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

38

Ariens 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes Items 13 and 39) (992321)

$100.99

$

In Stock, only 1 left!

0

39

Ariens 09217000

WMT, IDLER ARM GROUND DRIVE

Note: (992321)

$111.99

$

Usually ships in 4-12 days

0

40

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

Note: (992321)

$3.99

$

In Stock, only 3 left!

0

41

Ariens 07316700

IDLER-FLAT-PLY 6.75X.510

Note: (992321)

$63.99

$

In Stock, only 3 left!

0

42

Ariens 03233100

SPACER .513X.748X.620

Note: (992321)

$15.99

$

Usually ships in 4-12 days

0

43

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (992321)

$1.49

$

In Stock, Qty 8

0

44

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

Note: (992321)

$3.99

$

In Stock, only 1 left!

0

45

Ariens 09054100

SPACER .380 X .625 X 1.500

Note: (992321)

$

$

Not available
