992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001501 - 002000) Engine - Diesel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

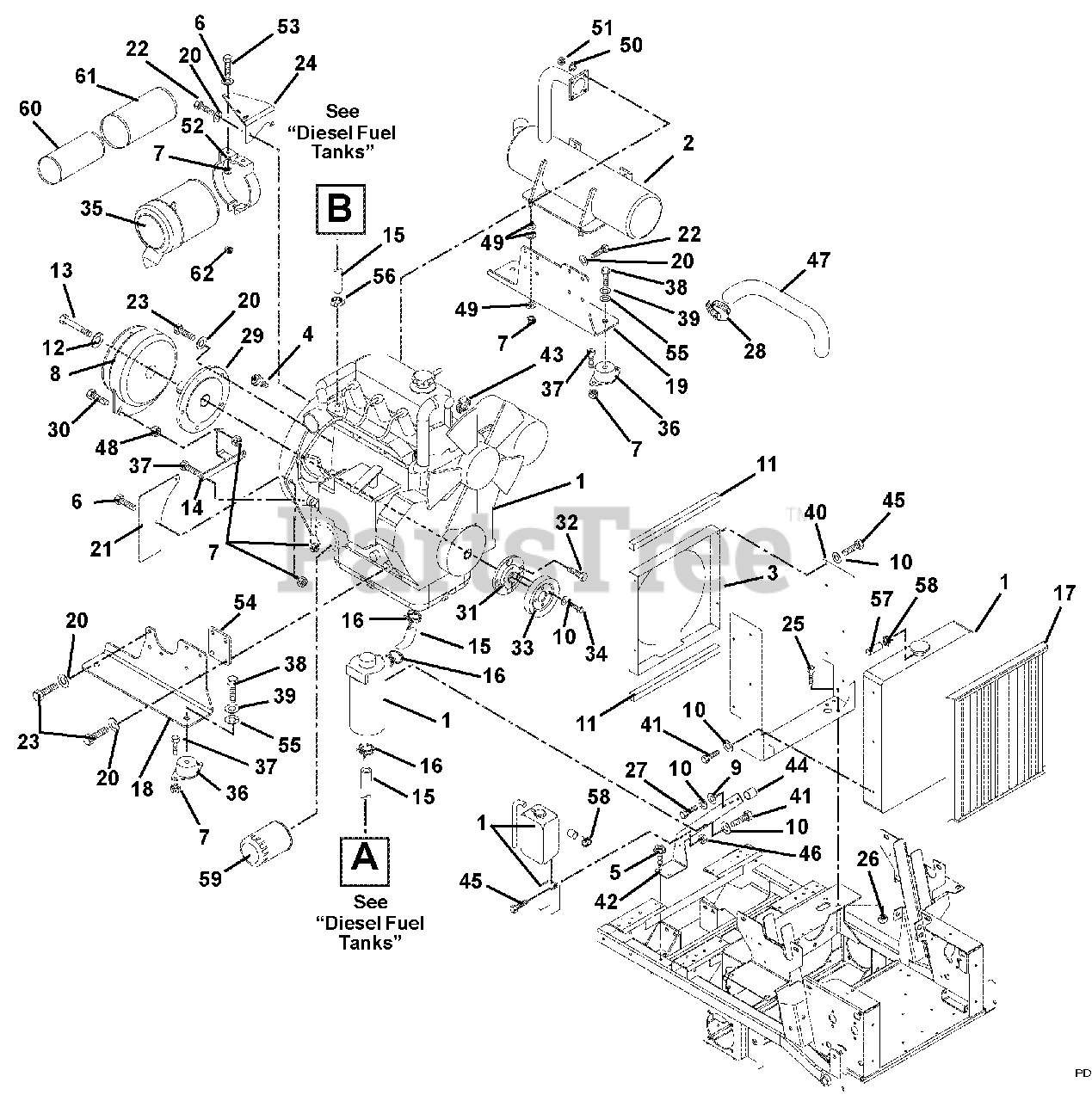

Engine - Diesel Parts Diagram

  • Title

1

Gravely 08270300

ENGINE, 27HP DIESEL (DAIHATSU)

Note: (Daihatsu) (316)

$

$

Not available

Gravely 08267100

ENGINE, 31HP DIESEL (DAIHATSU)

Note: (Daihatsu) (317)

$

$

Not available

2

Gravely 09297800

MUFFLER

Note: (316)

$647.99

$

Usually ships in 4-12 days

0

Gravely 09265900

MUFFLER

Note: (317)

$

$

Not available

3

Gravely 09266851

WMT, RADIATOR SHROUD

$74.99

$

Usually ships in 4-12 days

0

4

Gravely 09263300

SENDER, TEMPERATURE

$60.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09266700

CLUTCH, ELECTRIC (WARNER)
(Superseded to 00389900)

$526.99

$

In Stock, only 1 left!

0

NS

Gravely 59205200

KIT,BRAKE POLE MODULE REPLACE

$

$

Not available

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

13

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$3.99

$

In Stock, Qty 7

0

14

Gravely 09264551

STABILIZER, CLUTCH

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

16

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 09265400

SCREEN, RADIATOR (DIESEL)

$152.99

$

Usually ships in 4-12 days

0

18

Gravely 09265251

MOUNT, ENGINE RH (DIESEL)

$

$

Not available

19

Gravely 09265351

MOUNT, ENGINE LH (DIESEL)

$88.99

$

Usually ships in 4-12 days

0

20

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09273851

GUARD, FLYWHEEL

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 09295051

BRKT, AIR CLEANER - BLACK

$88.99

$

Usually ships in 4-12 days

0

25

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05979200

BLT-HEX M6-1.00X45 YWZC

$

$

Not available

28

Gravely 06900005

CLAMP, HOSE #32 (1.56/2.50)
(Superseded to 06934700)

$4.99

$

Usually ships in 4-12 days

0

29

Gravely 09295300

SHAFT, STUB (BRIGGS-DIESEL)
(Superseded to 00447200)

Note: (317)

$

$

Not available

30

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

31

Gravely 09265600

ADAPTER, SHEAVE (DIESEL)

$102.99

$

Usually ships in 4-12 days

0

32

Gravely 05978700

BLT, FSCHS M8-1.25X25

$

$

Not available

33

Gravely 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

34

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$190.99

$

Usually ships in 4-12 days

0

36

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$28.99

$

Usually ships in 4-12 days

0

37

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$4.99

$

In Stock, only 2 left!

0

39

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 09265851

WMT, RADIATOR MOUNTING BKRT

$96.99

$

Usually ships in 4-12 days

0

41

Gravely 05975900

BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.99

$

In Stock, only 2 left!

0

42

Gravely 09278651

BRKT, OVERFLOW MOUNTING - BLK

$62.99

$

Usually ships in 4-12 days

0

43

Gravely 06922200

CLAMP-HOSE 1.50X.81X1.42

$6.99

$

Usually ships in 4-12 days

0

44

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

45

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 09295400

HOSE, AIR CLEANER

Note: (316)

$

$

Not available

Gravely 00172600

HOSE, AIR CLEANER

Note: (317)

$

$

Not available

48

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

49

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

50

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

51

Gravely 06538600

NUT-HEX M8-1.25 YWZC

$2.99

$

Usually ships in 4-12 days

0

52

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$93.99

$

Usually ships in 4-12 days

0

53

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

54

Gravely 09277251

SPACER, ENGINE MTG (DIESEL)

$

$

Not available

55

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

56

Gravely 06948200

CLAMP, HOSE, IDEAL 6202 SIZE 4

$

$

Not available

57

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

58

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

59

Gravely 21539000

FILTER, OIL

$

$

Not available

60

Gravely 21536900

ELEMENT, INNER SAFETY

$30.99

$

In Stock, Qty 9

0

61

Gravely 21537000

ELEMENT, OUTER PRIMARY

$28.99

$

In Stock, Qty 20+

0

62

Gravely 07012700

FTG,LUBE 45 DEG

$5.49

$

In Stock, only 2 left!

0
