992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 002001 - 002499) Lift Valve And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

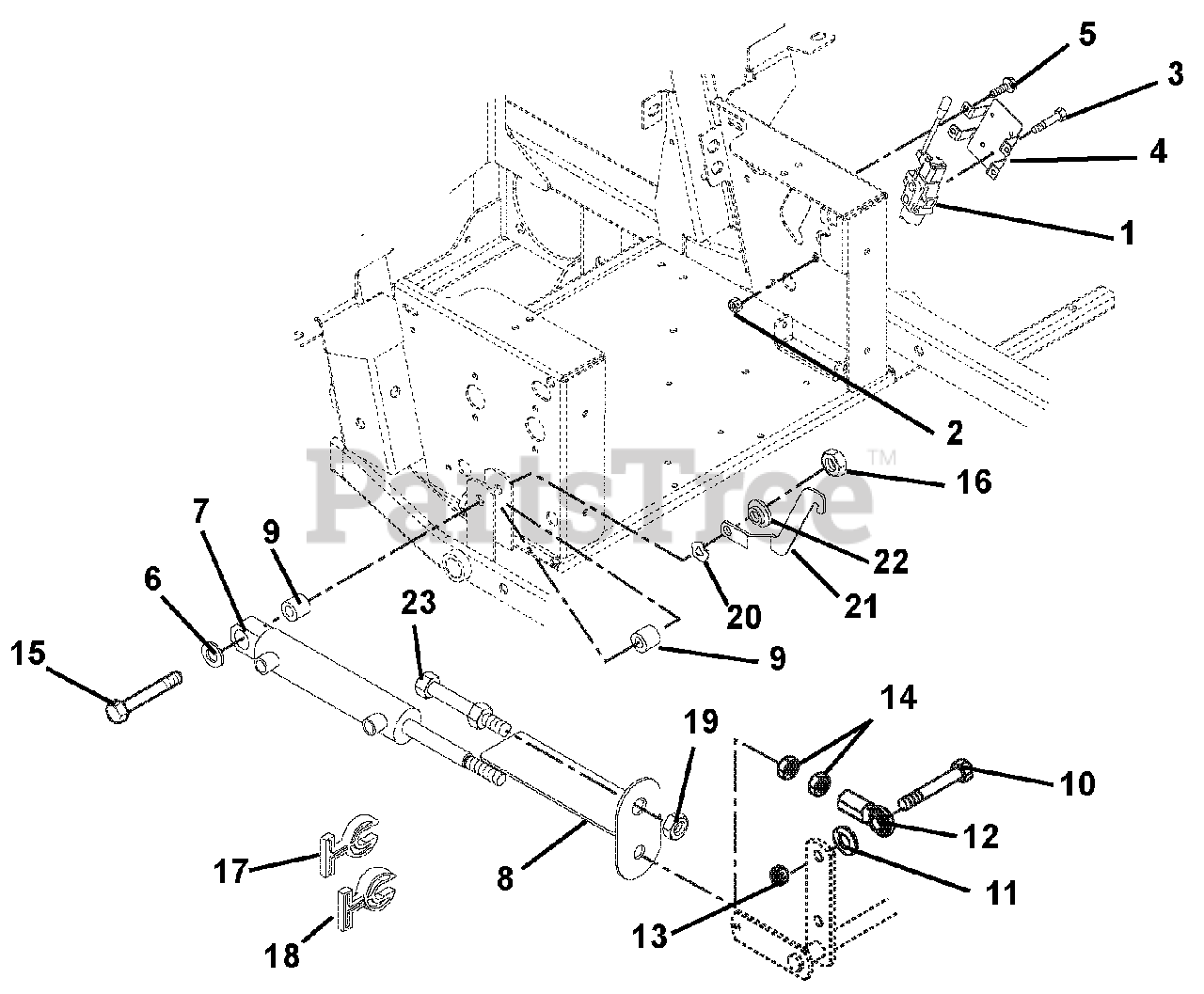

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09265100

Valve, Hydraulic
(Superseded to 03791700)

$

$

Not available

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09290251

Bracket, Valve Mounting
(Superseded to 03791851)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

6

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$6.49

$

In Stock, Qty 20+

0

7

Gravely 09264800

Cylinder-Lift
(Superseded to 04864700)

$537.99

$

Usually ships in 4-12 days

0

8

Gravely 00184551

Strap-Height of Cut Indicator

$76.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

Bushing .516 x 1.00 x 1.05

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

Rod End-Right Hand-Female .625

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06539600

Nut-Jam .625-18

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$6.49

$

In Stock, only 4 left!

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, Qty 18

0

18

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0

19

Gravely 06539900

Nut, Jam .75-16

$3.99

$

In Stock, only 2 left!

0

20

Gravely 09252000

Washer, Wave .076 x 1.12 x .08

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 09293200

Latch, Floor Board

$

$

Not available

22

Gravely 05532100

Bushing-Flange .515 x .75 x .275 x 1.12

$

$

Not available

23

Gravely 09260800

Post

$

$

Not available
