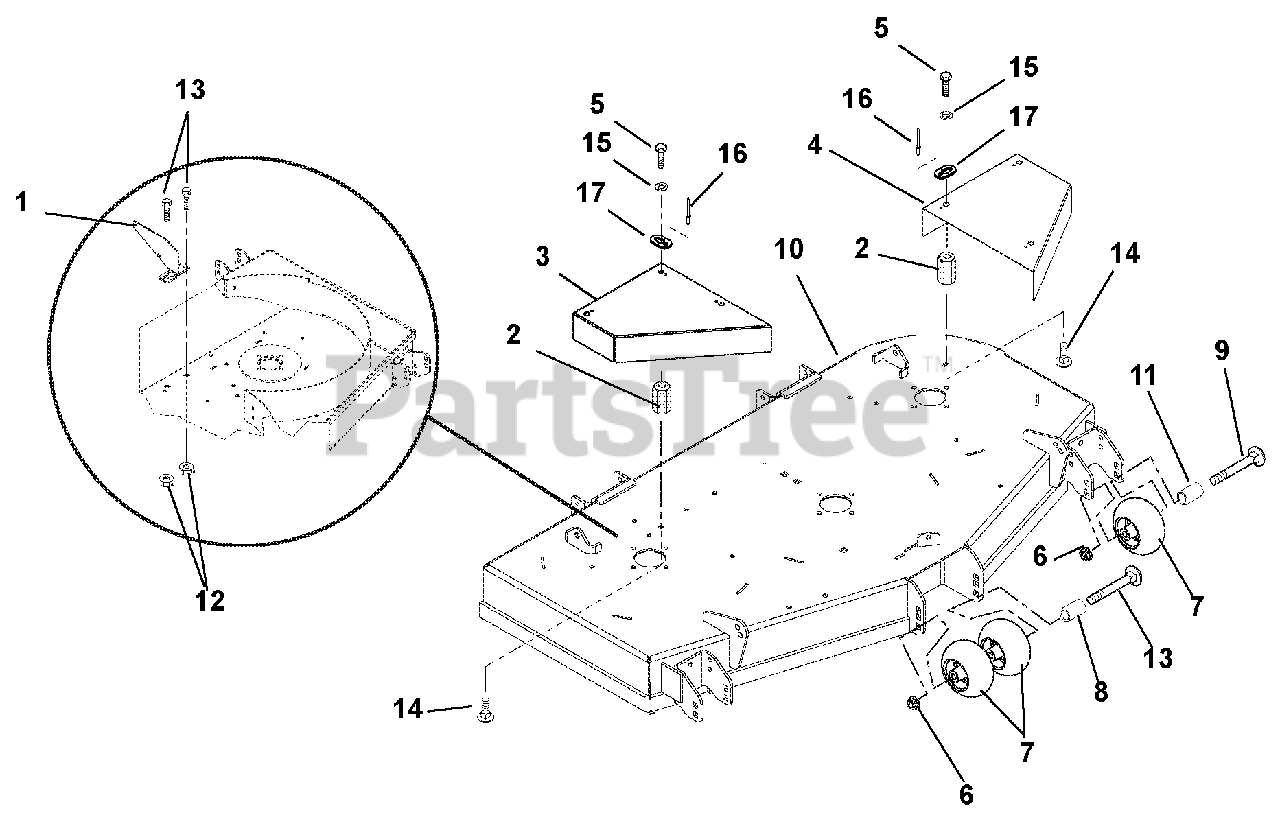

992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00502453

REAR DISCH DEFLECT BFL WMT-RED

$41.99

$

Usually ships in 4-12 days

0

2

Gravely 07000109

NUT-COUPLING .31-18/.38-16 X 3

$11.99

$

Usually ships in 4-12 days

0

3

Gravely 04163651

GUARD-52" RH SPINDLE SHEAVE

Note: (922322)

$

$

Not available

Gravely 04163451

GUARD-60" RH SPINDLE SHEAVE

Note: (922316, 317)

$

$

Not available

Gravely 04163851

GUARD-72" RH SPINDLE SHEAVE

Note: (922321)

$

$

Not available

4

Gravely 04163751

GUARD-52" LH SPINDLE SHEAVE

Note: (922322)

$

$

Not available

Gravely 04163551

GUARD-60" LH SPINDLE SHEAVE

Note: (922316, 317)

$

$

Not available

Gravely 04163951

GUARD-72" LH SPINDLE SHEAVE

Note: (922321)

$

$

Not available

5

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$14.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

$23.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

10

Gravely 00483553

XDZ52" REAR DISCH DECK WMT-RED

Note: (922322)

$1075.99

$

Usually ships in 4-12 days

0

Gravely 00481953

XDZ60" REAR DISCH DECK WMT-RED

Note: (922316, 317)

$1219.99

$

Usually ships in 4-12 days

0

Gravely 00583053

72"XDZ REAR DISCH DECK WMT-RED

Note: (922321)

$

$

Not available

11

Gravely 00473700

SPACER, .510X.625X3.35

$20.99

$

In Stock, Qty 20+

0

12

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$5.49

$

In Stock, Qty 20+

0

15

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (IFI 114 GR. 30) Actual Grip

$2.49

$

In Stock, Qty 20+

0

17

Gravely 04183000

KEEPER, BOLT

$7.99

$

Usually ships in 4-12 days

0
