992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

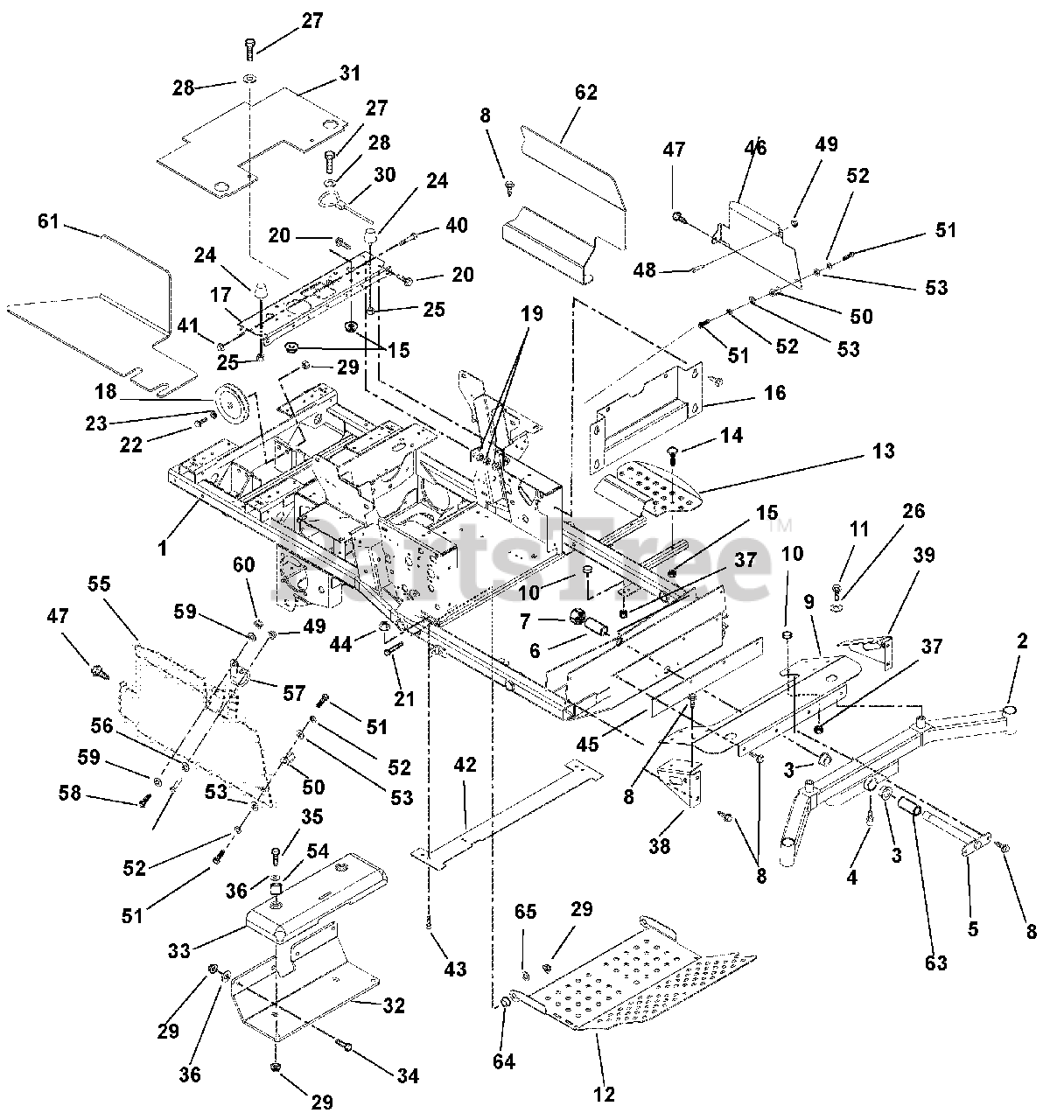

Frame Parts Diagram

  • Title

1

Gravely 00443253

WLDMT, FRAME

$

$

Not available

2

Gravely 00978153

WMT, FRONT AXLE

$727.99

$

Usually ships in 4-12 days

0

3

Gravely 05500914

BUSH, FLG 1.25X1.50X1.00X.200

$23.99

$

In Stock, Qty 10

0

4

Gravely 07012700

FTG,LUBE 45 DEG

$5.49

$

In Stock, only 2 left!

0

5

Gravely 09232000

PIN - AXLE

$72.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 1 left!

0

8

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 03998953

AXLE COVER

$149.99

$

Usually ships in 4-12 days

0

10

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

11

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$4.99

$

In Stock, only 2 left!

0

12

Gravely 04180451

PANEL-INSPECTION

$

$

Not available

13

Gravely 09231251

STEP, INGRESS (BLACK)

$

$

Not available

14

Gravely 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.99

$

In Stock, Qty 13

0

15

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 00483153

PLATE - KICK

$83.99

$

Usually ships in 4-12 days

0

17

Gravely 04044953

BRACE, SEAT CROSS WITH LATCH

$

$

Not available

18

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$115.99

$

In Stock, Qty 5

0

19

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$4.99

$

In Stock, Qty 19

0

22

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$4.99

$

In Stock, only 1 left!

0

23

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

In Stock, only 2 left!

0

25

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06400829

WSHR-FLT .640X1.75X.250

$5.49

$

In Stock, Qty 20+

0

27

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$5.49

$

In Stock, Qty 12

0

29

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 06900010

CABLE, SEAT PROP.

$54.99

$

Usually ships in 4-12 days

0

31

Gravely 00436900

GUARD - GRASS

$50.99

$

Usually ships in 4-12 days

0

32

Gravely 00475351

BRACKET - WEIGHT - 252

Note: (992316, 317, 321, 322)

$235.99

$

Usually ships in 4-12 days

0

Gravely 04305851

BRACKET-SUPPORT ARM - FRAME

Note: (992324)

$

$

Not available

33

Gravely 00172000

WEIGHT, CAST IRON

$318.99

$

Usually ships in 4-12 days

0

34

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$7.49

$

In Stock, Qty 9

0

36

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 03972253

WMT - RH AXLE COVER SUPPORT

$90.99

$

Usually ships in 4-12 days

0

39

Gravely 03972353

WMT - LH AXLE COVER SUPPORT

$90.99

$

Usually ships in 4-12 days

0

40

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 9

0

41

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 04182653

PLATE-SWITCH

$

$

Not available

43

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

44

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 03999051

PLATE, BACKER

$18.99

$

Usually ships in 4-12 days

0

46

Gravely 04327251

BRKT, GUARD LH SIDE

Note: (992324)

$

$

Not available

47

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (992324)

$2.49

$

In Stock, Qty 20+

0

48

Gravely 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

Note: (992324)

$2.99

$

In Stock, Qty 20+

0

49

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

Note: (992324)

$2.49

$

In Stock, Qty 20+

0

50

Gravely 07001630

NUT, .31-18X2.25 LG COUPLING

Note: (992324)

$34.99

$

Usually ships in 4-12 days

0

51

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (992324)

$2.49

$

In Stock, Qty 20+

0

52

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (992324)

$1.99

$

In Stock, Qty 20+

0

53

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (992324)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 04318953

SPACER, .563 X 1.25 X.969

Note: (992324)

$

$

Not available

55

Gravely 04339651

BRKT, GUARD RH SIDE

Note: (992324)

$

$

Not available

56

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

Note: (992324)

$1.99

$

In Stock, Qty 20+

0

57

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

Note: (992324)

$15.99

$

Usually ships in 4-12 days

0

58

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (992324)

$2.49

$

In Stock, Qty 20+

0

59

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (992324)

$2.49

$

In Stock, Qty 20+

0

60

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (992324)

$1.99

$

In Stock, Qty 20+

0

61

Gravely 04280851

GUARD-DIESEL-RH

Note: (992324)

$

$

Not available

62

Gravely 04280951

GUARD-DIESEL-LH

Note: (992324)

$

$

Not available

63

Gravely 00978200

SPCR, 1.25ODX1.0IDX3.63

Note: (992324)

$27.99

$

In Stock, only 4 left!

0

64

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

65

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0
