992318 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000500 - 000999) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

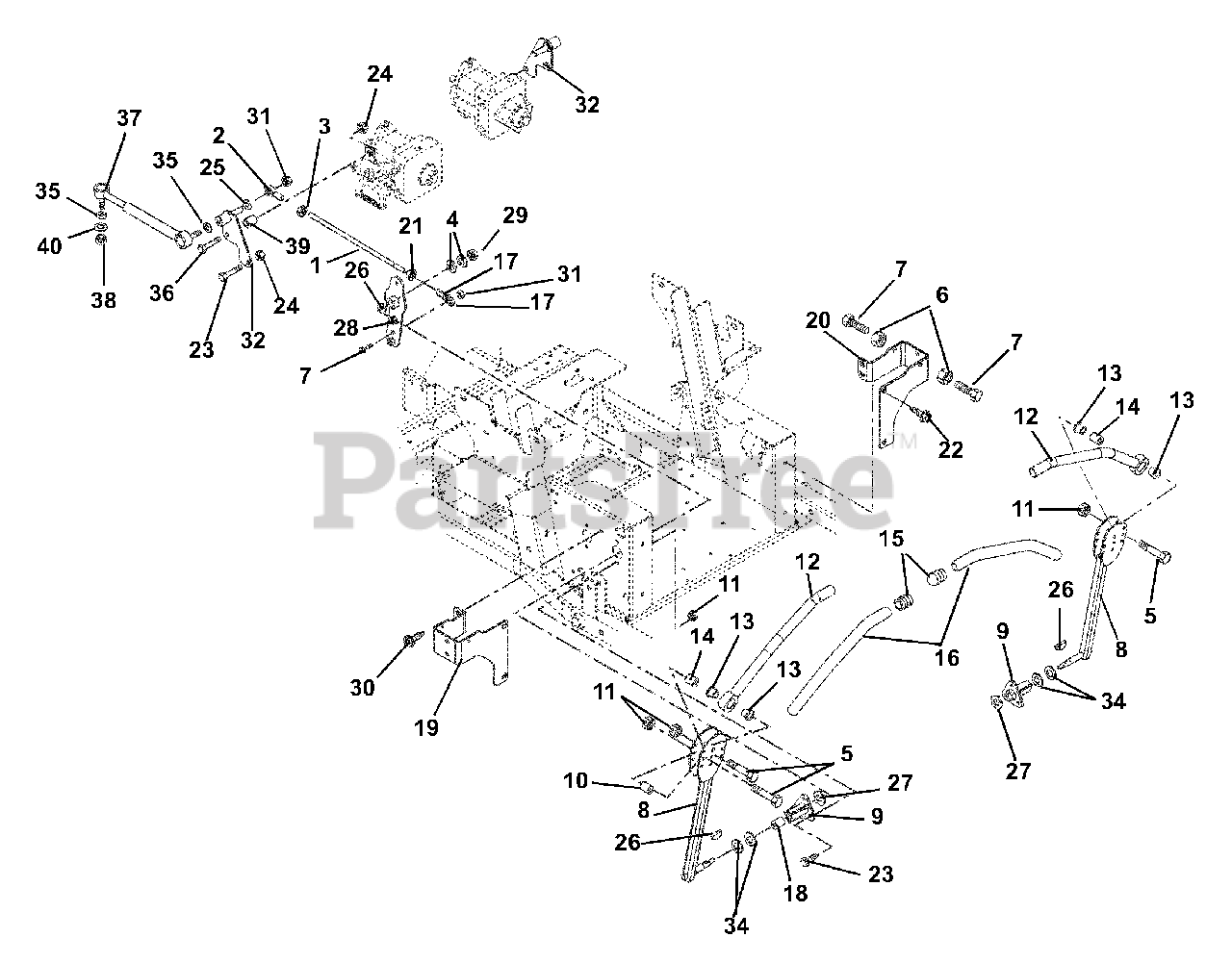

Controls Parts Diagram

  • Title

1

Gravely 03360901

ROD, TIE

$

$

Not available

2

Gravely 044753

ROD END, .38 RH
(Superseded to 03563100)

$18.99

$

In Stock, only 1 left!

0

3

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

6

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 09288651

CONTROL ARM WELDMENT - BLACK

$200.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

BUSHING, FLANGE

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 09235700

ECCENTRIC

$5.99

$

In Stock, only 3 left!

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09235500

HANDLE WLDMT LH

$111.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$99.99

$

In Stock, only 2 left!

0

13

Gravely 035172

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05525200)

$6.99

$

In Stock, only 2 left!

0

14

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 09211400

CAPLUG - HANDLEBAR

$3.99

$

In Stock, Qty 17

0

16

Gravely 09246800

GRIP - HANDLEBAR

$14.99

$

In Stock, Qty 20+

0

17

Gravely 03668700

END, ROD-.38 LH

$16.99

$

Usually ships in 4-12 days

0

18

Gravely 05436800

BSHG .625X.750X.500

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 09289151

RH STOP BRACKET - BLACK

$77.99

$

Usually ships in 4-12 days

0

20

Gravely 09289251

LH STOP BRACKET - BLACK

$45.99

$

Usually ships in 4-12 days

0

21

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

27

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 00176400

WMT, PIVOT ARM

$170.99

$

Usually ships in 4-12 days

0

29

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 00180200

WMT, RTN/DAMPER/ROD END

$96.99

$

Usually ships in 4-12 days

0

33

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

37

Gravely 01589300

DAMPENER

$121.99

$

Usually ships in 4-12 days

0

38

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

40

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0
