992318 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000500 - 000999) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

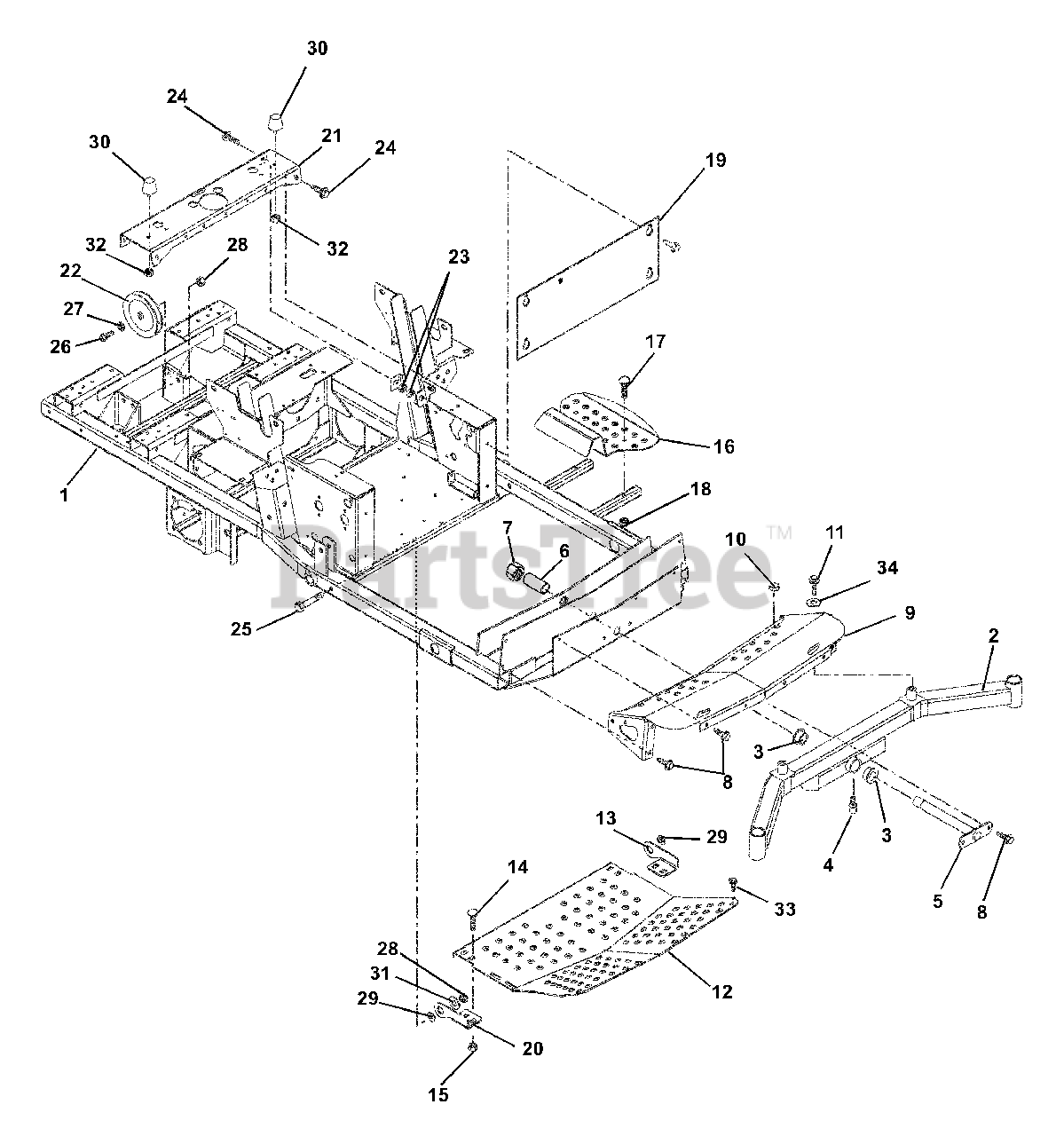

Frame Parts Diagram

  • Title

1

Gravely 09294951

WMT, LIQUID COOLED FRAME - BLK

$

$

Not available

2

Gravely 09263753

WMT, FRONT AXLE

$826.99

$

Usually ships in 4-12 days

0

3

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$12.99

$

In Stock, Qty 18

0

4

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

5

Gravely 09232000

PIN - AXLE

$72.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 1 left!

0

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 09278053

WMT, AXLE COVER

$

$

Not available

10

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 11

0

11

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$4.99

$

In Stock, only 2 left!

0

12

Gravely 09233353

PANEL - INSPECTION (RED)

$119.99

$

Usually ships in 4-12 days

0

13

Gravely 09267151

HINGE, FOOTBOARD LH

$

$

Not available

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 09231251

STEP, INGRESS (BLACK)

$

$

Not available

17

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.99

$

In Stock, Qty 13

0

18

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09234053

PLATE - KICK (RED)
(Superseded to 00483153)

$83.99

$

Usually ships in 4-12 days

0

20

Gravely 09267251

HINGE, FOOTBOARD RH

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 09275051

CHANNEL, CROSS (BLACK)

$67.99

$

Usually ships in 4-12 days

0

22

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$115.99

$

In Stock, Qty 5

0

23

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

In Stock, only 2 left!

0

24

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$4.99

$

In Stock, Qty 19

0

26

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$4.99

$

In Stock, only 1 left!

0

27

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

30

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

In Stock, only 2 left!

0

31

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 06534600

NUT-SPNLK-FLG .312-24 YWZC

$

$

Not available

33

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (318, 319)

$4.99

$

In Stock, Qty 18

0

34

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$4.99

$

Usually ships in 4-12 days

0
