992319 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 000500 - 000999) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

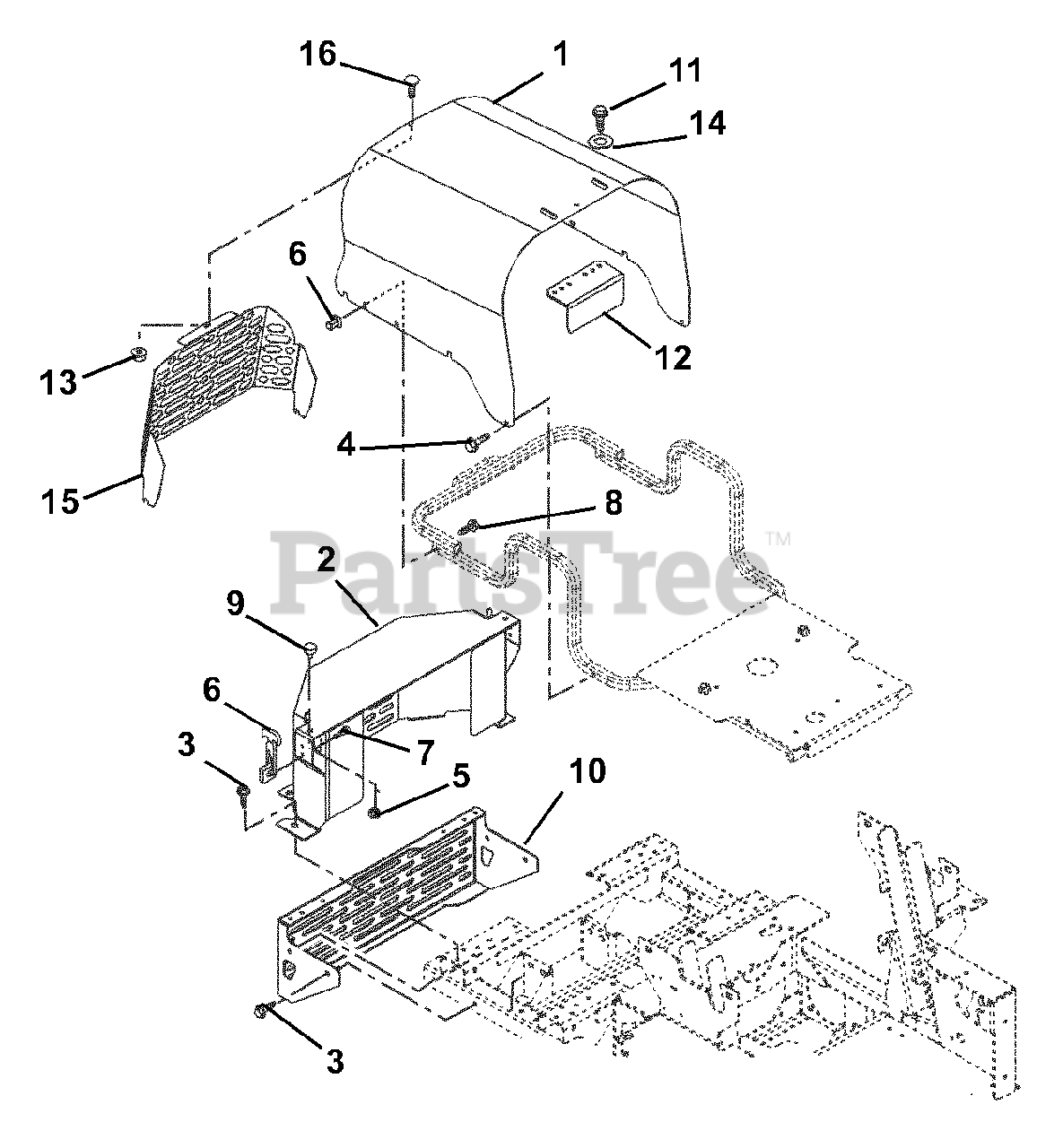

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09278853

Hood

$435.99

$

Usually ships in 4-12 days

0

2

Gravely 00165251

Diesel Belt Guard

Note: (060, 061, 318, 319)

$171.99

$

Usually ships in 4-12 days

0

2

Gravely 09273551

Weldment, Belt Guard

Note: (058, 059)

$53.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0

5

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09079500

Latch, Rubber

$35.99

$

In Stock, Qty 8

0

7

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

Button, Bumper

$12.99

$

In Stock, only 3 left!

0

10

Gravely 09269451

Bumper, Rear

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00160353

Guard, Radiator Cap

$

$

Not available

13

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 09281151

Guard, Hood

$271.99

$

Usually ships in 4-12 days

0

16

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0
