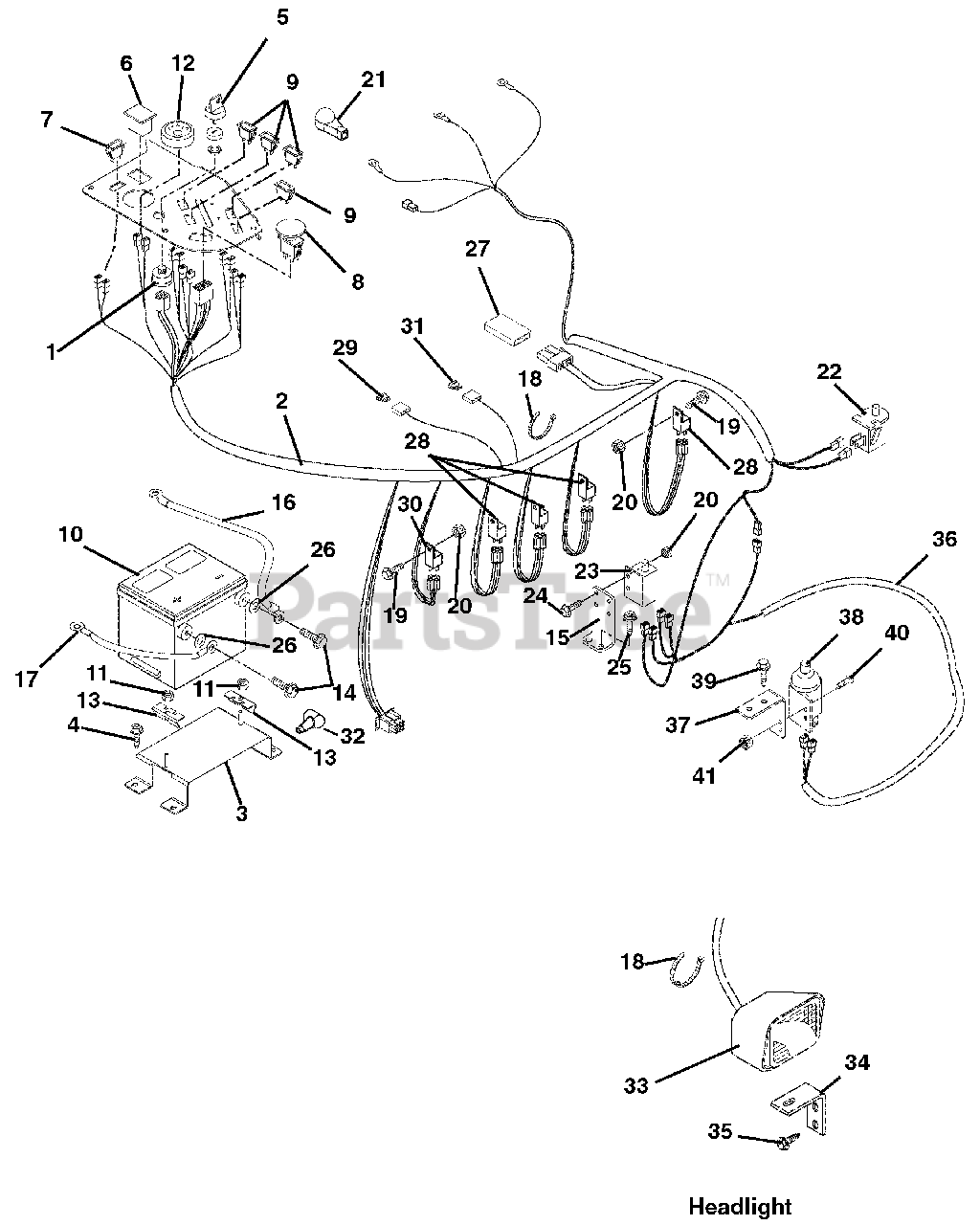

992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 005000 & Above) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

Electrical System Parts Diagram

  • Title

1

Ariens 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$47.99

$

In Stock, Qty 7

0

2

Ariens 03286500

HARNESS-MZ HORIZ L/C DIESEL

$355.99

$

Usually ships in 4-12 days

0

3

Ariens 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 13

0

5

Ariens 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, only 3 left!

0

5

Ariens 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

6

Ariens 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 5

0

7

Ariens 08973300

SWITCH, 2 POLE/ROCKER

$7.49

$

In Stock, Qty 7

0

8

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 9

0

9

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, only 1 left!

0

10

Ariens 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

13

Ariens 09266600

BRKT, BATTERY HOLD-DOWN

$18.99

$

Usually ships in 4-12 days

0

14

Ariens 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Ariens 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

16

Ariens 03287000

CABLE - POS BATT W/BOOTS 4X48

$32.99

$

Usually ships in 4-12 days

0

17

Ariens 09278100

CABLE, NEGATIVE BATTERY 49.00

$38.99

$

Usually ships in 4-12 days

0

18

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 00678000

BOOT, TERMINAL, RED

$

$

Not available

22

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.) (Included with Seat)

$9.99

$

In Stock, only 2 left!

0

23

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 4 left!

0

24

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, only 1 left!

0

28

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

Usually ships in 4-12 days

0

29

Ariens 21542000

FUSE, ATO 30 AMP
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

30

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

31

Ariens 21542200

FUSE, ATO 60 AMP
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

32

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

33

Ariens 02463600

HEADLIGHT

$85.99

$

In Stock, only 1 left!

0

34

Ariens 09287551

BRACKET, HEADLIGHT MTG

$18.99

$

Usually ships in 4-12 days

0

35

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 6

0

36

Ariens 09281000

HARNESS, WIRE ADAPTER CE

$54.99

$

Usually ships in 4-12 days

0

37

Ariens 09251253

MOUNT - SWITCH

$40.99

$

Usually ships in 4-12 days

0

38

Ariens 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$23.99

$

In Stock, only 1 left!

0

39

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
