992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 005000 & Above) Hose Routing Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

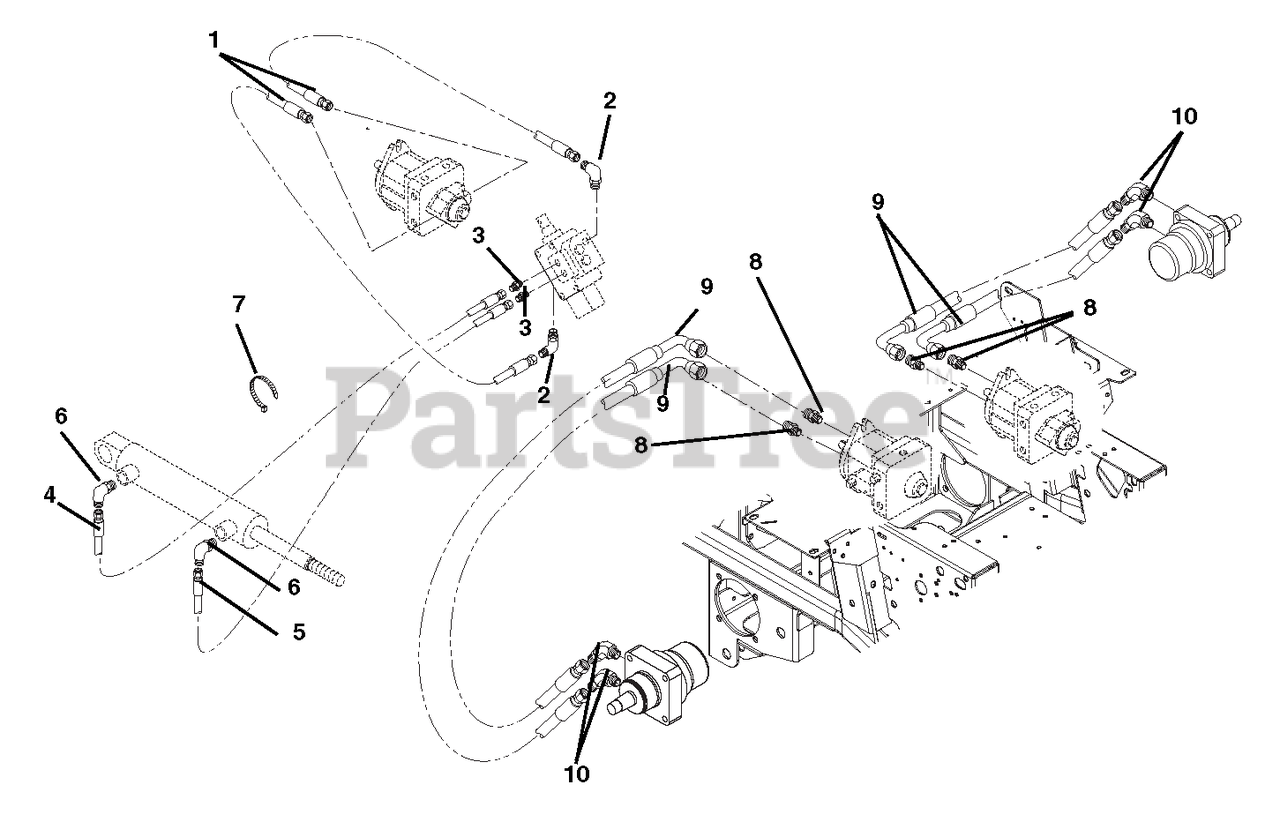

Hose Routing Parts Diagram

  • Title

1

Ariens 09275500

HOSE,HYD.25-22-2K F04F9-F06FO

$118.99

$

Usually ships in 4-12 days

0

2

Ariens 07061600

FTG, HYD ELBOW M6F-M8O

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 07063800

FITTING, HYD (4-6 F5OLO)

Note: (4-6F5OLO)

$15.99

$

Usually ships in 4-12 days

0

4

Ariens 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

$140.99

$

Usually ships in 4-12 days

0

5

Ariens 09275600

HOSE,HYD .25-47-2K F04F0-F04F4

$148.99

$

Usually ships in 4-12 days

0

6

Ariens 07063900

FITTING, HYD (4 C5OLO)

Note: (4 C5OLO)

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

8

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

9

Ariens 09269600

HOSE,HYD .50-17-2K F08F0-F08F9

$158.99

$

Usually ships in 4-12 days

0

10

Ariens 07063500

FITTING, HYD (8-10 V5OLO)

$40.99

$

In Stock, only 1 left!

0
