992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 005000 & Above) Hydrostatic Pumps And Idler Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

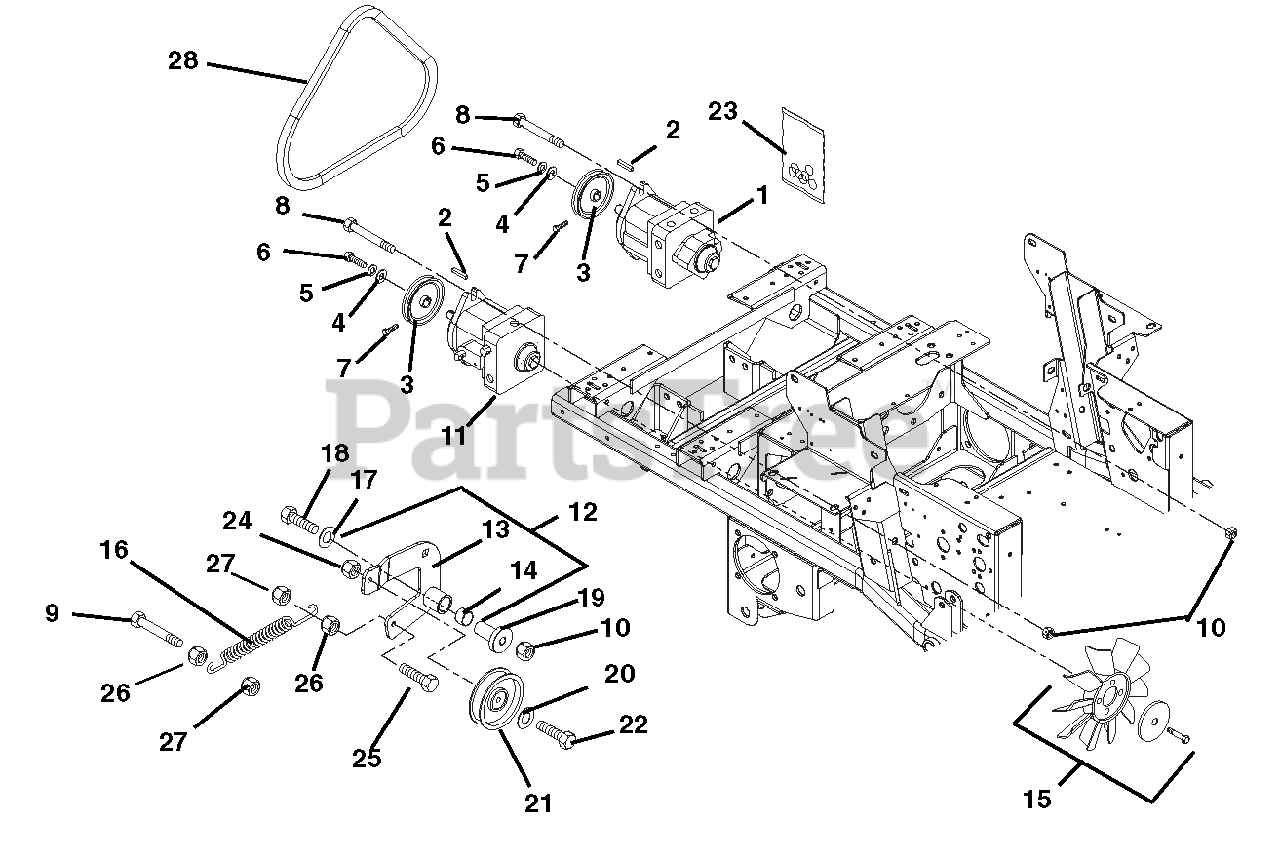

Hydrostatic Pumps And Idler Parts Diagram

  • Title

1

Ariens 00583100

PUMP - HYDRAULIC RTN W/AUX

$1227.99

$

Usually ships in 4-12 days

0

2

Ariens 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 8

0

3

Ariens 07300037

SHEAVE - POLY-V .671 X 4.125

$92.99

$

In Stock, only 1 left!

0

4

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

6

Ariens 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

7

Ariens 05900127

SCR-SKH .25-20X.50 YZ EP80

$3.99

$

In Stock, only 2 left!

0

8

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

9

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 00583300

PUMP-HYD RTN THRU SHAFT F/FAN

$1055.99

$

In Stock, only 1 left!

0

12

Ariens 09264300

ASSEMBLY, IDLER ARM

Note: (Includes 13 & 14)

$171.99

$

Usually ships in 4-12 days

0

13

Ariens 09264251

WMT, IDLER ARM

$86.99

$

Usually ships in 4-12 days

0

14

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

15

Ariens 09420500

FAN KIT, HYDROGEAR 70618

$26.99

$

Usually ships in 4-12 days

0

16

Ariens 08321200

SG-TENS .135X.69X5.75 WLD 150

$22.99

$

Usually ships in 4-12 days

0

17

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, Qty 11

0

19

Ariens 07000031

BEARING, PEDESTAL

$84.99

$

In Stock, Qty 6

0

20

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

22

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

23

Ariens 59203700

KIT, PUMP SEAL (BDP-21L)

Note: (BDP-21A)(One kit required for each pump)

$92.99

$

Usually ships in 4-12 days

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

26

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 07242800

POLY V-BELT, K-5 RIBS

$40.99

$

In Stock, only 4 left!

0
