992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 000101 - 002000) Engine - Diesel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

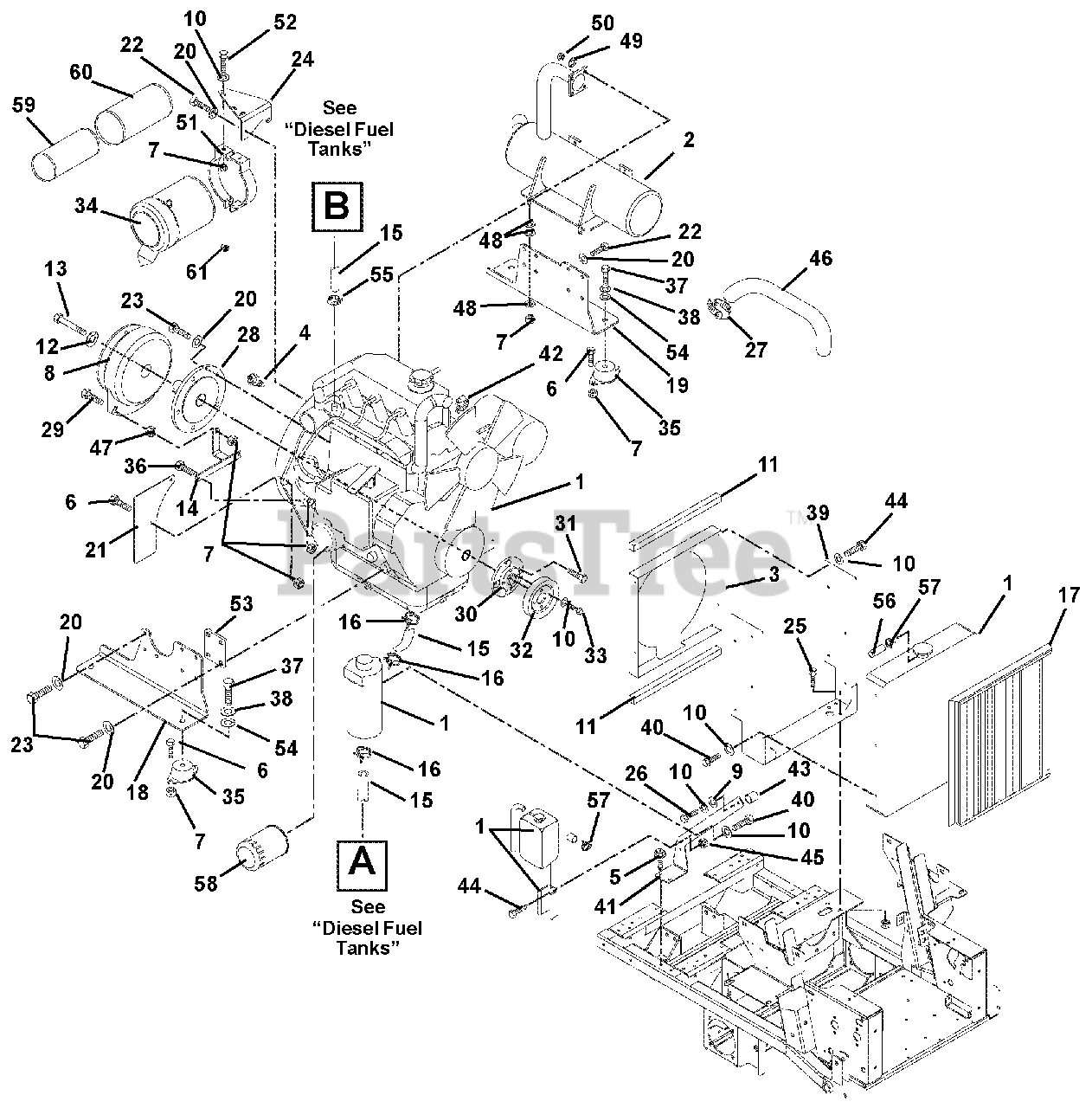

Engine - Diesel Parts Diagram

  • Title

1

Gravely 08270300

Engine, 27HP Diesel (Daihatsu) (316, 322)

Note: (Daihatsu) (316, 322)

$

$

Not available

Gravely 08267100

Engine, 31HP Diesel (Daihatsu) (317, 321)

Note: (Daihatsu) (317, 321)

$

$

Not available

2

Gravely 09297800

Muffler (316, 322)

Note: (316, 322)

$619.99

$

Usually ships in 4-12 days

0

Gravely 09265900

Muffler (317, 321)

Note: (317, 321)

$573.99

$

Usually ships in 4-12 days

0

3

Gravely 09266851

Weldment, Radiator Shroud

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 09263300

Sender, Temperature

$57.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00389900

Clutch, Electric with HI Temp Grease

$504.99

$

Usually ships in 4-12 days

0

NS

Gravely 59205200

Kit, Break Pole Module Replacement‘

$

$

Not available

9

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

11

Gravely 00929000

Seal, Trim-LOK Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

13

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.99

$

In Stock, only 2 left!

0

14

Gravely 09264551

Stabilizer, Clutch

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 00922600

Gas Line, Bulk .31" ID

$

$

Not available

16

Gravely 06947900

Hose, Clamp

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 09265400

Screen, Radiator

$145.99

$

Usually ships in 4-12 days

0

18

Gravely 09265251

Mount, Engine Right Hand

$

$

Not available

19

Gravely 09265351

Mount, Engine Left Hand

$84.99

$

Usually ships in 4-12 days

0

20

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09273851

Guard, Flywheel

$7.49

$

Usually ships in 4-12 days

0

22

Gravely 05973300

Bolt, Hex M8-1.25 x 20
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 05964900

Bolt, Hex M8 x 1.25 x 25 Grade 8

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 09295051

Bracket, Air Cleaner

$84.99

$

In Stock, only 1 left!

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05979200

Bolt, Hex M6-1.00 x 45

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06900005

Clamp, 2.50" Dia. Hose
(Superseded to 06934700)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 09295300

Weldment, Stub Shaft
(Superseded to 00447200)

$

$

Not available

29

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

30

Gravely 09265600

Adapter, Sheave

$98.99

$

Usually ships in 4-12 days

0

31

Gravely 05978700

Bolt, M8-1.25 x 25

$

$

Not available

32

Gravely 07328100

Sheave, Poly-V 1.0 x 3.25

$

$

Not available

33

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

34

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

35

Gravely 05034800

Mount, Engine

$26.99

$

Usually ships in 4-12 days

0

36

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

37

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.99

$

In Stock, only 2 left!

0

38

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

39

Gravely 09265851

Bracket, Radiator Mounting

$92.99

$

Usually ships in 4-12 days

0

40

Gravely 05975900

Bolt, Hex M6-1 x 16
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

41

Gravely 09278651

Bracket, Overflow Mounting

$60.99

$

Usually ships in 4-12 days

0

42

Gravely 06922200

Clamp, Hose 1.50 x .81 x 1.42

$6.49

$

Usually ships in 4-12 days

0

43

Gravely 09235400

Spacer .328 x .76 x 1.01

$21.99

$

Usually ships in 4-12 days

0

44

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

45

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

46

Gravely 09295400

Hose, Air Cleaner (316, 322)

Note: (316, 322)

$

$

Not available

Gravely 00172600

Hose, Air Cleaner (317, 321)

Note: (317, 321)

$

$

Not available

47

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

48

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06538600

Nut, Hex M8-1.25

$2.49

$

Usually ships in 4-12 days

0

51

Gravely 09257600

Bracket, Air Cleaner Mount

$89.99

$

Usually ships in 4-12 days

0

52

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

53

Gravely 09277251

Spacer, Engine Mounting

$

$

Not available

54

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

55

Gravely 06948200

Hose Clamp

$

$

Not available

56

Gravely 00924300

Gas Line, Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 7

0

58

Gravely 21539000

Oil Filter

$

$

Not available

59

Gravely 21536900

Element, Inner Safety

$29.99

$

In Stock, only 4 left!

0

60

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

61

Gravely 07012700

Plug, Pipe .125-27

$4.99

$

Usually ships in 4-12 days

0
