992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 004500 - 004999) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

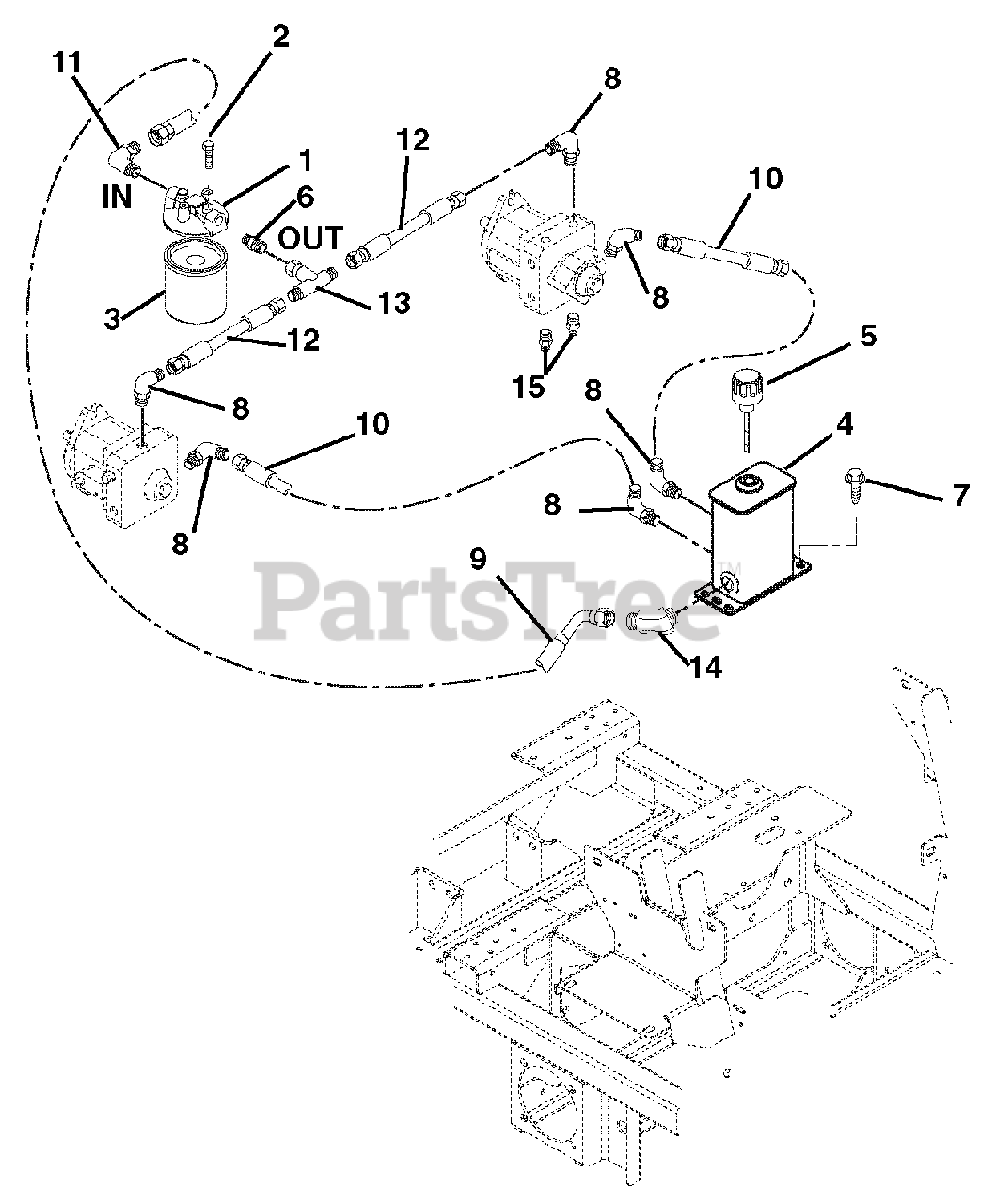

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5 Epoxy
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 09414200

Filter Element
(Superseded to 03931900)

$30.99

$

In Stock, Qty 10

0

4

Gravely 02985351

Tank, Hydraulic Formed 3-Port

$174.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Breather, Dipstick

$51.99

$

In Stock, only 1 left!

0

6

Gravely 07059900

Fitting, Hydraulic, Straight

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 00364600

Hose, Hydraulic Valve to Tank

$102.99

$

Usually ships in 4-12 days

0

10

Gravely 00364500

Hose, Hydraulic, 10-inch

$

$

Not available

11

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 00364400

Hose, Hydraulic .50, 5-Inch

$35.99

$

Usually ships in 4-12 days

0

13

Gravely 07069400

Fitting, Hydraulic Tee

$29.99

$

Usually ships in 4-12 days

0

14

Gravely 07066200

Fitting, Hydraulic 45 Degree

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 07063700

Fitting, Hydraulic (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available

*

Use Mobil 1 15W50 Extended Performance Synthetic Oil or Equivalent, p/n 00057100

Use Mobil 1 15W50 Extended Performance Synthetic Oil or Equivalent, p/n 00057100

$

$

Not available
