992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 004500 - 004999) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

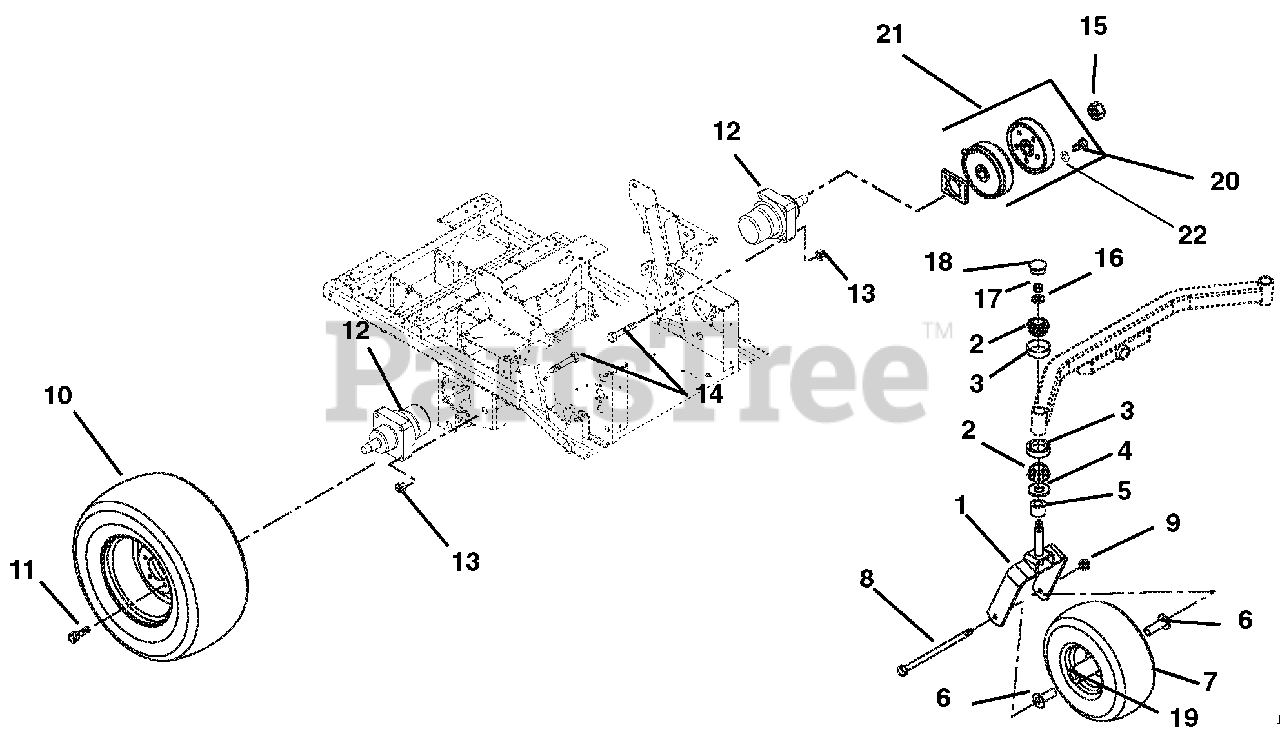

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

1

Gravely 00489853

Fork, Front
(Superseded to 59208500)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing, Cone w/ Grease
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$8.49

$

In Stock, Qty 18

0

6

Gravely 00675300

Spacer, Wheel

$9.49

$

In Stock, Qty 20+

0

7

Gravely 07100212

Wheel/Tire Assembly 15 x 6-6
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

Gravely 07100213

Tire, 15 x 6-6
(Superseded to 07100905)

$87.99

$

In Stock, only 2 left!

0

8

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$11.99

$

In Stock, Qty 16

0

9

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

10

Gravely 07100207

Tire/Wheel Assembly 24 x 11.50-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

Gravely 07100208

Tire, Turfmaster 24 x 11.50-12
(Superseded to 07101041)

$250.99

$

Usually ships in 4-12 days

0

11

Gravely 07000143

Bolt, Lug .50-20 x 1.38

$3.99

$

In Stock, Qty 20+

0

12

Gravely 03255000

Hydraulic Wheel Motor (Includes item 15)

Note: (Includes item 15)

$

$

Not available

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05953500

Bolt, Wheel Motor .50-13 x 2.75
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06541900

Nut , Lock Jam Patch (Included with 12)

Note: (Included with 12)

$33.99

$

In Stock, only 1 left!

0

16

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

17

Gravely 06536900

Nut, Jam Center Lock .75-16

$6.49

$

In Stock, Qty 12

0

18

Gravely 20655400

Cap, Dust

$10.99

$

In Stock, Qty 20+

0

19

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$25.99

$

In Stock, Qty 20+

0

20

Gravely 05981600

Bolt, Hex .31-18 x 1.5 Grade 8 EP30

$3.99

$

In Stock, Qty 6

0

21

Gravely 58904300

Kit, Parking Brake Service

$611.99

$

Usually ships in 4-12 days

0

22

Gravely 06308600

Washer, Lock .31 x .078 Reg.
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
