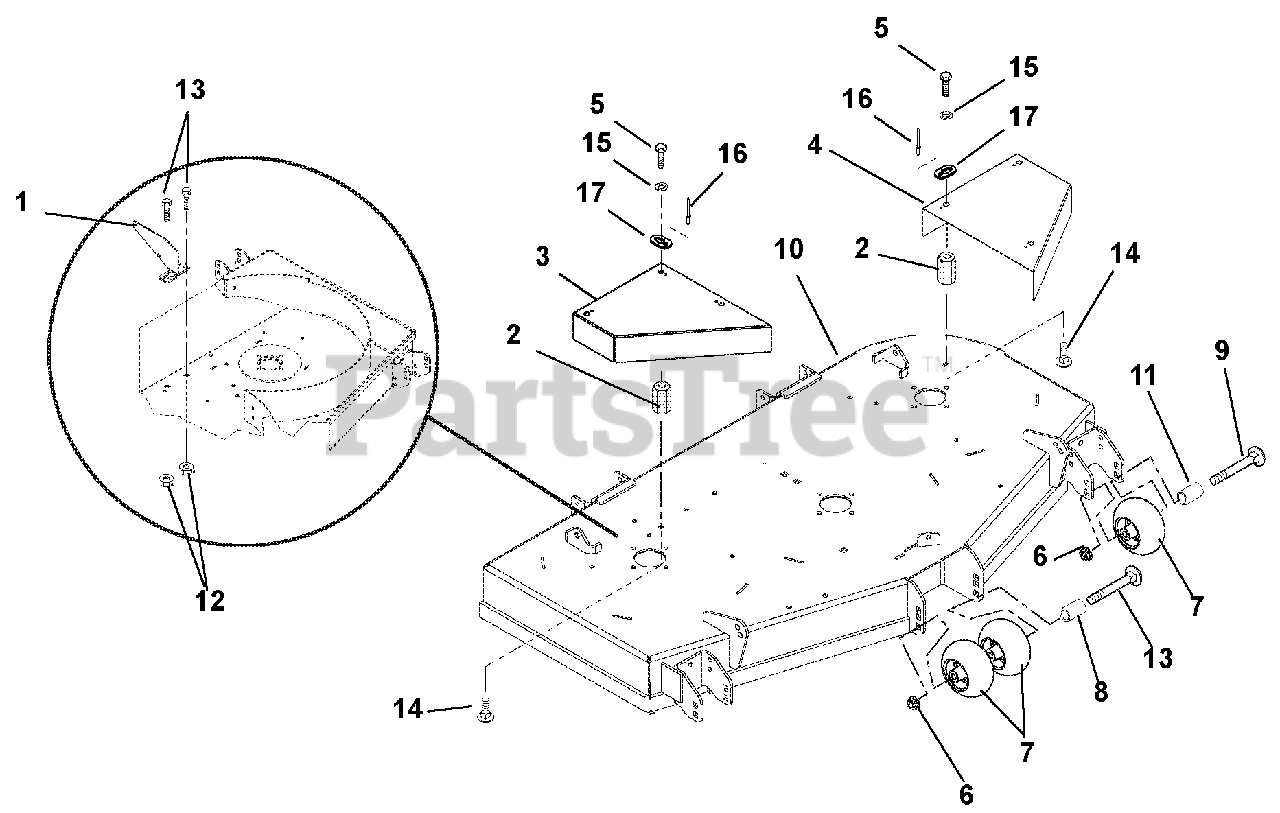

992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

Deck, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00502453

Rear Deflector Baffle

$40.99

$

Usually ships in 4-12 days

0

2

Gravely 07000109

Nut, Coupling, .31-18/.38-16 x 3.00

$11.99

$

Usually ships in 4-12 days

0

3

Gravely 04163651

Guard, 52-in. Right Hand Spindle Sheave (922322)

Note: (922322)

$

$

Not available

Gravely 04163451

Guard, 60-in. Right Hand Spindle Sheave (922316, 317)

Note: (922316, 317)

$

$

Not available

Gravely 04163851

Guard, 72-in. Right Hand Spindle Sheave (922321)

Note: (922321)

$

$

Not available

4

Gravely 04163751

Guard, 52-in. Left Hand Spindle Sheave (922322)

Note: (922322)

$

$

Not available

Gravely 04163551

Guard, 60-in. Left Hand Spindle Sheave (922316, 317)

Note: (922316, 317)

$

$

Not available

Gravely 04163951

Guard, 72-in. Left Hand Spindle Sheave (922321)

Note: (922321)

$

$

Not available

5

Gravely 07001625

Bolt, Hex .38-16 x 1.25 Grade 5 Captive

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

Anti-Scalp Wheel

$13.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

Spacer

$22.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

10

Gravely 00483553

52-in. Mower Deck (922322)

Note: (922322)

$1029.99

$

Usually ships in 4-12 days

0

Gravely 00481953

60-in. Mower Deck (922316, 317)

Note: (922316, 317)

$1166.99

$

Usually ships in 4-12 days

0

Gravely 00583053

72-in. Mower Deck (922321)

Note: (922321)

$

$

Not available

11

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

12

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06212000

Bolt, Round Head Square Neck, 3/8-16 x 1.00
(Superseded to 06200235)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 06200002

Bolt, Round Head Square Neck, .31-18 x .75 Loc-Tite®
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

15

Gravely 06308700

Washer, Lock External, .391 x .682 x .036

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06800028

Rivet, Pop, .187 YZ (IFI 114 GR. 30) Actual Grip
(Superseded to 06800140)

Note: (IFI 114 GR. 30) Actual Grip

$1.49

$

In Stock, only 3 left!

0

17

Gravely 04183000

Keeper, Bolt

$7.49

$

Usually ships in 4-12 days

0
