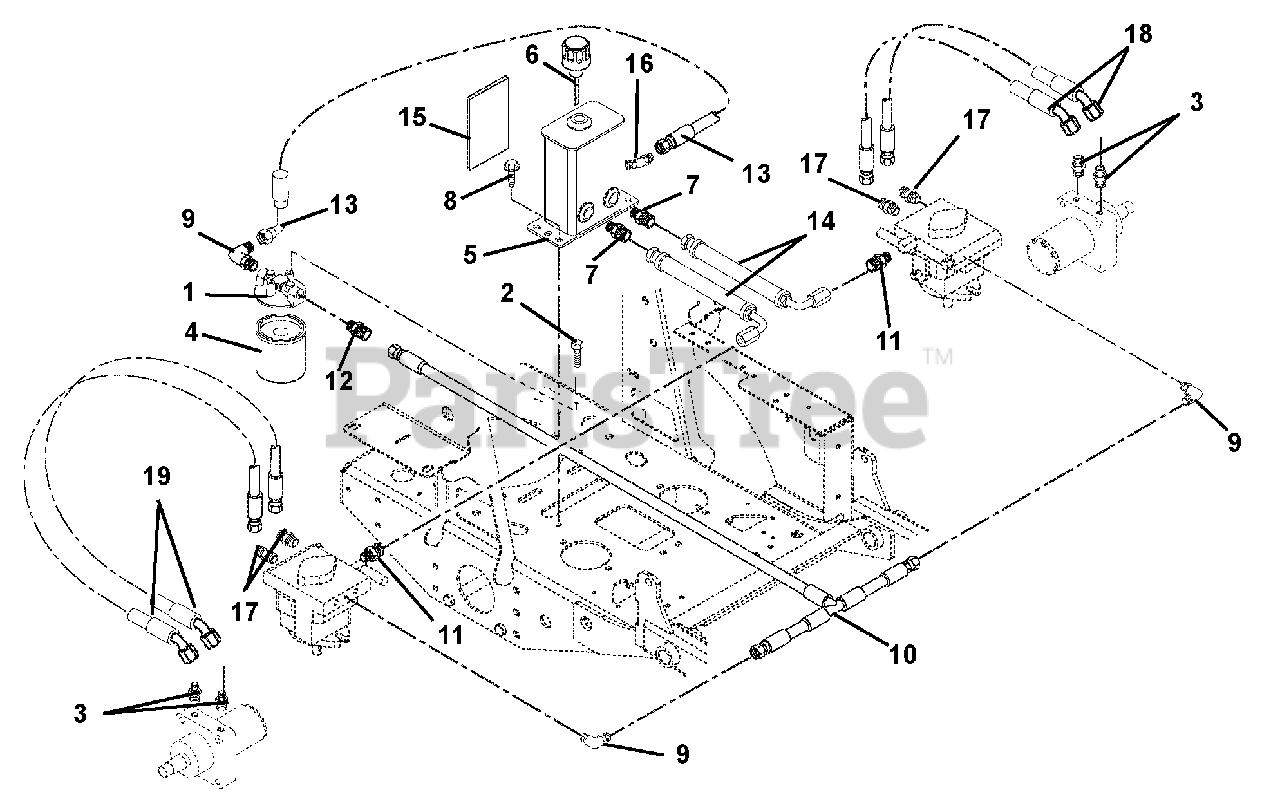

992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

  • Title

1

Ariens 00672000

HEAD, FILTER

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.49

$

In Stock, only 3 left!

0

3

Ariens 07062100

FTG, HYD STR M10O-M8F

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 00669300

ELEMENT, OIL FILTER

$26.99

$

In Stock, Qty 8

0

5

Ariens 02985351

WMT,FORMED HYD.TANK-3 PORT

Note: (Serial Numbers 006500 and Up)

$170.99

$

Usually ships in 4-12 days

0

Ariens 00161051

WMT, HYDRAULIC TANK

Note: (Serial Numbers 000101 - 006499)

$

$

Not available

6

Ariens 00463000

BREATHER, DIPSTICK

$51.99

$

In Stock, only 2 left!

0

7

Ariens 07000012

FTG, HYD STR M8O-M4F

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 07069600

FTG. HYD. 90 EL M8F-M8O

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 00669400

HOSE, .50 TO .38 TEE ASSEMBLY

$138.99

$

Usually ships in 4-12 days

0

11

Ariens 07063800

FITTING, HYD (4-6 F5OLO)

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 07064200

FITTING, HYD (6 F5OLO)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 00393800

HOSE, HYD..50-11-OK F8F0-F8F9

Note: (Serial Numbers 006500 and Up)

$42.99

$

Usually ships in 4-12 days

0

Ariens 00275400

HOSE, HYD .38-9-0K F6F0-F6F9

Note: (Serial Numbers 000101 - 006499)

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 00275600

HOSE, HYD .25-3-0K F4F0-F4F9

$76.99

$

In Stock, only 3 left!

0

15

Ariens 09286900

SHEILD, HEAT 5.50X4.50

$20.99

$

Usually ships in 4-12 days

0

16

Ariens 07000011

FTG, HYD 45DEG M6F-M8O

Note: (Serial Numbers 000101 - 006499)

$

$

Not available

17

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

Note: (Serial Numbers 006500 and Up)

$9.49

$

In Stock, only 4 left!

0

Ariens 07066200

FTG,HYD 45DEG M8F-M80

Note: (Serial Numbers 000101 - 006499)

$59.99

$

Usually ships in 4-12 days

0

18

Ariens 00357300

HOSE,HYD .50-11-3K F8O0-F8O4

$79.99

$

Usually ships in 4-12 days

0

19

Ariens 00357400

HOSE,HYD .50-12-3K F8O0-F8O4

$96.99

$

Usually ships in 4-12 days

0
