992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Hydraulic Wheel Motor_HGM-P Series Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

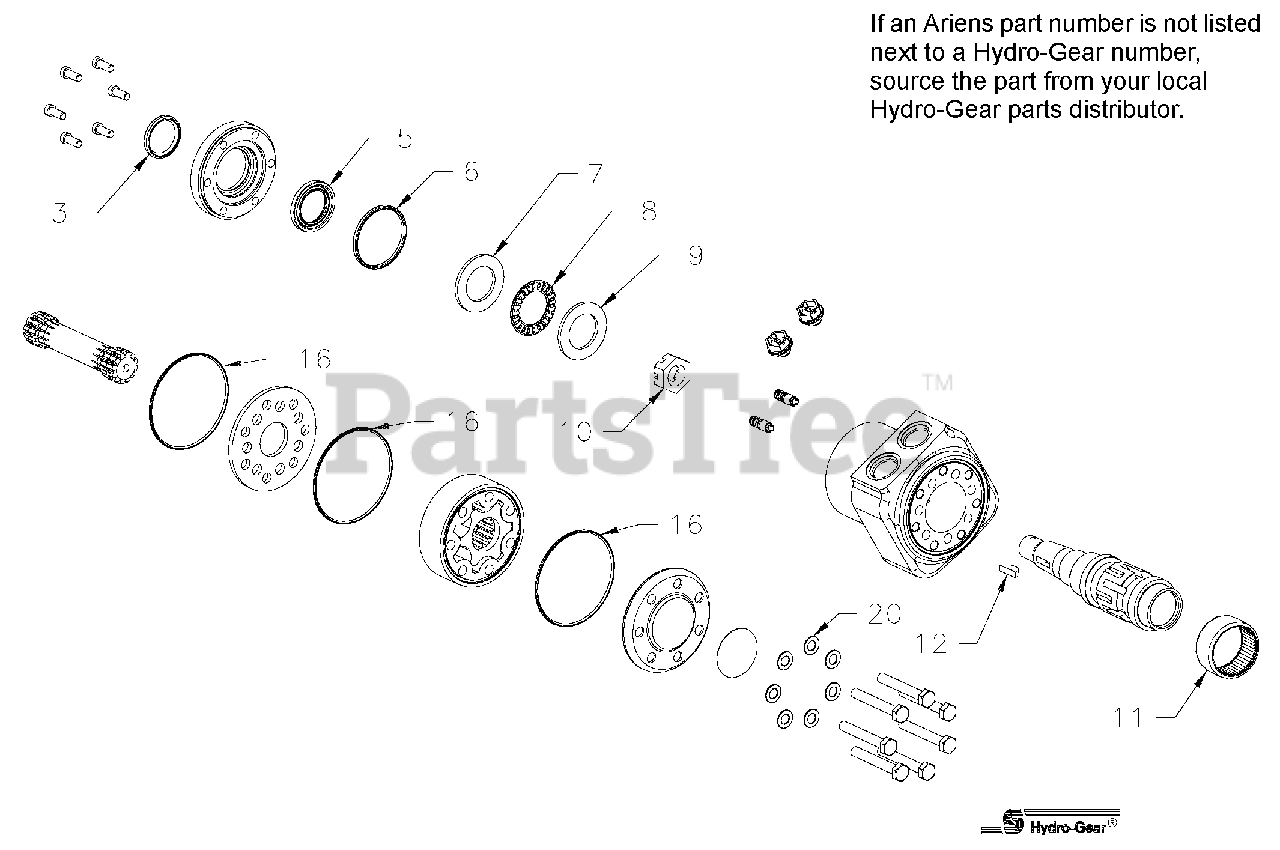

Hydraulic Wheel Motor_HGM-P Series Parts Diagram

  • Title

10

Nut, Castle .75-20 Slotted Hex

Note: HydroGear p/n:51869

$

$

Not available

12

Key, Woodruff .1875 x .75

Note: HydroGear p/n:51871

$

$

Not available

NS

Kit, Seal (Serial No. 5146M10001 and below)(includes 3, 5, 6, 16 and 20)

Note: HydroGear p/n:70626-1

$

$

Not available

NS

Kit, Seal (Serial No. 5146M10001 and up)(includes 3, 5, 6, 16 and 20)

Note: HydroGear p/n:70626-2

$

$

Not available

NS

Kit, Axial Needle Bearing HGM P-Series (includes 7, 8, 9 and 11)

Note: HydroGear p/n:71501

$

$

Not available
