992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

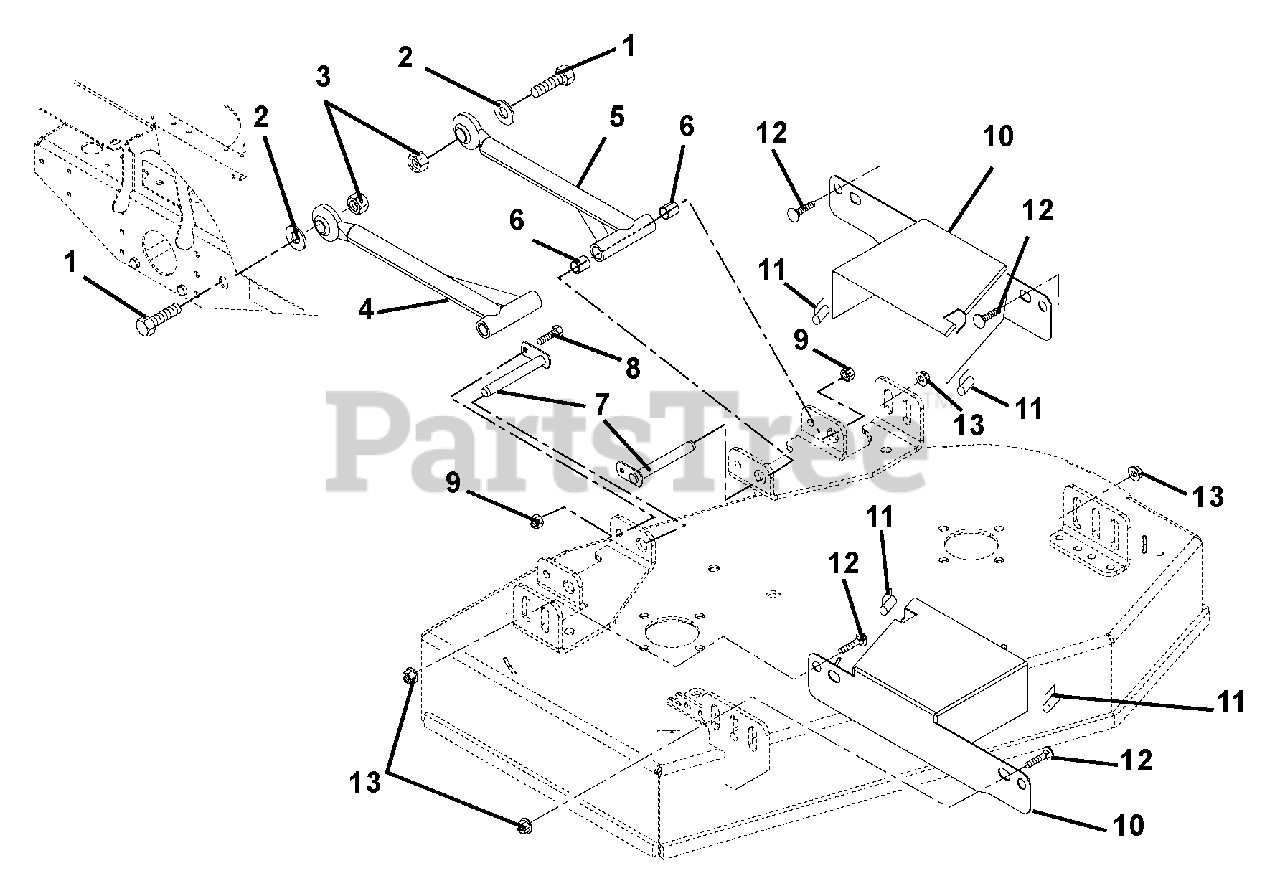

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 05900003

BLT-HEX .875-9X3.00 GR5 YZ

$6.99

$

Usually ships in 4-12 days

0

2

Ariens 05512600

BSHG-SLV .882X1.250X.531

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, only 4 left!

0

4

Ariens 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Ariens 09282151

MOWER MTG ARM - BLACK

$142.99

$

Usually ships in 4-12 days

0

6

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, Qty 10

0

7

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$60.99

$

In Stock, only 2 left!

0

8

Ariens 05932600

BLT-HEX .38-16X.875 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

9

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00160553

GUARD, 34" BELT

$79.99

$

In Stock, only 3 left!

0

11

Ariens 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 06224600

@BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

13

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0
