992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 007000 & Above) Engine and Clutch Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

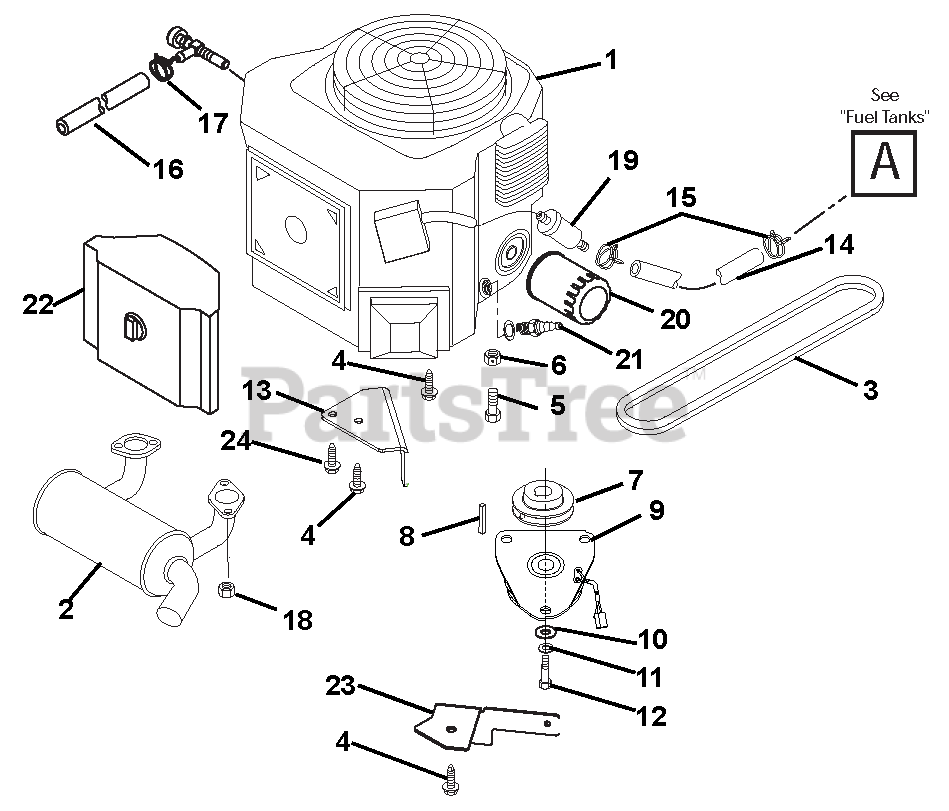

Engine and Clutch Parts Diagram

  • Title

1

Ariens 08200012

ENGINE, 17HP KAW FH500V-AS43-R

$

$

Not available

2

Ariens 09298000

MUFFLER, KAW. (COMPACT-Z)

$260.99

$

Usually ships in 4-12 days

0

3

Ariens 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

4

Ariens 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

$3.99

$

In Stock, only 1 left!

0

5

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

6

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 07300119

SHEAVE-4.30X1.127X1.30 ENGINE

$70.99

$

Usually ships in 4-12 days

0

8

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

9

Ariens 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 2 left!

0

10

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

Usually ships in 4-12 days

0

11

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

12

Ariens 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

13

Ariens 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 3 left!

0

14

Ariens 00365900

HOSE, 5.75"-1/4" ID GAS LINE

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

16

Ariens 00172900

HOSE, 1/2 X 6.00

$9.99

$

Usually ships in 4-12 days

0

17

Ariens 06923500

CLAMP,.88 DIA. HOSE

Note: Clamp, .88 Diameter Hose)

$2.49

$

In Stock, Qty 6

0

18

Ariens 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

19

Ariens 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

20

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

21

Ariens 21536100

PLUG, SPARK

$3.99

$

In Stock, Qty 20+

0

22

Ariens 21538200

AIR FLTR,PAPER

$21.99

$

In Stock, Qty 20+

0

22

Ariens 21538300

FILTER, FOAM AIR PRE-

$11.99

$

Usually ships in 4-12 days

0

23

Ariens 03878451

GUARD - CZ CLUTCH WIRE

$15.99

$

Usually ships in 4-12 days

0

24

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0
