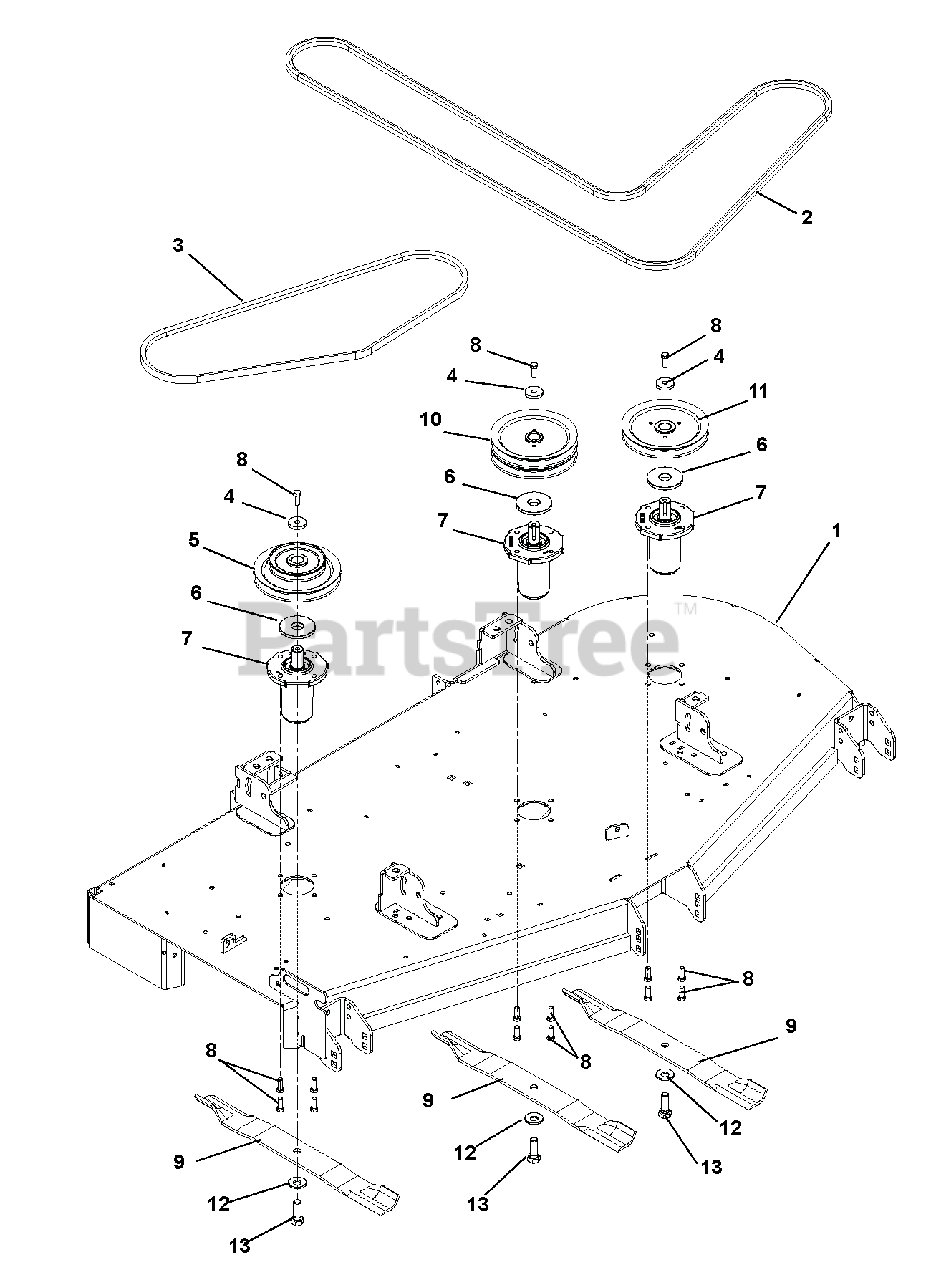

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 002500 - 010999) deck, belts, blades and spindles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

deck, belts, blades and spindles Parts Diagram

  • Title

1

Gravely 03874553

PT252 SIDE DISCH DECK WMT-RED
(Superseded to 59224800)

$1053.99

$

Usually ships in 4-12 days

0

2

Gravely 07200509

HEX BELT, BB-WRAPPED

$134.99

$

In Stock, Qty 10

0

3

Gravely 07200036

V-BELT, B-COGGED

$63.99

$

In Stock, Qty 20+

0

4

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

$81.99

$

In Stock, Qty 10

0

6

Gravely 00481000

RETAINER, GREASE

$10.99

$

In Stock, Qty 12

0

7

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

Note: (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

Gravely 00273100

BLADE, MULCH 18.00"

$26.99

$

In Stock, Qty 20+

0

10

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$80.99

$

In Stock, Qty 16

0

11

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$83.99

$

In Stock, Qty 13

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

13

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0
