992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

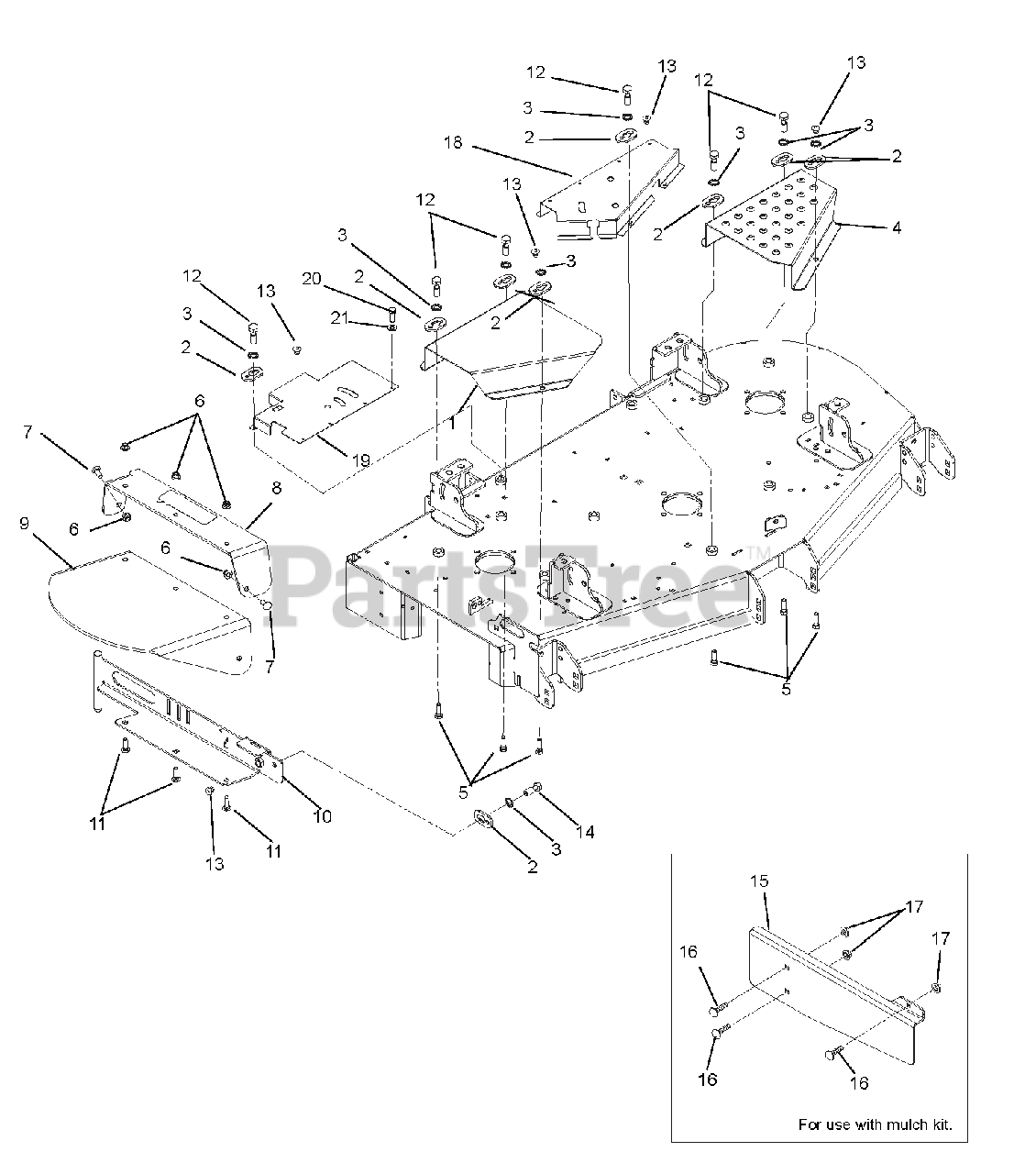

Belt Covers Parts Diagram

  • Title

1

Gravely 04099951

GUARD, RH PT200 CE BELT

$

$

Not available

2

Gravely 04183000

KEEPER, BOLT

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 04100051

GUARD, LH PT200 CE BELT

$

$

Not available

5

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$133.99

$

In Stock, only 1 left!

0

9

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$97.99

$

In Stock, only 3 left!

0

10

Gravely 04319453

WMT-52" DISCHARGE CHUTE MTG-CE

$

$

Not available

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$15.99

$

Usually ships in 4-12 days

0

13

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07001634

BLT-HEX.38-16X1.25 GR5 CAP .37

$

$

Not available

15

Gravely 04392553

COVER-DISCHARGE 52" CE

$

$

Not available

16

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$3.49

$

In Stock, only 2 left!

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 04506151

WMT - FRONT BELT SHIELD

$103.99

$

Usually ships in 4-12 days

0

19

Gravely 04506251

SHIELD - BELT - REAR

$

$

Not available

20

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0
