992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Control Panel Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

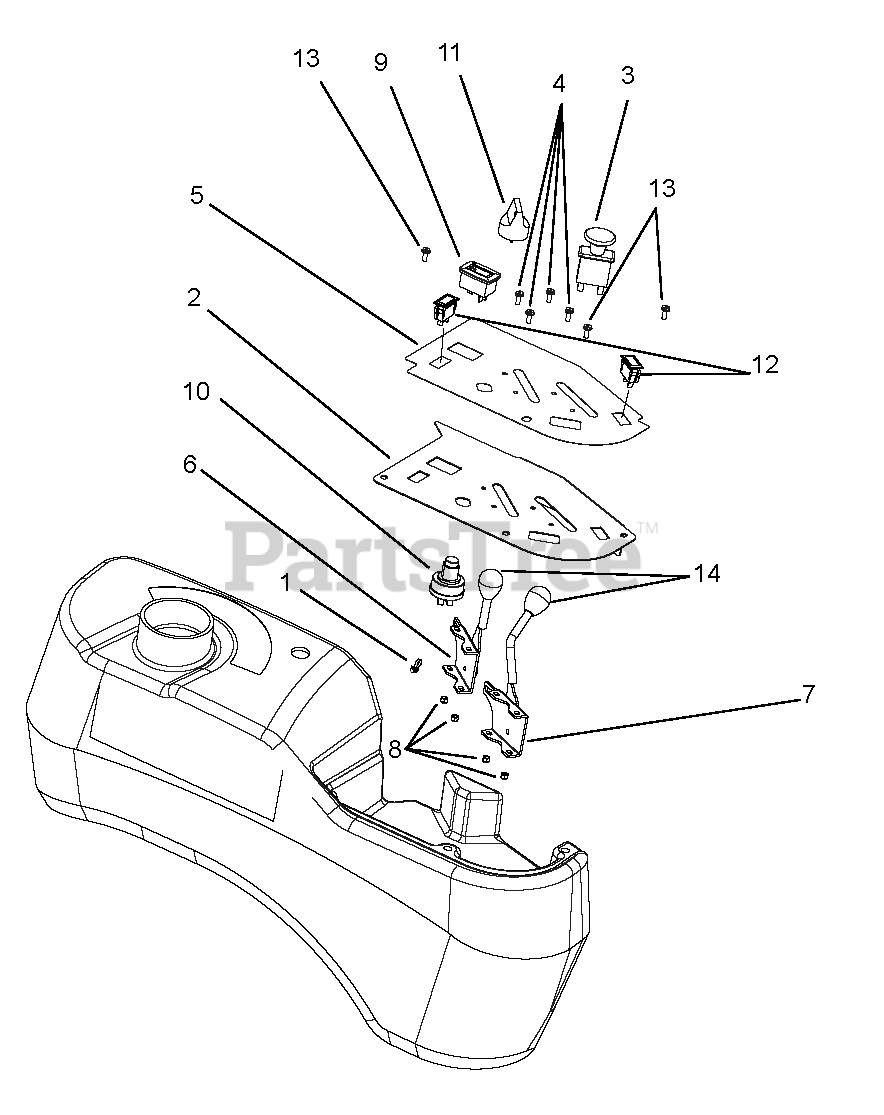

Control Panel Parts Diagram

  • Title

1

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 03961651

PANEL, CONTROL

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

4

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03971800

DECAL, CONTROL PANEL

$43.99

$

In Stock, only 2 left!

0

6

Gravely 06900412

CABLE, PRO-CONTROL

$69.99

$

In Stock, Qty 5

0

7

Gravely 06900411

CABLE, PRO-CONTROL THROTTLE

$58.99

$

In Stock, Qty 5

0

8

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

10

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$50.99

$

In Stock, Qty 20+

0

11

Gravely 09287000

KEY, W/ SHIELD

$10.99

$

In Stock, Qty 20+

0

12

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$8.49

$

In Stock, Qty 7

0

13

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$4.99

$

In Stock, Qty 11

0

14

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$13.99

$

In Stock, Qty 5

0
