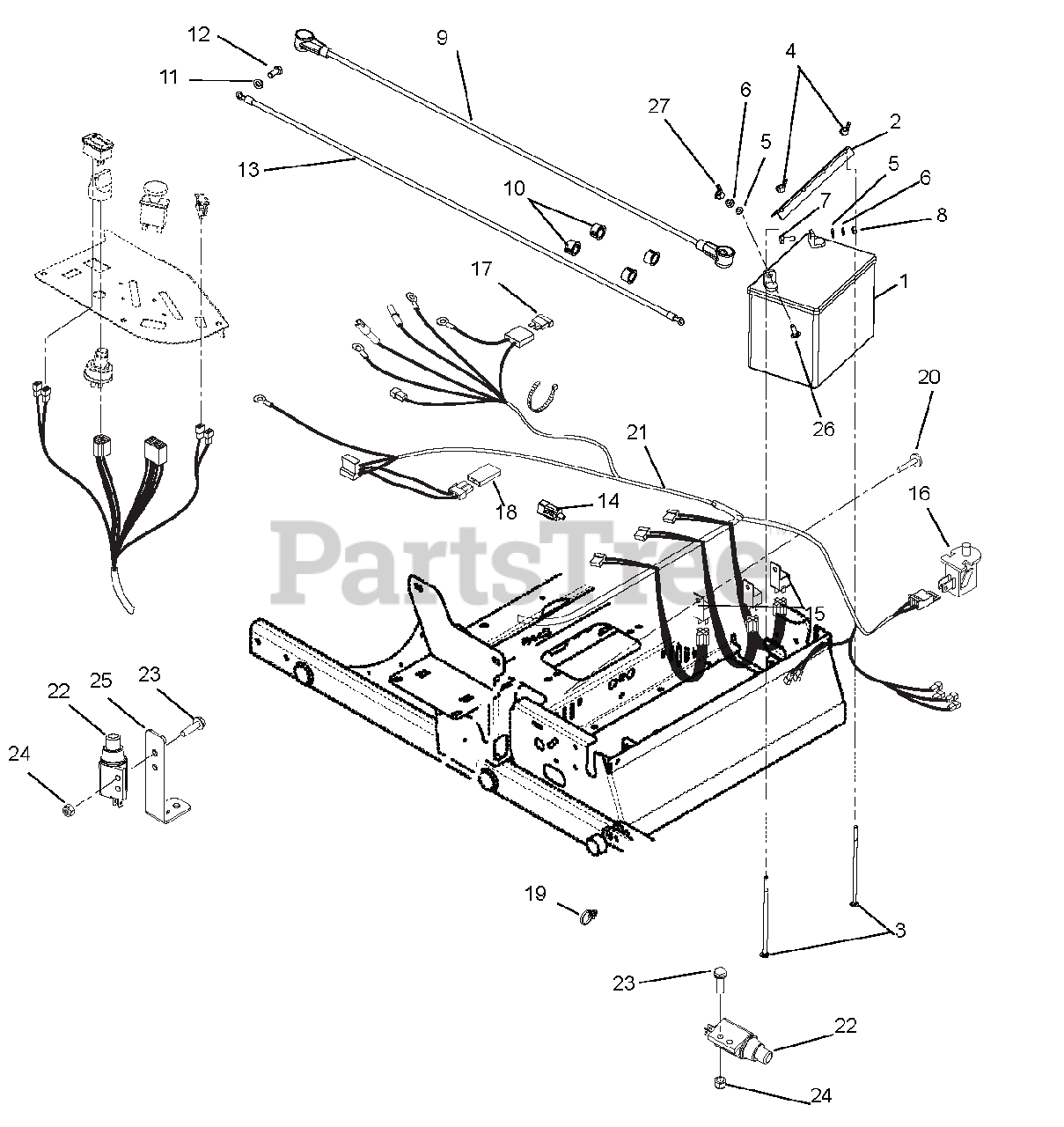

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 011000 - 021999) Electrical Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Electrical Parts Diagram

  • Title

1

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

2

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

3

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 20+

0

4

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

7

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

9

Gravely 03286900

CABLE - POS BATT W/BOOTS 6X35

$40.99

$

Usually ships in 4-12 days

0

10

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 09222700

CBL, NEGATIVE BATT 35.0"LG
(Superseded to 03288200)

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$15.99

$

In Stock, Qty 8

0

15

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

16

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 18

0

17

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

19

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03960900

HARNESS, VERTICAL A/C WIRING

$188.99

$

Usually ships in 4-12 days

0

22

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$23.99

$

In Stock, only 1 left!

0

23

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

24

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04317553

MOUNT-SWITCH PT200 CE

$

$

Not available

26

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06501200

NUT-WING .250-20 YWZC

$2.99

$

Usually ships in 4-12 days

0
