992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 022000 - 030999) Deck, Belts, Blades And Spindles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

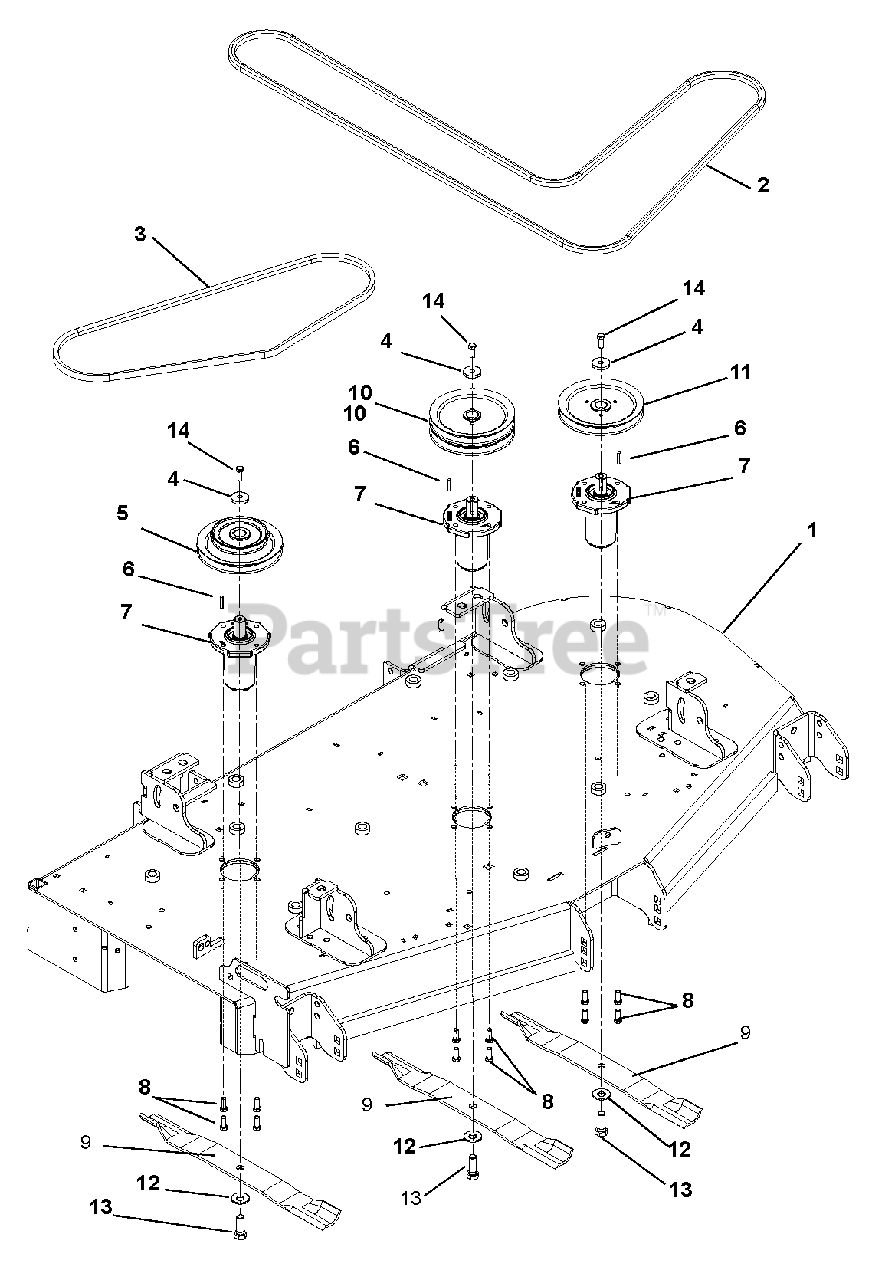

Deck, Belts, Blades And Spindles Parts Diagram

  • Title

1

Gravely 04546353

Deck, 52"

$

$

Not available

2

Gravely 07200509

Hex Belt, BB – Wrapped

$131.99

$

In Stock, only 1 left!

0

3

Gravely 07200036

V-Belt, B-Cogged

$60.99

$

In Stock, Qty 11

0

4

Gravely 04530500

Retainer, Sheave

$7.99

$

In Stock, Qty 14

0

5

Gravely 07332267

Sheave, 1" ID x 6.00" OD and 3.50" OD

$78.99

$

Usually ships in 4-12 days

0

6

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 6

0

7

Gravely 59215400

Assembly, Spindle G3500
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 13

0

9

Gravely 00273100

Blade, Mulch 18.00"

$25.99

$

In Stock, Qty 20+

0

10

Gravely 07332367

Pulley, Double
(Superseded to 07332300)

$76.99

$

In Stock, only 3 left!

0

11

Gravely 07332167

Pulley, Single 1"ID x 6.00" OD
(Superseded to 59211700)

$78.99

$

Usually ships in 4-12 days

0

12

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 05963000

Bolt, Hex .38-16 x 2.75 Grade 8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 10

0
