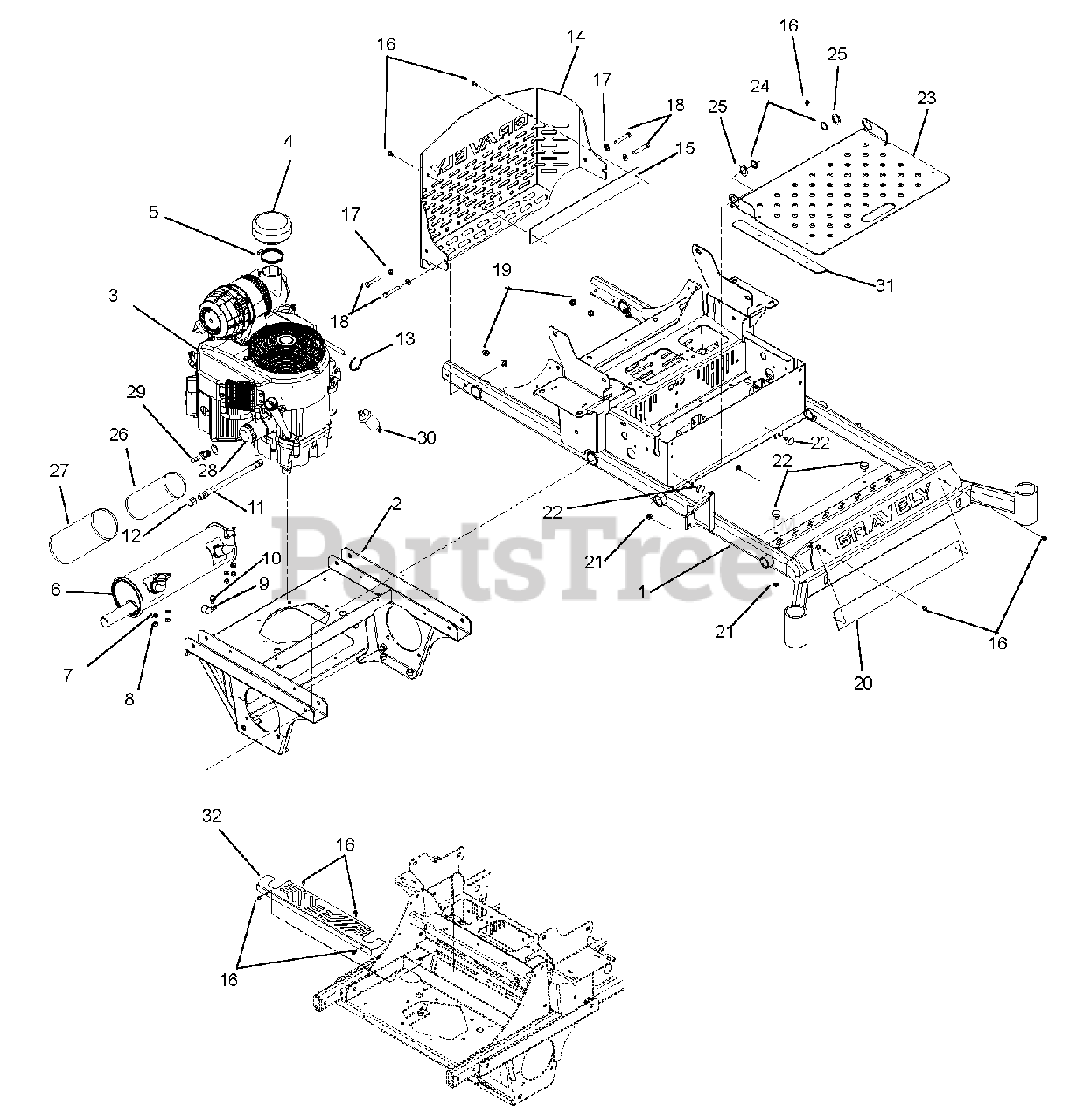

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 022000 - 030999) Frame, Engine And Subframe Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Frame, Engine And Subframe Parts Diagram

  • Title

1

Gravely 03879953

Weldment, 52" – 66" 200PT Main Frame

$

$

Not available

2

Gravely 03855553

Weldment, 200PT Axle/Engine Frame

$619.99

$

Usually ships in 4-12 days

0

3

Gravely 08200722

Engine, Kawasaki FX730

$

$

Not available

4

Gravely 09408700

Rain Cap, Air Cleaner

$58.99

$

In Stock, Qty 5

0

5

Gravely 06900339

Clamp, Hose 2.75 DIA Worm

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 03989000

Muffler, Kawasaki Fixed 24/26HP

$184.99

$

In Stock, only 1 left!

0

7

Gravely 06308600

Washer, Lock .31 x .078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500018

Nut, Locking Top M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

9

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 07412900

Screw, Tap .38-16 x .50 Hex Washer Head TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

11

Gravely 04058500

Hose, Hydraulic .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 03873200

Pipe Cap 3/8 NPT Female

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

14

Gravely 03889053

Weldment, Bumper, Pro-Turn 200

$267.99

$

Usually ships in 4-12 days

0

15

Gravely 03948251

Plate, Bumper, Pro-Turn 200

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 07400034

Screw, Tap .25-20 x .50 Hex Washer Head TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05962900

Bolt, Hex .38-16 x 2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

Nut, Locking Nylon Flange .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 03828551

Plate, Bumper Name Backer

$

$

Not available

21

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

23

Gravely 03862351

Inspection Panel

$97.99

$

Usually ships in 4-12 days

0

24

Gravely 05707300

Ring, Retaining, External 1.00 x .078

$3.49

$

In Stock, Qty 17

0

25

Gravely 06436300

Washer, Flat Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

26

Gravely 21545300

Element, Inner Safety

$48.99

$

In Stock, only 4 left!

0

27

Gravely 21545400

Element, Outer Primary

$36.99

$

In Stock, Qty 20+

0

28

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

29

Gravely 21536100

Spark Plug

$3.99

$

In Stock, Qty 20+

0

30

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

31

Gravely 04317951

Guard, Foot Plate, Finger

$

$

Not available

32

Gravely 04073253

Guard, CE Rear Access

$

$

Not available
