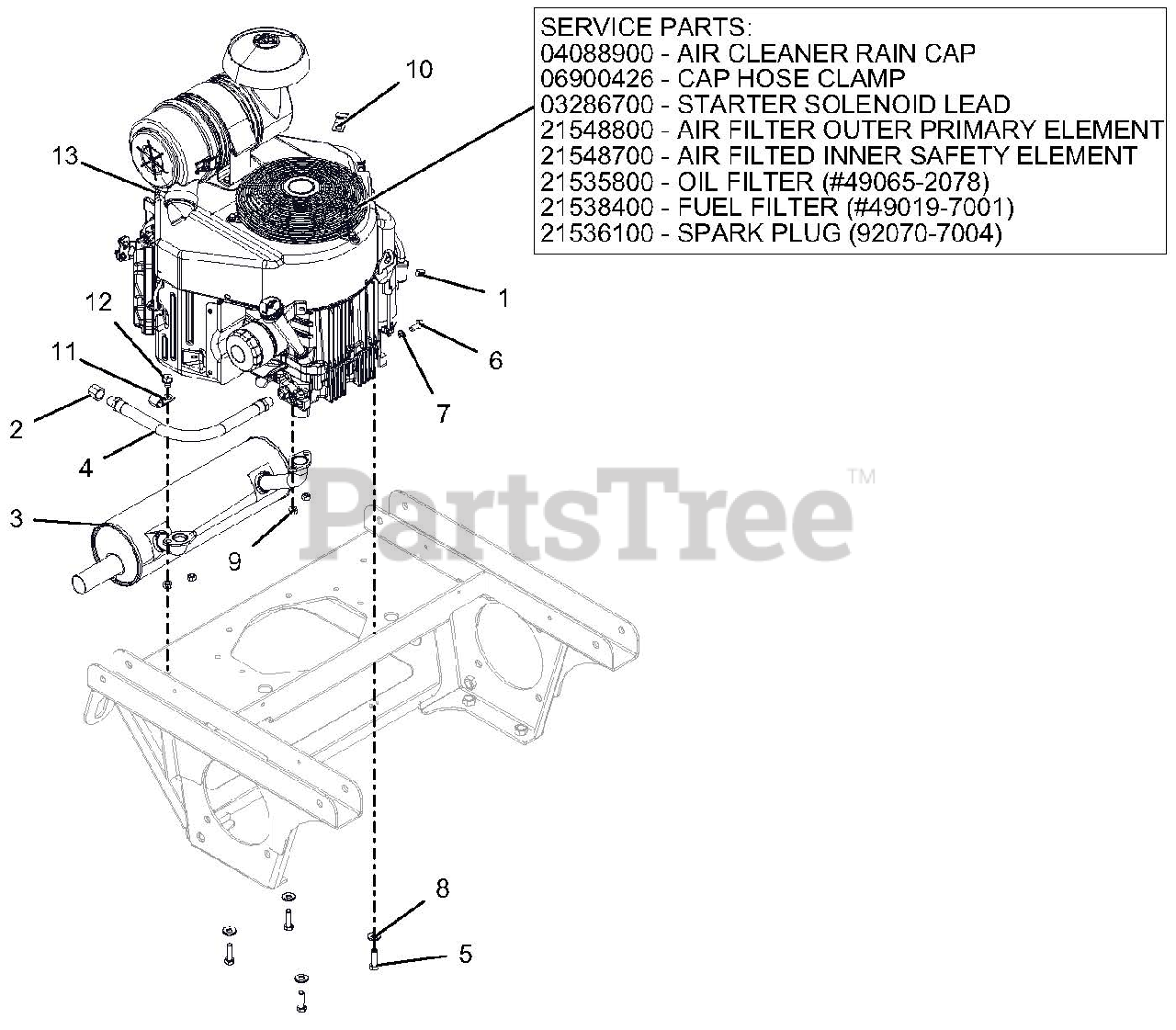

992325 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Engine - Kaasaki FX730 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Engine - Kaasaki FX730 Parts Diagram

  • Title

1

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

2

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

In Stock, only 2 left!

0

3

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

$192.99

$

Usually ships in 4-12 days

0

4

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.99

$

In Stock, Qty 11

0

10

Gravely 06909400

J-CLAMP

$4.99

$

In Stock, only 4 left!

0

11

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 08200722

ENGINE, KAWASAKI FX730

$

$

Not available

13

Gravely 04088900

CAP, KAW 11065-7025

$42.99

$

Usually ships in 4-12 days

0

13

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 03286700

LEAD - STARTER SOLENOID

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 21548800

FILTER, OUTER

$28.99

$

In Stock, Qty 20+

0

13

Gravely 21548700

FILTER, INNER - KAW

$28.99

$

In Stock, Qty 20+

0

13

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

13

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0
