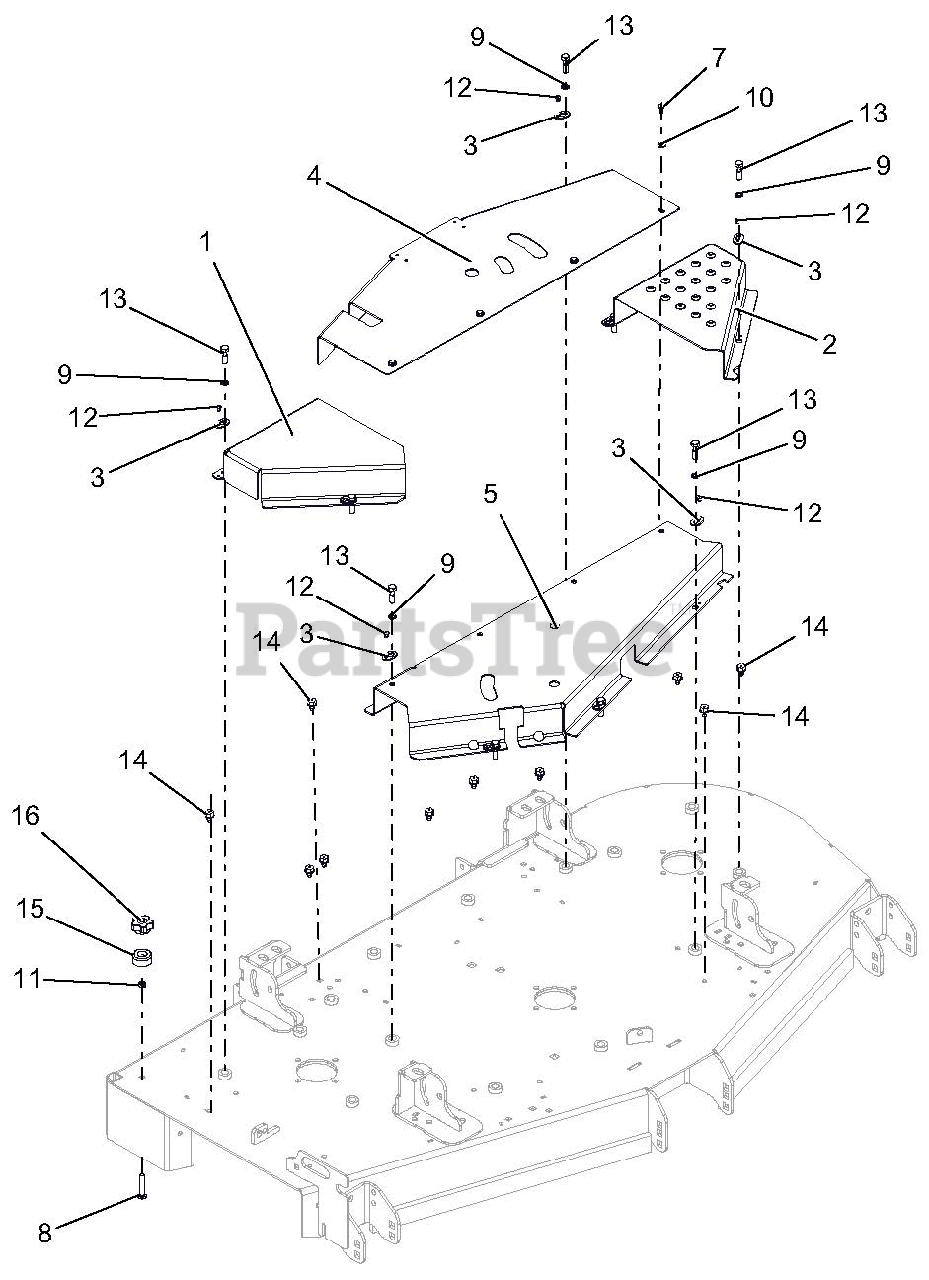

992326 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 031999 - 039999) Belt Covers - 60" Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

Belt Covers - 60" Deck Parts Diagram

  • Title

1

Gravely 59223300

GUARD, RH PT200 CE BELT

Note: (BLACK)

$

$

Not available

2

Gravely 59223200

GUARD, LH PT200 CE BELT

Note: (BLACK)

$

$

Not available

3

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 04739800

BRKT, REAR BELT GUARD CE-60

$

$

Not available

5

Gravely 04741200

WLDMT, FRONT BELT GUARD CE-260

$

$

Not available

7

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

8

Gravely 06225800

BLT-RDHDSQNK .31-18X2.0 FTH G5 Y

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 10

0

13

Gravely 07001625

BLT, HEX 0.38-16 X 1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 07534800

KNOB, CLAMPING

$7.99

$

In Stock, Qty 10

0
