992327 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) Chute Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

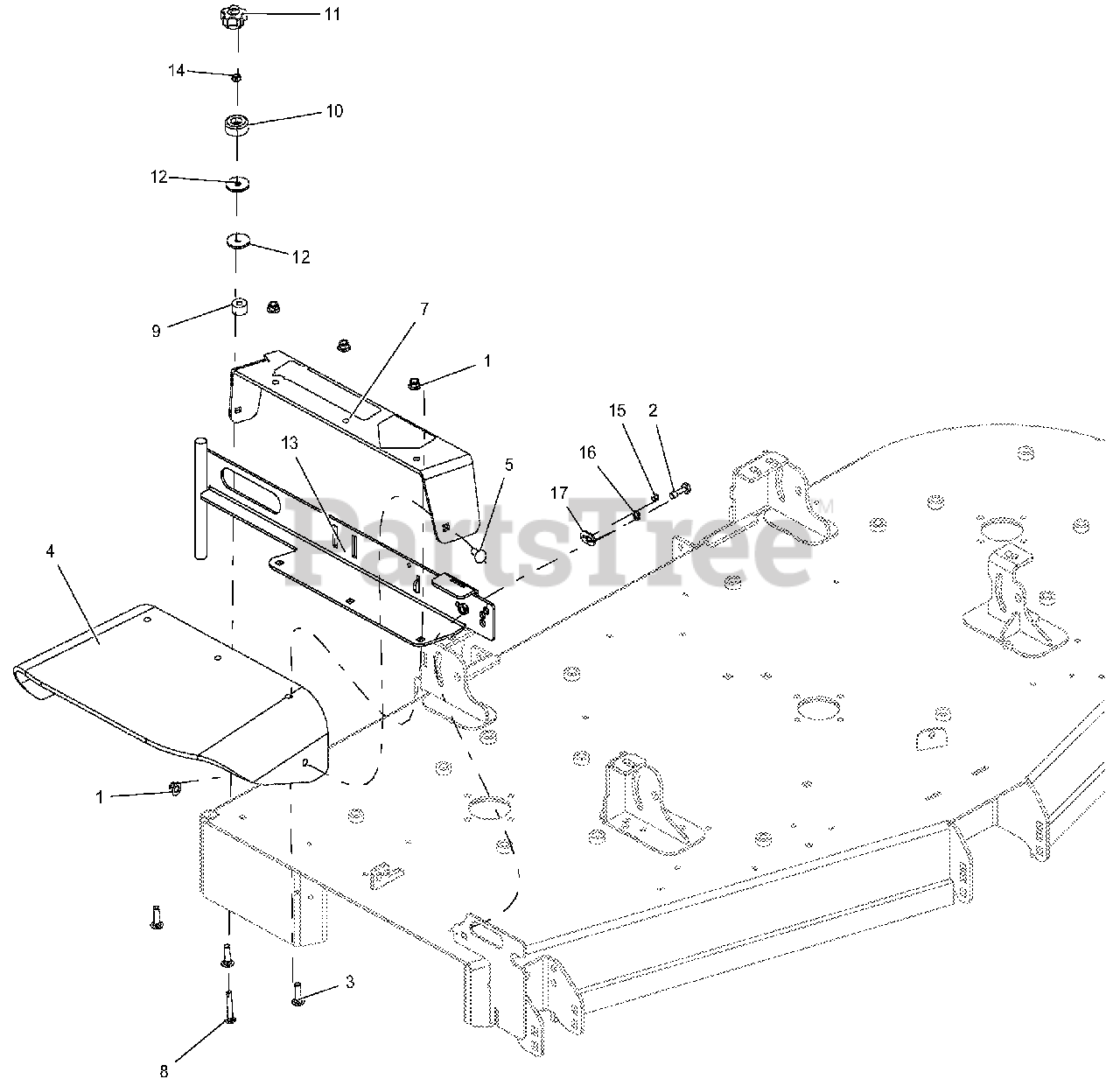

Chute Parts Diagram

  • Title

1

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 07001634

BLT-HEX .38-16X1.25 GR5 CAP .37

$

$

Not available

3

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 6

0

5

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 59218500

DISCHARGE CHUTE SUPPORT W/SAFETY DECAL-RED

$104.99

$

Usually ships in 4-12 days

0

8

Gravely 06225800

BLT-RDHDSQNK .31-18X2.0 FTH G5 Y

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 03035100

SPACER .390X1.000X.562

$9.99

$

In Stock, Qty 17

0

10

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$6.49

$

In Stock, only 1 left!

0

11

Gravely 07534800

KNOB, CLAMPING

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06443400

WSHR-FL-STL .380X1.50X.125 YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 04744100

WLDMT, 72" DISCH CHUTE MTG-CE

$

$

Not available

14

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0

16

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0
