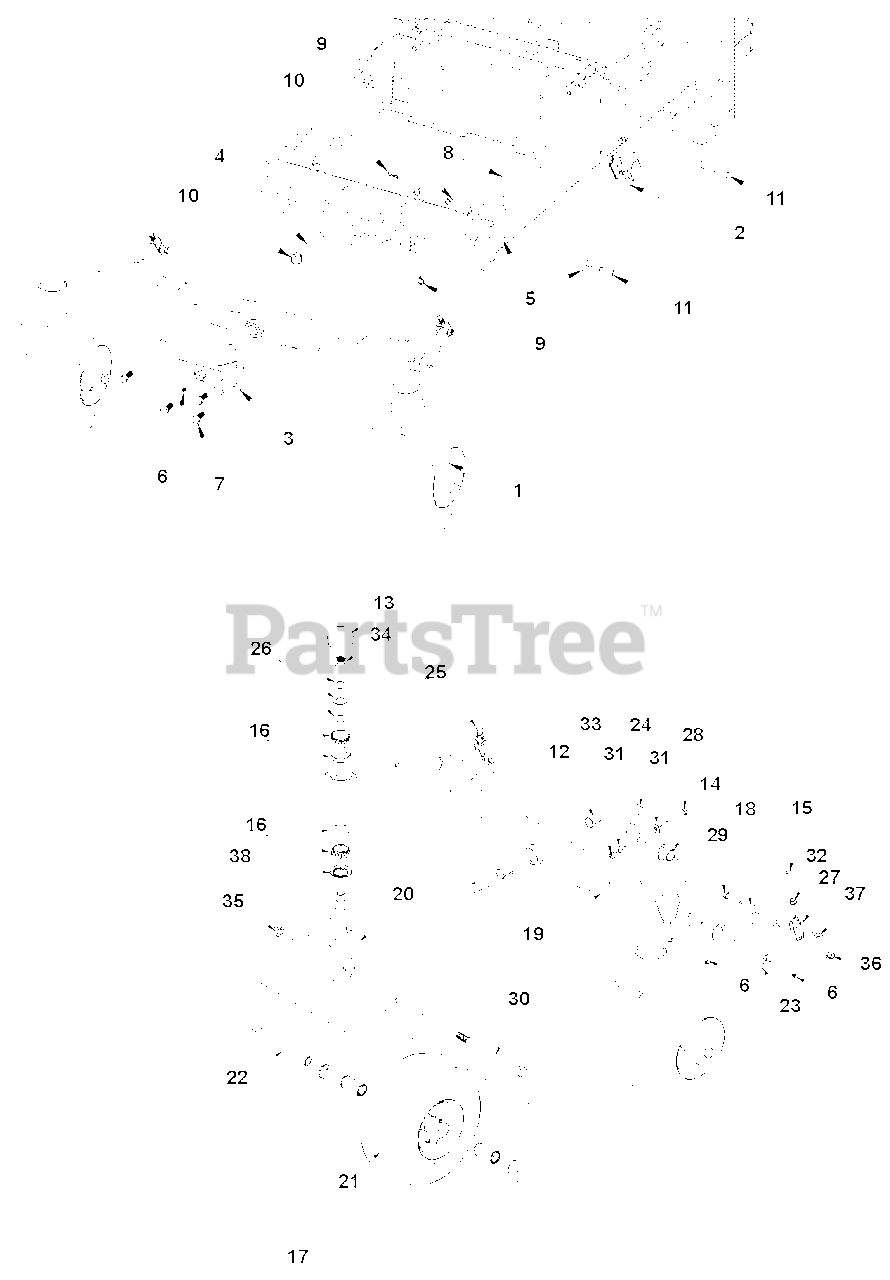

992406 - EverRide Warrior 54" ZT Zero-Turn Mower (SN: 000101 & Above) Front Axle, Casters and Wheels Parts Diagram

Warrior 54" ZT Zero-Turn Mower

Front Axle, Casters and Wheels Parts Diagram

  • Title

1

Front Axle Frame Assembly

Front Axle Frame Assembly

$

$

Not available

2

Gravely 00180085

Rear Lift Rod Assembly

$805.99

$

Usually ships in 4-12 days

0

3

Gravely 03819161

Front Axle Bracket

$

$

Not available

4

Gravely 00180830

Pin, MFG .625 X 5.00 X 4.38 XDRL

$67.99

$

Usually ships in 4-12 days

0

5

Gravely 03814451

Connector Link

$54.99

$

Usually ships in 4-12 days

0

6

Gravely 00959995

Fitting, 1/4-28 Straight Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00960113

Bolt, 1/2-13 X 1.25 Hex 5
(Superseded to 05958900)

$3.49

$

In Stock, Qty 12

0

8

Gravely 00967354

Ring, Rue .500 X .062 X 1.42

$3.99

$

Usually ships in 4-12 days

0

9

Gravely AA964000

Locknut, 1/2-13 Crown
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

10

Gravely 00967057

Ring, Wire - .080 X 1.25

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 00967196

Pin, CVS .500 X 1.50 X 1.27
(Superseded to 06821700)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 00105591

Bearing, Sleeve 1.00 X 1.13 X 1.25

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 00105596

Cap

$11.99

$

In Stock, Qty 8

0

14

Gravely 00130885

Bearing, Flange 1.00X1.25X.944

$8.49

$

Usually ships in 4-12 days

0

15

Gravely 00967396

Bolt, 3/8-16 X 2.25 HEX 5

$

$

Not available

16

Gravely 00145555

Bearing Assembly, 1 in. Diameter Spindle

$29.99

$

In Stock, Qty 20+

0

17

Gravely 03872700

Kit, Bearings and Caps 1.00"

$64.99

$

In Stock, only 1 left!

0

18

Gravely TCA12790

Chain - 3 Links

$

$

Not available

19

Gravely 03815761

Front Axle Weldment

$

$

Not available

20

Gravely 03821361

Weldment, Z Front Wheel Fork

$

$

Not available

21

Gravely 00180256

Assembly, Tire & Rim - 13/6.50 x 6 (includes item 17)

Note: (includes item 17)

$128.99

$

Usually ships in 4-12 days

0

22

Gravely 00180257

Tube, Front Tire Axle

$86.99

$

Usually ships in 4-12 days

0

23

Gravely 03815851

Weldment, LH Front Pivot

$99.99

$

Usually ships in 4-12 days

0

Gravely 03815951

Weldment, RH Front Pivot

$87.99

$

Usually ships in 4-12 days

0

24

Gravely 03815151

Weldment, Front Pivot Clamp

$96.99

$

Usually ships in 4-12 days

0

25

Gravely 00181566

Assembly, Front Pivot (Includes items 15, 27, 32 and 37)

Note: (Includes items 15, 27, 32 and 37)

$58.99

$

Usually ships in 4-12 days

0

26

Gravely 00180992

Washer, .750 x 1.50 x .072 BLVL

$6.49

$

Usually ships in 4-12 days

0

27

Gravely 03816051

Link, U-Bracket

$

$

Not available

28

Gravely 00960051

Bolt, 3/8-16 x 2.25 Hex 5
(Superseded to 05962900)

$4.99

$

In Stock, Qty 20+

0

29

Gravely 05901337

Bolt, Hex 7/16-14 x 2.00 Hex SPCGR5

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 00960176

Bolt, 5/8-11 x 8.50 Hex 5
(Superseded to 05984700)

$12.99

$

Usually ships in 4-12 days

0

31

Gravely 00960702

Washer, .375 REG Flat
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 00964016

Locknut, 3/8-16 Whiz
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

34

Gravely 00964024

Locknut, 3/4-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

35

Gravely 00964032

Locknut, 5/8-11 Center
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

36

Gravely 00967342

Locknut, 7/16-14 Whiz
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 00967395

Nut, 3/8-16 Square

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 00145552

Seal, 1.00 Roller Bearing

$11.99

$

In Stock, Qty 8

0
