992406 - EverRide Warrior 54" ZT Zero-Turn Mower (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Warrior 54" ZT Zero-Turn Mower

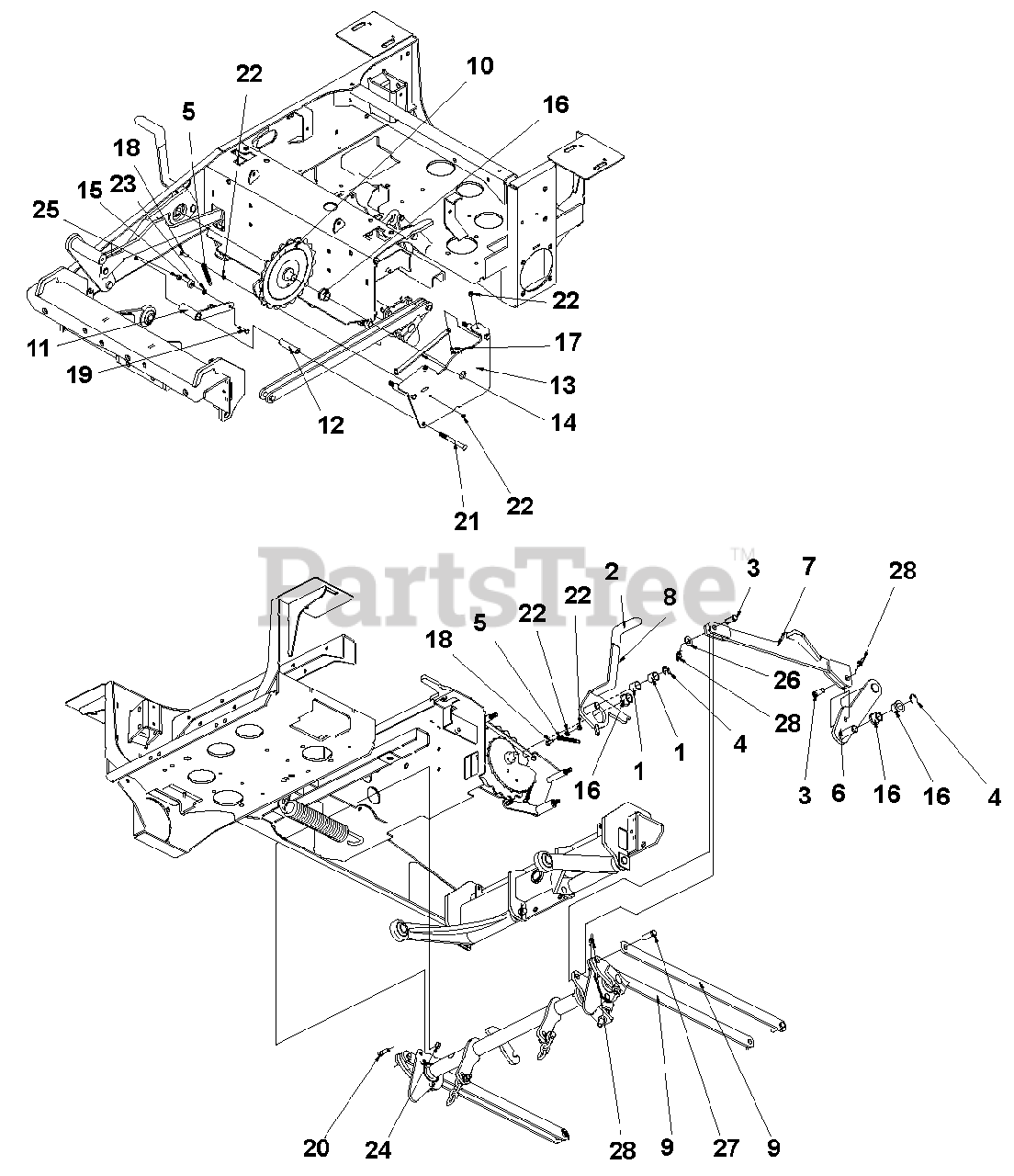

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00105546

Bearing, Sleeve .753 x .878 x .750

$7.49

$

In Stock, Qty 6

0

2

Gravely 00105593

Grip, Rubber Lever

$

$

Not available

3

Gravely 00110330

Pin, Clevis .500 x 1.25 x 1.02 Y
(Superseded to 06821600)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00130886

E-Ring, .750 x .050
(Superseded to 05700134)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 00135292

Spring, EXT .375 x .055 x 2.25

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03814251

Weldment, Foot Arm

$101.99

$

Usually ships in 4-12 days

0

7

Gravely 03814151

Weldment, Foot Connector

$

$

Not available

8

Gravely 03814351

Weldment, Transportation Lock

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 03814451

Plate, Connector Link

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 00181261

Weldment, Cam Control w/Decal

$

$

Not available

11

Gravely 00181338

Weldment, Arm

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 00181389

Spacer, Ø.625 x Ø.385 x 2.53 HOC

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 03799961

Plate, HOC Indicator

$

$

Not available

14

Gravely 03800061

Plate, Finger Guard

$

$

Not available

15

Gravely 00191185

Bearing, Ball .250 x .688 x 313

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 00252126

Bushing, .750 x 1.00 x .750

$12.99

$

Usually ships in 4-12 days

0

17

Gravely AA960000

Bolt, 1/4-20 x .500 HEX 5
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 00960001

Bolt, 1/4-20 x .750 HEX 5

$

$

Not available

19

Gravely 00960002

Bolt, 1/4-20 x 1.00 HEX 5
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

20

Gravely 00960046

Bolt, 1/4-20 x 1.00 HEX 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00960056

Bolt, 3/8-16 x 3.50 HEX 5
(Superseded to 05960900)

$4.99

$

In Stock, Qty 20+

0

22

Gravely AA960500

Nut, 1/4-20 STD HEX GR5

$

$

Not available

23

Gravely 00961701

Washer, M6 REG Flat
(Superseded to 06449100)

$

$

Not available

24

Gravely 00964022

Locknut, 3/8-16 Crow

$

$

Not available

25

Gravely 00964048

Locknut, 1/4-20 Nyloc

$

$

Not available

26

Gravely 00964505

Washer, .500 x 1.00 x .105 FLAT
(Superseded to 06441900)

$1.49

$

In Stock, Qty 8

0

27

Gravely 00967196

Pin, Clevis .500 x 1.50 x 1.27
(Superseded to 06821700)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 00967354

Ring, Rue .500 x .062 x 1.420

$3.99

$

Usually ships in 4-12 days

0
