992408 - EverRide Warrior 66" ZT Zero-Turn Mower (SN: 000101 & Above) Deck Mount Parts Diagram

Warrior 66" ZT Zero-Turn Mower

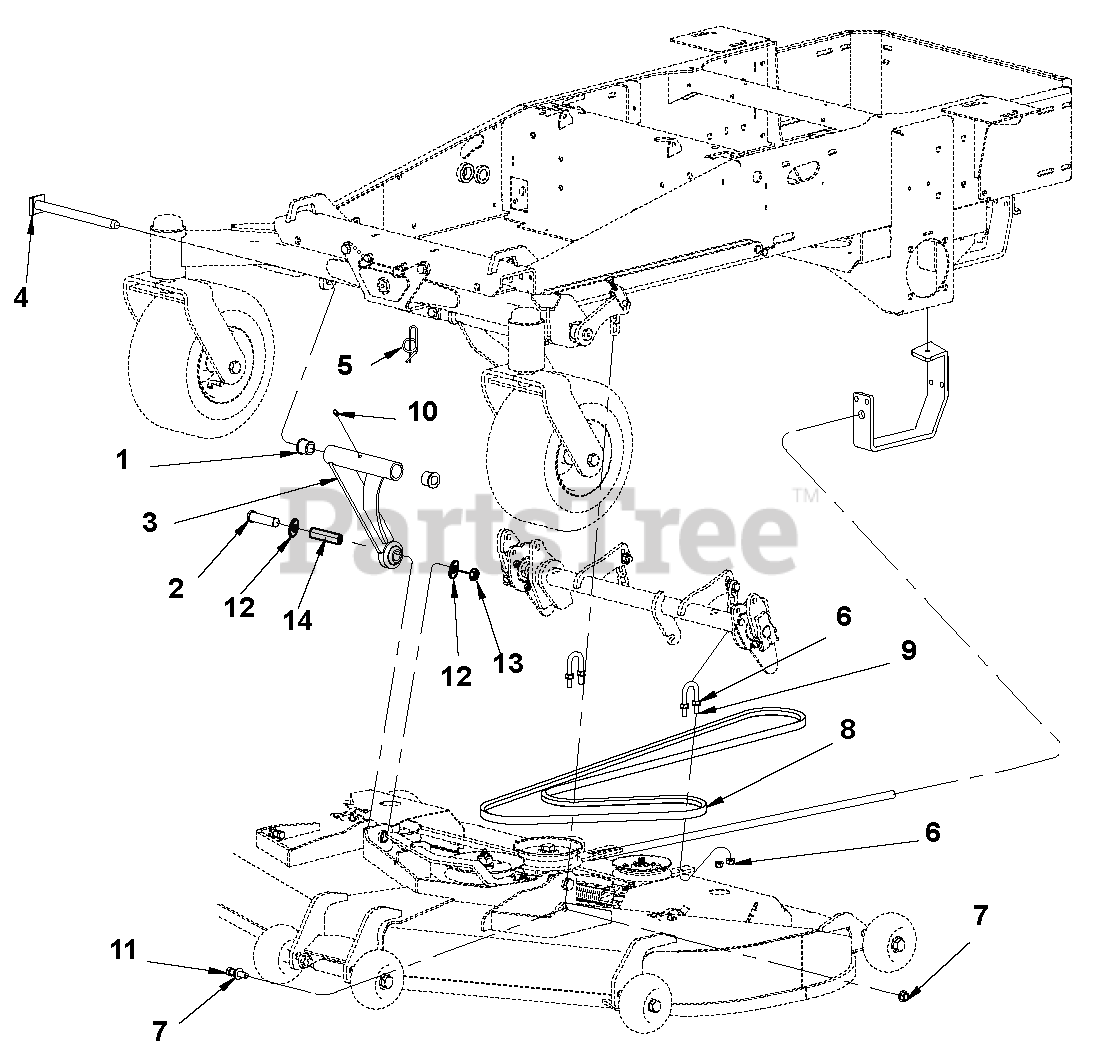

Deck Mount Parts Diagram

  • Title

1

Gravely 00150079

Bushing, 3/4 I.D.

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 00960122

Bolt, .50-13 x 3.50 Hex 5
(Superseded to 05965800)

$4.99

$

In Stock, only 2 left!

0

3

Gravely 03814051

Weldment, Deck Pull 11.5

$196.99

$

Usually ships in 4-12 days

0

4

Gravely 00180224

Weldment, Drag Link Pin

$

$

Not available

5

Gravely 00967357

Ring, Rue .750 x .080 x 2.081

$

$

Not available

6

Gravely 00964016

Locknut, 3/8-16 Whiz
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

7

Gravely 00967342

Locknut, 7/16-14 Whiz
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 00181715

Belt, B112 Kevlar (Clutch to Deck)

Note: (Clutch to Deck)

$79.99

$

In Stock, Qty 7

0

9

Gravely 00181485

U-Bolt Special

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 00959995

Fitting, 1/4-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 00960082

Bolt, 7/16-14 x 1 3/4 GR5
(Superseded to 05982100)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 00960704

Washer, .500 REG Flat
(Superseded to 06442000)

$3.49

$

In Stock, Qty 15

0

13

Gravely AA964000

Locknut, 1/2-13 Crown
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 03856600

Tube, RD .750 x .125W x 2.469

$18.99

$

Usually ships in 4-12 days

0
