992408 - EverRide Warrior 66" ZT Zero-Turn Mower (SN: 000101 & Above) Hydraulics Parts Diagram

Warrior 66" ZT Zero-Turn Mower

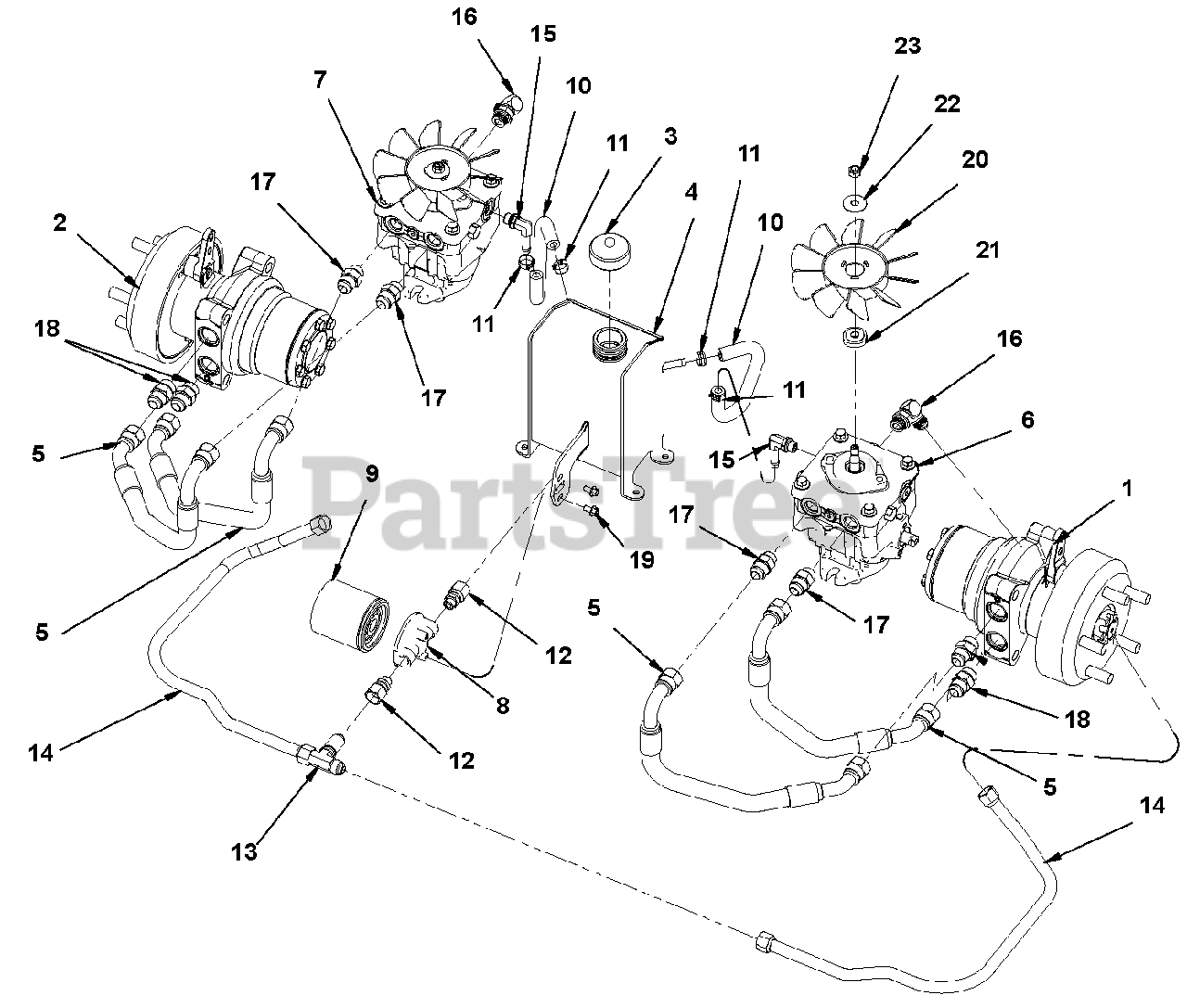

Hydraulics Parts Diagram

  • Title

1

Gravely 00181513

Motor Assembly, LH Wheel Hydro-Gear ***

$2637.99

$

Usually ships in 4-12 days

0

2

Gravely 00181512

Motor Assembly, RH Wheel Hydro-Gear***

$

$

Not available

3

Gravely 00181210

Cap, Oil Reservoir Breather

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 03819851

Weldment, Oil Tank

$

$

Not available

5

Gravely 00180652

Hose, Hydraulic 5/8 X 18.75

$141.99

$

Usually ships in 4-12 days

0

6

Gravely 00180831

Pump, LH BDP16A *

$1170.99

$

Usually ships in 4-12 days

0

7

Gravely 00180832

Pump, RH BDP16A *

$964.99

$

Usually ships in 4-12 days

0

8

Gravely 00180908

Head, Filter

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 00180909

Filter, 25 MICRON

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 00180935

Hose, Hydraulic 3/8 X 12.5 Long

$

$

Not available

11

Gravely 00180947

Clamp, .690 OD Hose PINCH

$

$

Not available

12

Gravely 00181031

Fitting, #6 Male OR x #8 Female 37° JIC

$

$

Not available

13

Gravely 00181032

Fitting, Bulk Head #8 JIC Tee

$

$

Not available

14

Gravely 00181035

Hose, #8 TOC W/ # 8 SWL 37°JIC

$24.99

$

Usually ships in 4-12 days

0

15

Gravely D24028

Fitting, 9/16 MOR X 3/8 Hose 90º

$9.99

$

Usually ships in 4-12 days

0

16

Gravely D14196

Fitting, HYD Elbow 3/4 O-RING, 3/4JIC

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 00313290

Adapter, 3/4-16MORX7/8-14 JIC

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 00313392

Adapter, 7/8-14MORX 7/8-14JIC

$3.49

$

Usually ships in 4-12 days

0

19

Gravely AA963000

Bolt, 1/4-20 X .500 WSH 5

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 00180993

Fan, BDP16 Plastic Cooler

$20.99

$

Usually ships in 4-12 days

0

21

Gravely 00180994

Hub, BDP16 Fan

$21.99

$

In Stock, only 2 left!

0

22

Gravely 00180995

Washer, .375 x 1.25 x .072 Bellville

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00964066

Locknut, .38-24 Crown
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

181903

Lever, Brake (Hydro-Gear)

Note: (Hydro-Gear)

$

$

Not available

Gravely 181565

Seal Kit, Hydro-Gear Wheel Motor S/O

$

$

Not available
