992409 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) 48 inch mower deck Parts Diagram

Fury ZT Zero-Turn Mower

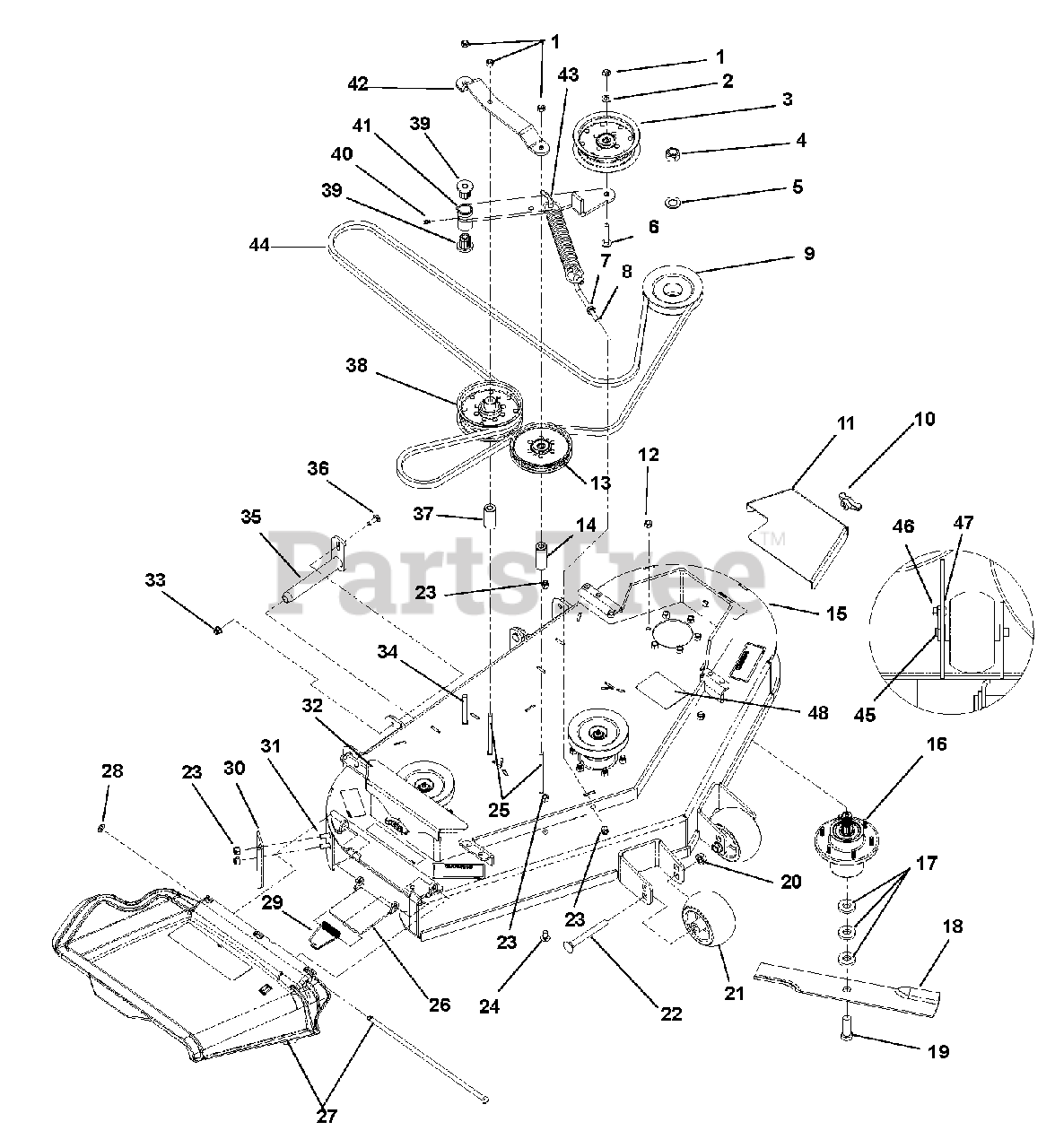

48 inch mower deck Parts Diagram

  • Title

1

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

2

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely D18032

PULLEY, FLAT 5.0 X.38 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

4

Gravely 00964024

LOCKNUT, 3/4-16 CROWN C
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 03399703

WASHER, .75X1.3125X .113
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

6

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

7

Gravely N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

8

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 03828700

PULLEY, SPLINE SPINDLE OFFSET

$

$

Not available

10

Gravely M119352

KNOB, LOCKING

$3.99

$

In Stock, only 4 left!

0

11

Gravely 03870761

WLDT, BELT COVER LH 48

$

$

Not available

12

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

13

Gravely D28050

PULLEY, FLAT 5.00 X .375 W/BRG
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

14

Gravely GDU10181

SPACER, .437 X 1.00 X 2.50 SMLS

$

$

Not available

15

Gravely 03870100

ASSY, 48 EVERRIDE DECK W/ DECALS

$

$

Not available

16

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

In Stock, only 1 left!

0

17

Gravely D18055

WASHER, BLADE
(Superseded to 06401033)

$7.49

$

In Stock, only 2 left!

0

18

Gravely GDU10230

BLADE, 16.50 LO-LIFT

$29.99

$

In Stock, Qty 10

0

19

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

20

Gravely E62934

LOCKNUT 1/2 W/ FLANGE

$

$

Not available

21

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, only 4 left!

0

22

Gravely 03H1853

BOLT, 1/2-13X4.50 CRG 5 Y

$

$

Not available

23

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

24

Gravely 00963033

BOLT, 3/8-16 X 3/4 CAR GR5 LNNK

$

$

Not available

25

Gravely 03H1838

BOLT, CAR 3/8-16 X 5.00

$

$

Not available

26

Gravely 00200095

BRACKET, CHUTE SUPPORT 48" DECK

$25.99

$

Usually ships in 4-12 days

0

27

Gravely TCA16387

CHUTE DISCHARGE ASST #

$37.99

$

In Stock, only 2 left!

0

28

Gravely H141123

RETAINER #

$

$

Not available

29

Gravely 03393800

SPRING, DISCHARGE CHUTE

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 03754061

PLATE, EXTENDER 48" HYDRO

$

$

Not available

31

Gravely 00963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

32

Gravely 03870861

WLDT, BELT COVER RH 48

$

$

Not available

33

Gravely 14M7396

LOCKNUT, FL, ISO7043, M8X1.25

$

$

Not available

34

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

35

Gravely TCA13292

PIN, WELDED

$

$

Not available

36

Gravely 03M7185

BOLT, RH, SQNECK, JDS137, M8X1.25X

$

$

Not available

37

Gravely GDU10180

SPACER, .437 X 1.00 X 2.25 SMLS

$

$

Not available

38

Gravely TCA14548

PULLEY, FLAT 5.25 X .375 W/BRG

$131.99

$

In Stock, only 1 left!

0

39

Gravely TCU14540

BRG, FLG M1 X M25 X M27 FLUTED

$18.99

$

In Stock, only 3 left!

0

40

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

Usually ships in 4-12 days

0

41

Gravely TCA15346

ARM, IDLER

$145.99

$

Usually ships in 4-12 days

0

42

Gravely GDU10119

STRAP, IDLER PULLEY

$

$

Not available

43

Gravely D28025

SPRING, DECK IDLER

$30.99

$

In Stock, only 3 left!

0

44

Gravely TCU16092

BELT

$142.99

$

Usually ships in 4-12 days

0

45

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

46

Gravely H122207

NUT, 1/4" FLANGE PREVAILING TOR

$

$

Not available

47

Gravely 00963095

BOLT, 1/4-20 X .750 CRG 5 Y
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

48

Gravely GDU10262

DECAL, BELT PATH

$

$

Not available
