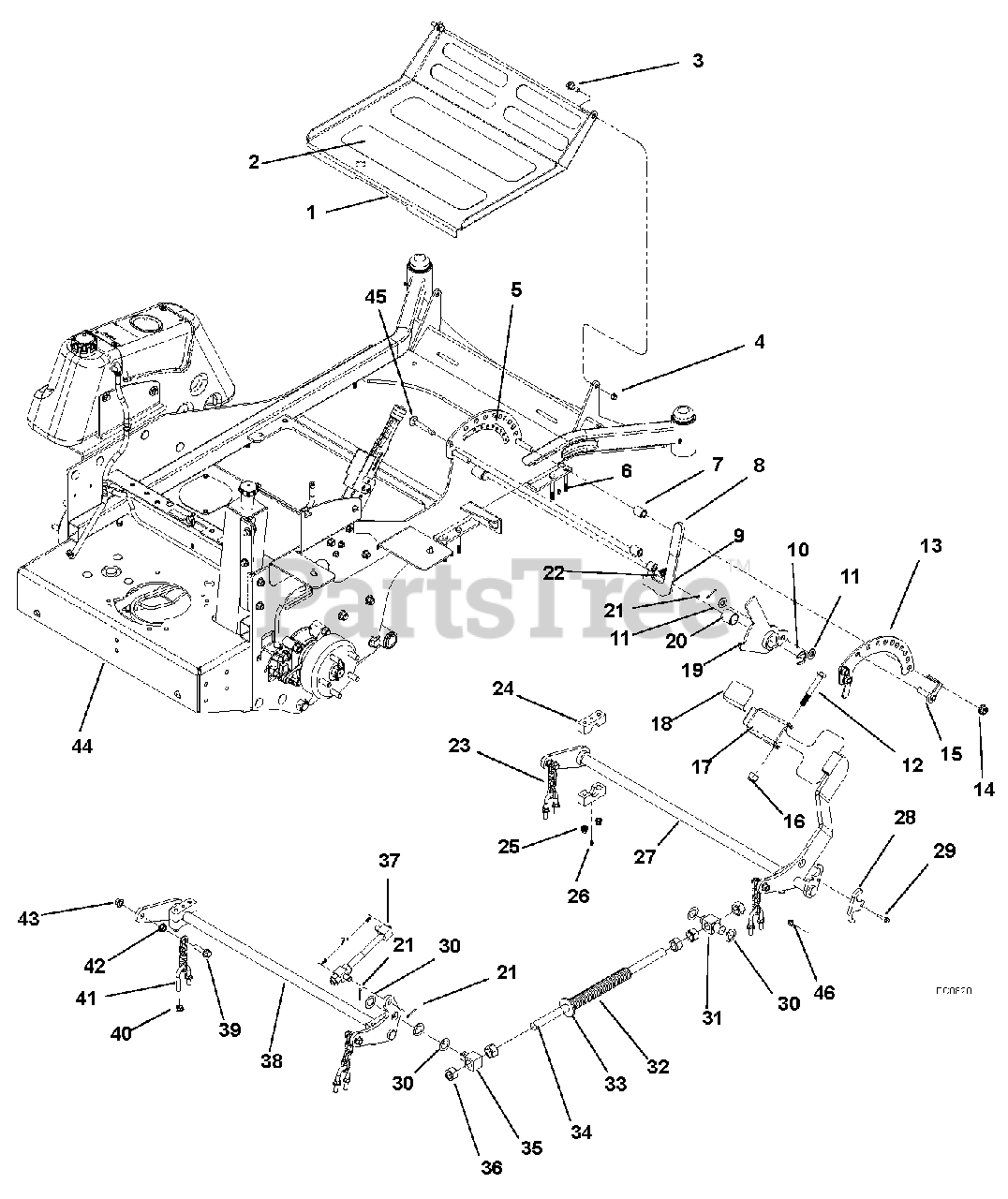

992409 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Frame, Footplate and Deck Lift Parts Diagram

Fury ZT Zero-Turn Mower

Frame, Footplate and Deck Lift Parts Diagram

  • Title

1

Gravely 03866761

WLDT, PLATFORM EVR

$

$

Not available

2

Gravely 00180658

TAPE, NON-SLIP - 4.00 X 18.00

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

5

Gravely 00200266

DECAL, HOC 1 - 4 1/2

$

$

Not available

6

Gravely 19M7803

SCREW,HEX,FL,JDS121,M8X1.25X70

$

$

Not available

7

Gravely 00200841

SPACER, HOC

$

$

Not available

8

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 03866551

WLDT, HOC RELEASE PAINTED

$

$

Not available

10

Gravely R58806

RING,RETAINING
(Superseded to 05700143)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 24H1111

WASHER, WROUGHT .531X1.062X.09

$

$

Not available

12

Gravely 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$5.49

$

In Stock, only 3 left!

0

13

Gravely 03867261

PLATE, OUTER HOC EVR

$

$

Not available

14

Gravely H137329

LOCKNUT, M12X1.75 DFLCTFLG 10Y

$

$

Not available

15

Gravely 00200355

WLDT, HOC PIN

$

$

Not available

16

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 03866351

PAD, FOOT LIFT BLK

$

$

Not available

18

Gravely 03873751

WLDT, HOC LIFT

$

$

Not available

19

Gravely 00385300

GRIP, FOOT PEDAL (MECH.LIFT)

$

$

Not available

20

Gravely W10728

BEARING

$

$

Not available

21

Gravely 11M7015

PIN,COTTER,DIN94,3.2X25-ST-ZN

$

$

Not available

22

Gravely TCU17371

SPRING, TORSION

$

$

Not available

23

Gravely 00150110

CHAIN, 4 LINKS 1/4" Y

$

$

Not available

24

Gravely TCU18697

BEARING, DECK LIFT

$

$

Not available

25

Gravely 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

26

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

27

Gravely 03866151

WLDT, LIFT ARM PAINTED

$

$

Not available

28

Gravely GDU10242

PLATE, LIFT LOCK

$

$

Not available

29

Gravely 19M7796

SCREW,HEX,FL,JDS123,M6X1X30-10

$

$

Not available

30

Gravely 24H1413

WASHER,JDS24-.891X1.375X.048-S

$3.99

$

Usually ships in 4-12 days

0

31

Gravely GDU10238

SWIVEL

$

$

Not available

32

Gravely D28200

SPRING, DECK LIFT

$

$

Not available

33

Gravely 24H1236

WASHER, METALLIC, ROUND HOLE

$

$

Not available

34

Gravely TCU16862

ROD

$

$

Not available

35

Gravely TCU17245

SWIVEL, DECK LIFT ASSIST ROD

$

$

Not available

36

Gravely 14H1058

NUT,3/4 UNC-2A A17F ZN HEX
(Superseded to 06537600)

$

$

Not available

37

Gravely GDA10075

LINK, LIFT ROD ASSEMBLY

$

$

Not available

38

Gravely GDA10092

WLDT, LIFT ARM

$

$

Not available

39

Gravely 19M8162

SCREW,HEX,FL,JDS121,M10X1.5X40

$

$

Not available

40

Gravely N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

41

Gravely GDU10048

U-BOLT

$

$

Not available

42

Gravely E63526

LOCKNUT, M10X1.50 WHIZ GR10 Y

$2.99

$

Usually ships in 4-12 days

0

43

Gravely 14M7518

LOCKNUT,FL,ISO7044,M10X1.5-10-

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 03865561

WLDT, FRAME EVR

$

$

Not available

45

Gravely 03M7204

BOLT,RH,SQNECK,JDS136,M12X1.75

$

$

Not available

46

Gravely H137327

LOCKNUT,FLG,M6X1 DEFLECTED THR

$

$

Not available
