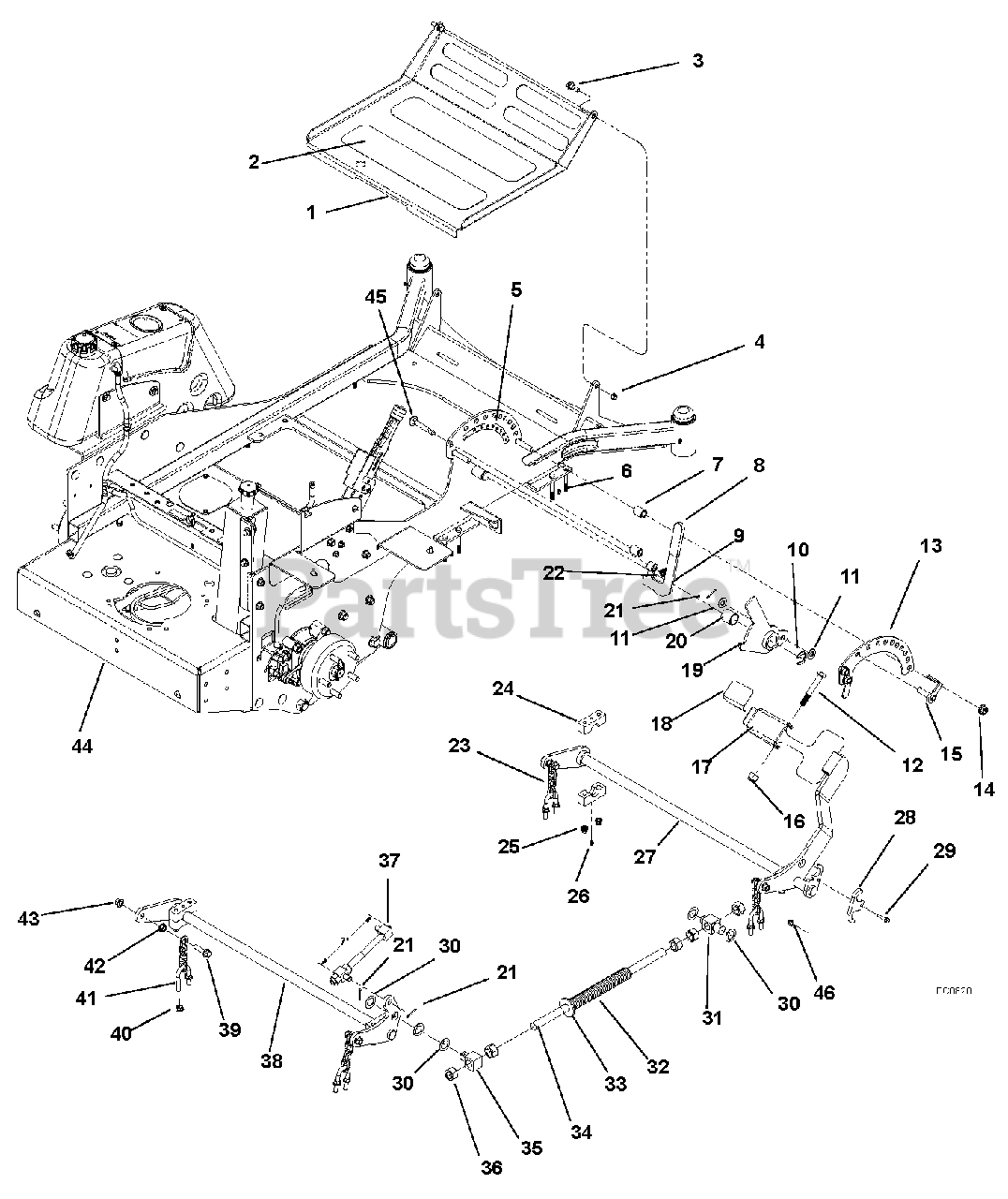

992409 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Frame, Footplate and Deck Lift Parts Diagram

Fury ZT Zero-Turn Mower

Frame, Footplate and Deck Lift Parts Diagram

  • Title

1

Gravely 03866761

1

$

$

Not available

2

Gravely 00180658

2

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 00135139

2
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00964022

2

$

$

Not available

5

Gravely 00200266

1

$

$

Not available

6

Gravely 19M7803

8

$

$

Not available

7

Gravely 00200841

2

$

$

Not available

8

Gravely D18079

1

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 03866551

1

$

$

Not available

10

Gravely R58806

1
(Superseded to 05700143)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 24H1111

3

$

$

Not available

12

Gravely 00960122

1
(Superseded to 05965800)

$5.49

$

In Stock, Qty 11

0

13

Gravely 03867261

1

$

$

Not available

14

Gravely H137329

13

$

$

Not available

15

Gravely 00200355

1

$

$

Not available

16

Gravely 00964015

1
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 03866351

1

$

$

Not available

18

Gravely 03873751

1

$

$

Not available

19

Gravely 00385300

1

$

$

Not available

20

Gravely W10728

1

$

$

Not available

21

Gravely 11M7015

3

$

$

Not available

22

Gravely TCU17371

1

$

$

Not available

23

Gravely 00150110

4

$

$

Not available

24

Gravely TCU18697

8

$

$

Not available

25

Gravely 14M7396

8

$

$

Not available

26

Gravely 00959995

9

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 03866151

1

$

$

Not available

28

Gravely GDU10242

1

$

$

Not available

29

Gravely 19M7796

1

$

$

Not available

30

Gravely 24H1413

5

$3.99

$

Usually ships in 4-12 days

0

31

Gravely GDU10238

1

$

$

Not available

32

Gravely D28200

1

$

$

Not available

33

Gravely 24H1236

1

$

$

Not available

34

Gravely TCU16862

1

$

$

Not available

35

Gravely TCU17245

1

$

$

Not available

36

Gravely 14H1058

5
(Superseded to 06537600)

$

$

Not available

37

Gravely GDA10075

1

$

$

Not available

38

Gravely GDA10092

1

$

$

Not available

39

Gravely 19M8162

6

$

$

Not available

40

Gravely N10215

8

$

$

Not available

41

Gravely GDU10048

4

$

$

Not available

42

Gravely E63526

4

$2.99

$

Usually ships in 4-12 days

0

43

Gravely 14M7518

22

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 03865561

1

$

$

Not available

45

Gravely 03M7204

3

$

$

Not available

46

Gravely H137327

1

$

$

Not available
