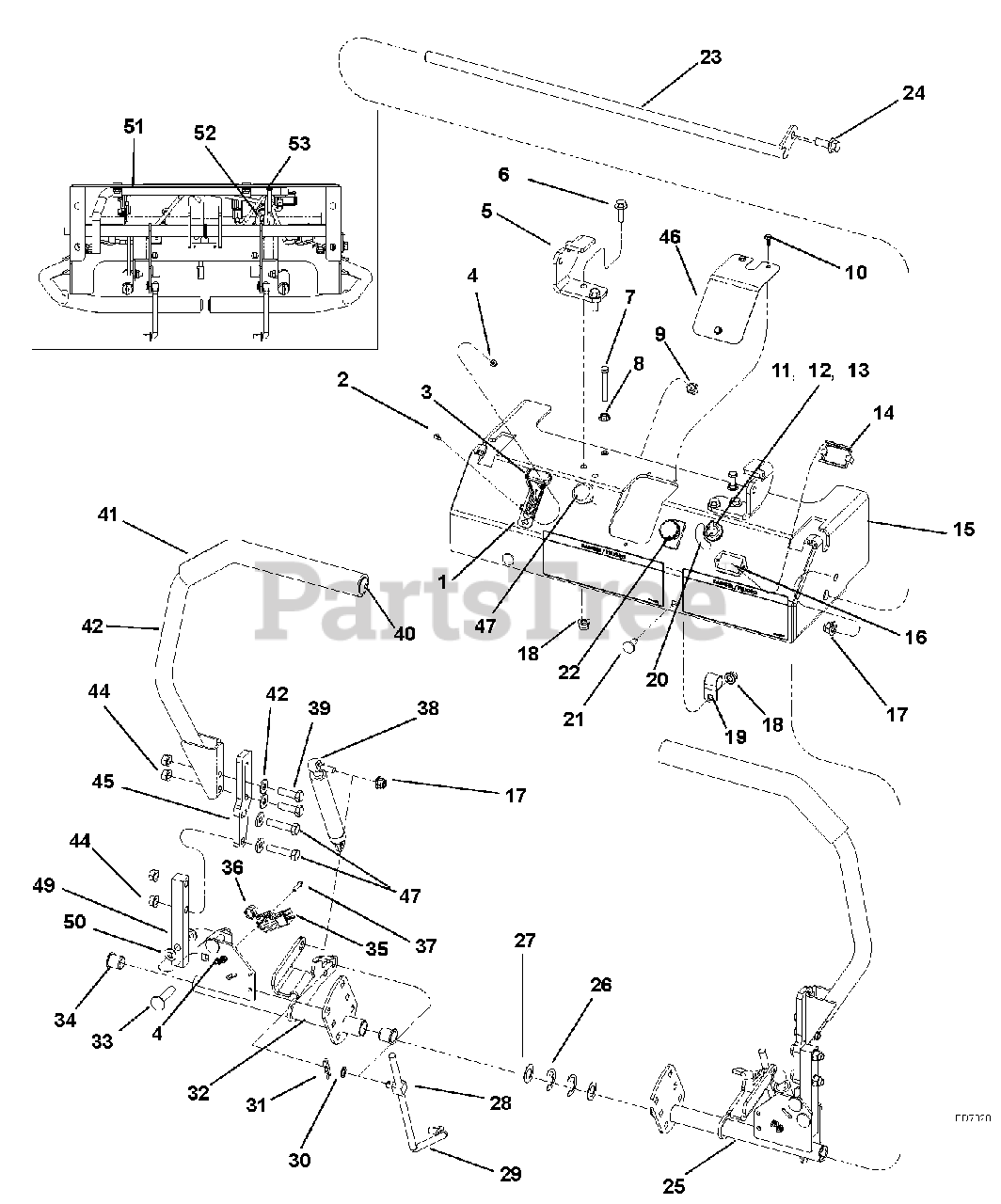

992409 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Steering Levers and Control Panel Parts Diagram

Fury ZT Zero-Turn Mower

Steering Levers and Control Panel Parts Diagram

  • Title

1

Gravely D28167

DECAL, CONSOLE

$

$

Not available

1

Gravely D28167

1

$

$

Not available

2

Gravely 21H1158

SCREW,.164 X .500 ZN RD HD MACH

$

$

Not available

2

Gravely 21H1158

2

$

$

Not available

3

Gravely 00200591

THROTTLE

$34.99

$

In Stock, only 1 left!

0

3

Gravely 00200591

1

$34.99

$

In Stock, only 1 left!

0

4

Gravely M63431

NUT, 8-32 ELASTIC STOP

$

$

Not available

4

Gravely M63431

6

$

$

Not available

5

Gravely 03867661

BRACKET, LH, SEAT PLATE

$

$

Not available

5

Gravely 03867661

1

$

$

Not available

Gravely 03867761

BRACKET, RH, SEAT PLATE

$

$

Not available

Gravely 03867761

1

$

$

Not available

6

Gravely 19M7867

SCREW, HEX, FL, JDS123, M8 X 1.25 X 25

$

$

Not available

6

Gravely 19M7867

4

$

$

Not available

7

Gravely D14133

BOLT, 1/4-20 X 2.00 HEX 5 Y

$

$

Not available

7

Gravely D14133

2

$

$

Not available

8

Gravely N10217

SPINLOCK NUT - 1/4

$

$

Not available

8

Gravely N10217

2

$

$

Not available

9

Gravely 14H1080

NUT, .375 UNF2B HEX JDS14 8 ZN

$

$

Not available

9

Gravely 14H1080

1

$

$

Not available

10

Gravely 07415800

SCREW, TAP 10-24 X .50 HEX WASHER HEAD
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

10

Gravely 07415800

3
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

11

Gravely TCU17401

KEY, IGNITION A880

$9.99

$

Usually ships in 4-12 days

0

11

Gravely TCU17401

1

$9.99

$

Usually ships in 4-12 days

0

12

Gravely M110159

NUT, KNURLED

$

$

Not available

12

Gravely M110159

1

$

$

Not available

13

Gravely TCA15075

SWITCH, IGNITION KEY

$37.99

$

Usually ships in 4-12 days

0

13

Gravely TCA15075

1

$37.99

$

Usually ships in 4-12 days

0

14

Gravely TCU13098

CLIP, ZTRAK HOURMETER RETAINING

$

$

Not available

14

Gravely TCU13098

1

$

$

Not available

15

Gravely 03867361

WLDT, CONSOLE

$

$

Not available

15

Gravely 03867361

1

$

$

Not available

16

Gravely AM129887

METER, HOUR - LCD

$

$

Not available

16

Gravely AM129887

1

$

$

Not available

17

Gravely 14M7400

LOCKNUT, FL, ISO7043, M10 X 1.5-10

$

$

Not available

17

Gravely 14M7400

1

$

$

Not available

18

Gravely 14M7396

LOCKNUT, FL, ISO7043, M8 X 1.25

$

$

Not available

18

Gravely 14M7396

8

$

$

Not available

19

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

19

Gravely E53830

2

$3.99

$

Usually ships in 4-12 days

0

20

Gravely M127610

LABEL, IGNITION KEY

$

$

Not available

20

Gravely M127610

1

$

$

Not available

21

Gravely 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

21

Gravely 03M7184

2

$

$

Not available

22

Gravely AM118802

SWITCH, PTO (PULL/PUSH)

Note: (PULL/PUSH)

$26.99

$

Usually ships in 4-12 days

0

22

Gravely AM118802

1

$26.99

$

Usually ships in 4-12 days

0

23

Gravely TCA13253

PIVOT, CONTROL SHAFT - PLATED

$

$

Not available

23

Gravely TCA13253

1

$

$

Not available

24

Gravely 19M7785

SCREW, HEX M10X1.5X25

$

$

Not available

24

Gravely 19M7785

1

$

$

Not available

25

Gravely 03867551

WLDT, PIVOT CONTROL LH

$

$

Not available

25

Gravely 03867551

1

$

$

Not available

26

Gravely P46402

RING, RETAINING

$

$

Not available

26

Gravely P46402

2

$

$

Not available

27

Gravely 00200397

WASHER, .627 X 1.09 X .030 THST Y

$

$

Not available

27

Gravely 00200397

2

$

$

Not available

28

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

28

Gravely D33002

2

$10.99

$

Usually ships in 4-12 days

0

29

Gravely TCU17400

ROD, CONTROL

$

$

Not available

29

Gravely TCU17400

2

$

$

Not available

30

Gravely 24M7388

SHIM, CIRCULAR

$

$

Not available

30

Gravely 24M7388

2

$

$

Not available

31

Gravely J16931

PIN, HAIR .094 X 1.53 5/16-1/2 Y

$

$

Not available

31

Gravely J16931

2

$

$

Not available

32

Gravely 03867451

WLDT, PIVOT CONTROL RH

$

$

Not available

32

Gravely 03867451

1

$

$

Not available

33

Gravely 03M7195

BOLT, RH, SQNECK, JDS137, M10 X 1.5

$

$

Not available

33

Gravely 03M7195

4

$

$

Not available

34

Gravely M44508

BUSHING, NYLON

$

$

Not available

34

Gravely M44508

4

$

$

Not available

35

Gravely 00191256

SWITCH, PLUNGER DP - N.O. - N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

35

Gravely 00191256

2
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

36

Gravely 14M7517

LOCKNUT,DIN6924,M10X1.5-10-ZN

$

$

Not available

36

Gravely 14M7517

4

$

$

Not available

37

Gravely D14288

SCREW, 8-32X .75 PAN PHL Y

$

$

Not available

37

Gravely D14288

4

$

$

Not available

38

Gravely TCA15322

ABSORBER, ASM. WITH BALL STUD

$

$

Not available

38

Gravely TCA15322

2

$

$

Not available

39

Gravely 00960047

BOLT, 3/8-16 X 1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, only 3 left!

0

39

Gravely 00960047

4
(Superseded to 05958000)

$1.49

$

In Stock, only 3 left!

0

40

Gravely 00180639

PLUG, 7/8" END

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 00180639

2

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 00180617

GRIP, FOAM

$37.99

$

In Stock, only 2 left!

0

41

Gravely 00180617

2

$37.99

$

In Stock, only 2 left!

0

42

Gravely 03867151

2

$

$

Not available

42

Gravely 03867151

WLDT, CONTROL LEVER

$

$

Not available

43

Gravely 00960701

8
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0

43

Gravely 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0

44

Gravely 00964016

8
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 03818251

2

$

$

Not available

45

Gravely 03818251

PLATE, LEVER ADJ.

$

$

Not available

46

Gravely 3865351

1

$

$

Not available

46

Gravely 03865351

COVER, CONSOLE

$

$

Not available

47

Gravely D38146

1

$

$

Not available

47

Gravely D38146

CABLE, CHOKE

$

$

Not available

48

Gravely 00960049

4
(Superseded to 05958500)

$1.49

$

In Stock, only 3 left!

0

48

Gravely 00960049

BOLT, 3/8-16 X 1.75 HEX 5 Y
(Superseded to 05958500)

$1.49

$

In Stock, only 3 left!

0

49

Gravely 03866900

2

$

$

Not available

49

Gravely 03866900

ARM, CONTROL

$

$

Not available

50

Gravely 06433600

4

$0.99

$

In Stock, Qty 14

0

50

Gravely 06433600

WASHER, FLAT NYLON .375 X .75 X .060 REV

$0.99

$

In Stock, Qty 14

0

51

Gravely GDA10037

1

$

$

Not available

51

Gravely GDA10037

WIRING HARNESS

$

$

Not available

52

Gravely 24M7349

2

$

$

Not available

52

Gravely 24M7349

WASHER, M21 X 37 X 3 DIN 125T2 300HV Y

$

$

Not available

53

Gravely 00967001

1

$

$

Not available

53

Gravely 00967001

CABLE TIE, .31 X 14.6 - BLACK

$

$

Not available
