992411 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) 61 inch mower deck Parts Diagram

Fury ZT Zero-Turn Mower

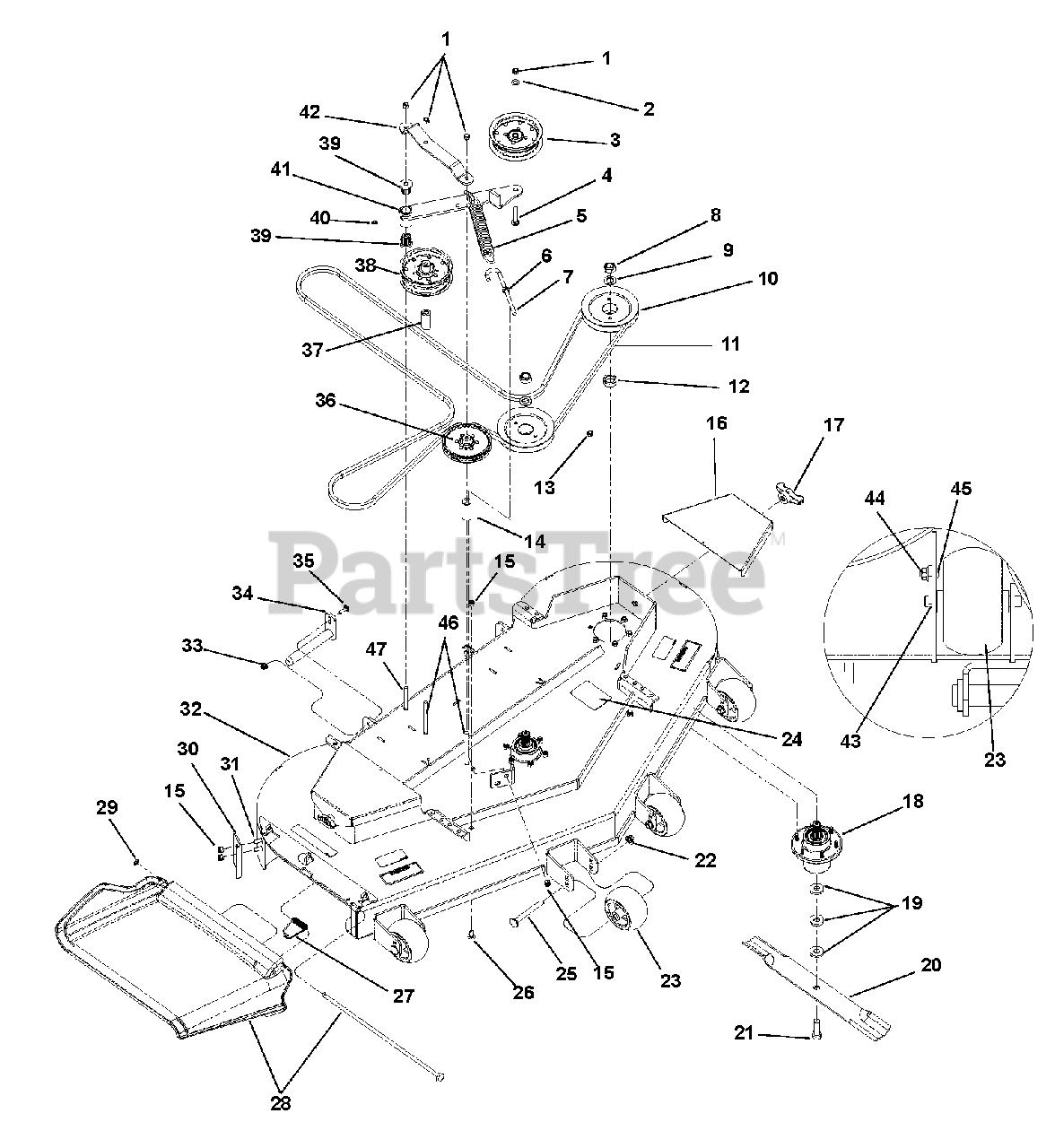

61 inch mower deck Parts Diagram

  • Title

1

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

2

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

4

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$4.99

$

In Stock, Qty 9

0

5

Gravely D28025

SPRING, DECK IDLER

$30.99

$

In Stock, Qty 7

0

6

Gravely N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

7

Gravely D13005

J-HOOK,IDLER

$

$

Not available

8

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

9

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

10

Gravely D18211

HUB, LARGE PULLEY/ TALL
(Superseded to 07328467)

$116.99

$

In Stock, Qty 6

0

11

Gravely GDU10228

BELT,V

$152.99

$

Usually ships in 4-12 days

0

12

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

13

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

14

Gravely GDU10181

SPACER, .437X1.00X2.50 SMLS

$

$

Not available

15

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

16

Gravely 03868761

COVER, BELT

$

$

Not available

17

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

18

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

19

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, only 3 left!

0

20

Gravely GDU10232

BLADE, 21.000 X .80 LIFT

$31.99

$

In Stock, Qty 7

0

21

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 6

0

22

Gravely E62934

LOCKNUT 1/2 W/FLANGE

$

$

Not available

23

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, Qty 14

0

24

Gravely GDU10262

DECAL, BELT PATH (48,52,61)

$

$

Not available

25

Gravely 03H1853

BOLT, 1/2-13X4.50 CRG 5 Y

$

$

Not available

26

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

27

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.49

$

Usually ships in 4-12 days

0

28

Gravely AM127488

CHUTE, ASSEMBLY #

$

$

Not available

29

Gravely H141123

RETAINER #

$

$

Not available

30

Gravely 03754061

PLATE, EXTENDER EVERRIDE DECK

$

$

Not available

31

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

32

Gravely 03868100

ASSY, DECK W/DECALS 61

$

$

Not available

33

Gravely 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

34

Gravely TCA13292

PIN, WELDED

$

$

Not available

35

Gravely 03M7185

BOLT,RH,SQNECK,JDS137,M8X1.25X

$

$

Not available

36

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

37

Gravely GDU10180

SPACER, .437X1.00X2.25 SMLS

$

$

Not available

38

Gravely TCA14548

PULLEY, FLAT 5.25X.375 W/BRG

$131.99

$

In Stock, only 4 left!

0

39

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

40

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 1 left!

0

41

Gravely TCA15346

ARM, IDLER *

$145.99

$

In Stock, only 3 left!

0

42

Gravely GDU10119

STRAP, IDLER PULLEY

$

$

Not available

43

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 5

0

44

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

45

Gravely 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 03H1838

BLT-RDHDSQNK .38-16X5.0 YWZC

$

$

Not available

47

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available
