992411 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) Seat, Electrical and Powertrain 992411 Parts Diagram

Fury ZT Zero-Turn Mower

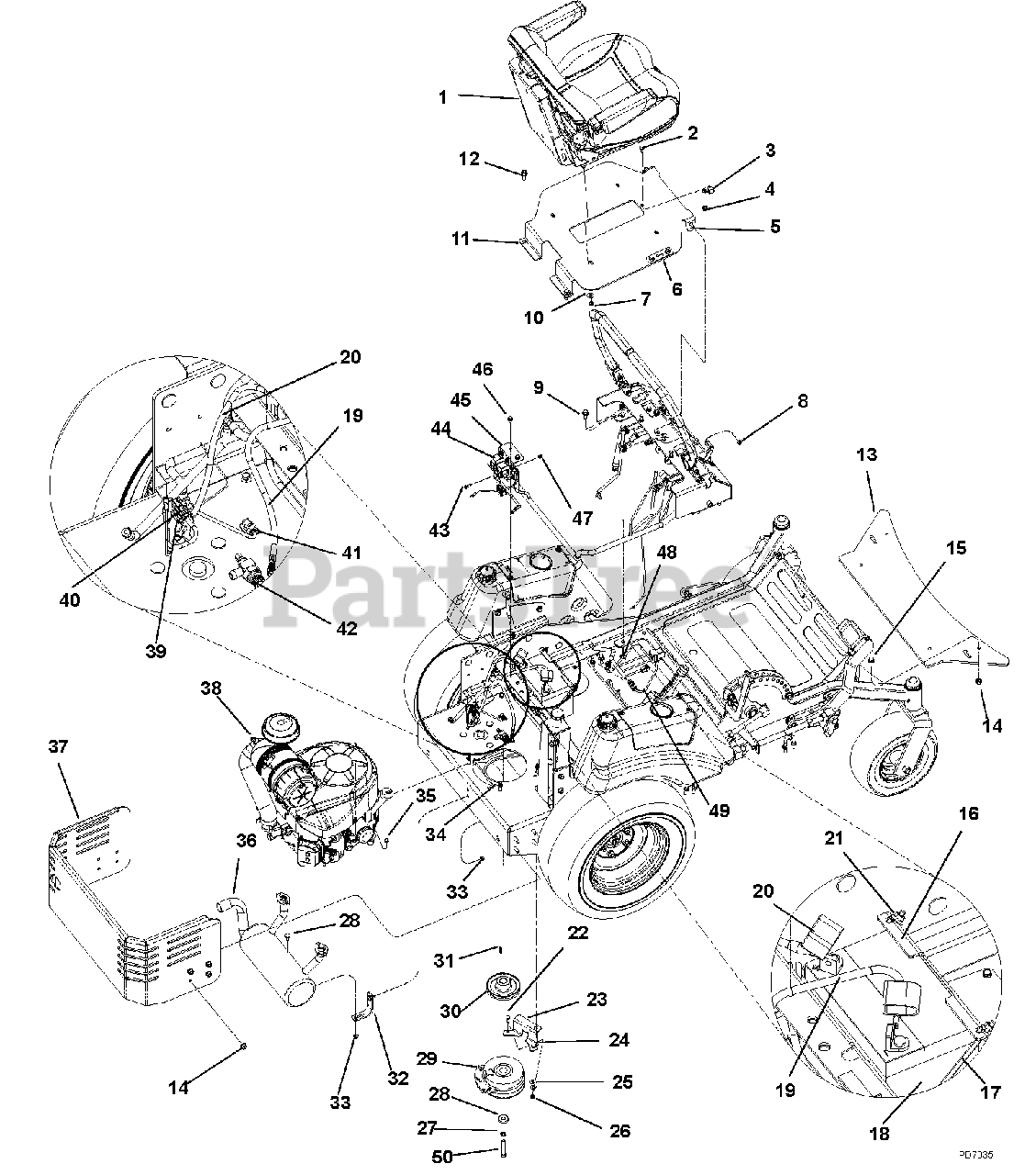

Seat, Electrical and Powertrain 992411 Parts Diagram

  • Title

1

Gravely 00180916

SEAT, FULL SUSPENSION

$

$

Not available

2

Gravely 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

3

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

5

Gravely 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely TCU14862

LABEL - PARK BRAKE DIRECTION

$

$

Not available

7

Gravely D14081

LOCKNUT, 5/16-18 NYLOC Y

$

$

Not available

8

Gravely K40003

NUT, 3/8 LOCK

$

$

Not available

9

Gravely 19M7785

SCREW,HEX,FL,JDS123,M10X1.5X25

$

$

Not available

10

Gravely 24H1887

WASHER, .344X1.00X.134 FLAT Y

$

$

Not available

11

Gravely 03865461

PLATE, SEAT

$

$

Not available

12

Gravely 19M7786

SCREW,HEX,FL,JDS123,M10X1.5X30

$

$

Not available

13

Gravely 03869061

PLATE, WEIGHT

$

$

Not available

14

Gravely 14M7518

LOCKNUT,FL,ISO7044,M10X1.5-10-

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 19M8162

SCREW,HEX,FL,JDS121,M10X1.5X40

$

$

Not available

16

Gravely GDU10204

HOLDER, BATTERY

$

$

Not available

17

Gravely D23047

J BOLT

$

$

Not available

18

Gravely 00181779

BATTERY, 12V-U1-CCA400MIN

$

$

Not available

19

Gravely 00180843

CABLE, BATTERY - 20" GROUND

$

$

Not available

20

Gravely D28118

CABLE, BATTERY POSITIVE

$

$

Not available

21

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

22

Gravely 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

23

Gravely 00200824

BRACKET, CLUTCH STOP

$

$

Not available

24

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 00960700

MANUAL,OWNERS RAPID XZ TRACTOR

$

$

Not available

26

Gravely 00967279

LOCKNUT, 5/16-18 CENTER Y

$

$

Not available

27

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 20+

0

28

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

29

Gravely GDA10017

CLUTCH

$526.99

$

Usually ships in 4-12 days

0

30

Gravely 00200318

PULLEY, V-BELT 4.78PD X 1.000

$58.99

$

Usually ships in 4-12 days

0

31

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0

32

Gravely D22236

BRACKET, MUFFLER

$

$

Not available

33

Gravely H137328

LOCKNUT,M8X1.25,FLANGED ZN

$

$

Not available

34

Gravely 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

35

Gravely 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$6.49

$

Usually ships in 4-12 days

0

36

Gravely TCA14018

MUFFLER, MINI-Z

$284.99

$

In Stock, only 1 left!

0

37

Gravely 03862761

BUMPER, REAR EKW

$

$

Not available

38

Gravely GDA10120

COMPLETE BLOCK ASSEMBLY, 25 KA

$

$

Not available

39

Gravely GDA10055

HARNESS, PIGTAIL

$

$

Not available

40

Gravely 00200924

FUSIBLE LINK, 10"

$15.99

$

Usually ships in 4-12 days

0

41

Gravely 00200302

HARNESS. SEAT RELAY

$

$

Not available

42

Gravely TCA16240

FITTING, OIL DRAIN #

$

$

Not available

43

Gravely 19M7775

SCREW,FL,JDS123,M6X1X16-10.9-Z

$

$

Not available

44

Gravely AM123716

RELAY, SEALED W/BRACKET

$38.99

$

In Stock, only 4 left!

0

45

Gravely GDU10170

BRACKET, ELECTRIC MOUNTING

$

$

Not available

46

Gravely 19M7865

SCREW,HEX,FL,JDS123,M8X1.25X16

$

$

Not available

47

Gravely D38018

HARNESS, WIRING

$

$

Not available

48

Gravely 14M7397

LOCKNUT,FL,ISO7043,M6X1.00-10-
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely E63526

LOCKNUT, M10X1.50 WHIZ GR10 Y

$2.99

$

Usually ships in 4-12 days

0

50

Gravely 00967394

BOLT, 7/16-20X2.75 HEX 5 Y

$

$

Not available
