992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 006000 - 009999) Deck Stabilizer Arms and Belt Guards - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

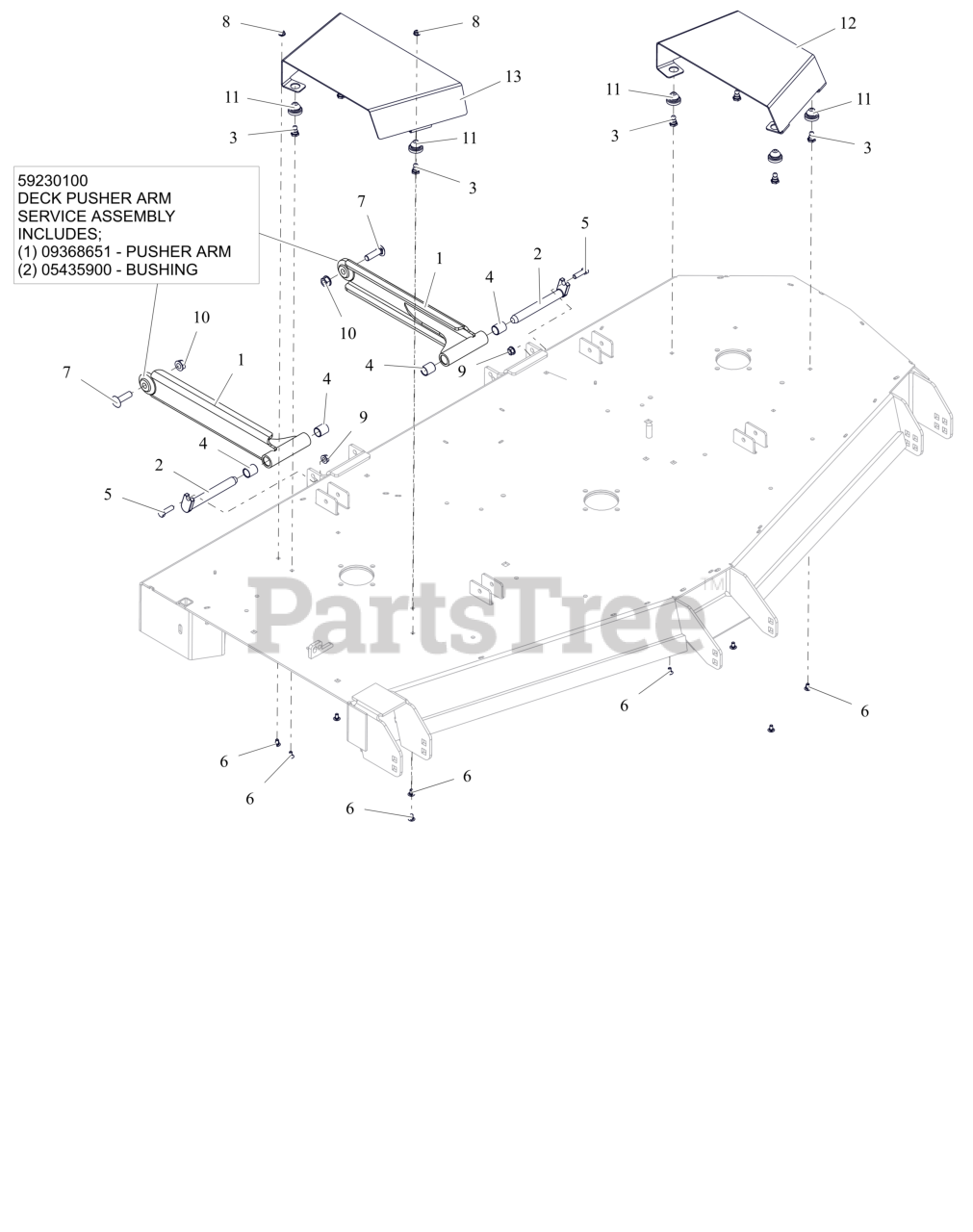

Deck Stabilizer Arms and Belt Guards - 72" Parts Diagram

  • Title

1

Gravely 09368651

WLDMT, DECK STABILIZER ARM (BLACK)

$104.99

$

Usually ships in 4-12 days

0

1

Gravely 59230100

DECK PUSHER ARM SERVICE ASSEMBLY

Note: Service Part Assembly

$171.99

$

Usually ships in 4-12 days

0

1

Gravely 09368651

WLDMT, DECK STABILIZER ARM (BLACK)

Note: Service Part Component

$104.99

$

Usually ships in 4-12 days

0

1

Gravely 05435900

BRG, .750 X .875 X 1.000

Note: Service Part Component

$6.99

$

In Stock, Qty 20+

0

2

Gravely 05157900

PIN, MOWER MTG

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 05275900

STUD, BALL FEMALE .250-20 THREAD

$9.99

$

In Stock, Qty 20+

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

6

Gravely 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.99

$

In Stock, Qty 13

0

7

Gravely 06200439

BTL,RHSSN .500-13 X 1.75 G5 ZCC

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07500429

COUPLING, RUBBER PUSH-IN

$2.49

$

In Stock, Qty 13

0

12

Gravely 09373853

GUARD, LH DECK BELT 72" (RED)

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 09373953

GUARD, RH DECK BELT 72" (RED)

$55.99

$

Usually ships in 4-12 days

0
