992502 (Pro-Turn 672) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 010000 & Above) Steering Controls Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

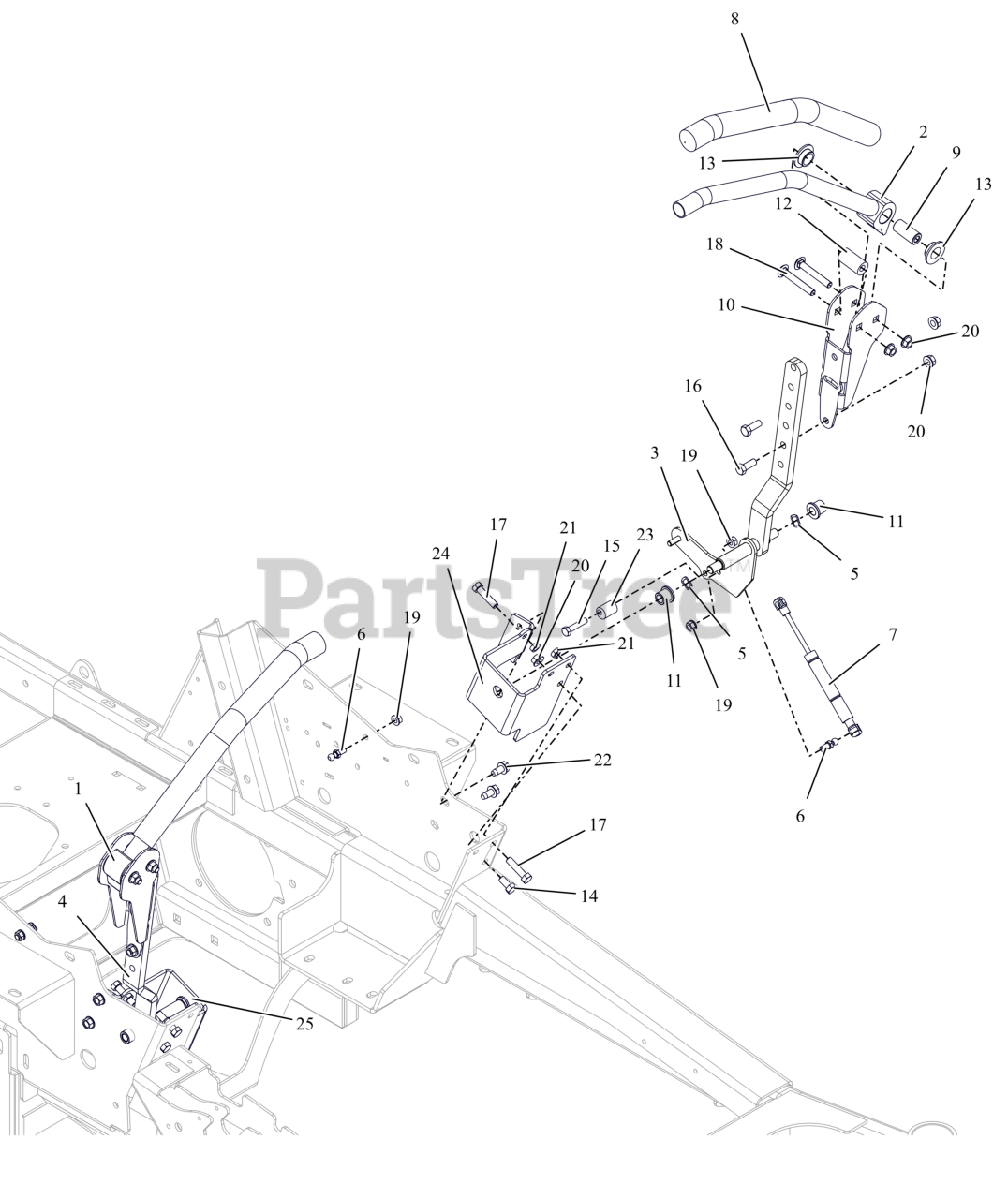

Steering Controls Parts Diagram

  • Title

1

Gravely 05261853

WLDMT, CONTROL HANDLE (RED)

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 05262153

WLDMT, CONTROL HANDLE (RED)

$67.99

$

Usually ships in 4-12 days

0

3

Gravely 09371853

WLDMT, LH LOWER CONTROL ARM (RED)

$94.99

$

Usually ships in 4-12 days

0

4

Gravely 09371953

WLDMT, RH LOWER CONTROL ARM (RED)

$94.99

$

Usually ships in 4-12 days

0

5

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

7

Gravely 30151500

DAMPER, CONTROL

$33.99

$

In Stock, only 2 left!

0

8

Gravely 04383600

GRIP, HANDLEBAR

$36.99

$

In Stock, Qty 6

0

9

Gravely 04413600

SPACER, STEERING ARM

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 05068753

BRKT, ADJ UPPER CONTROL ARM (RED)

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$5.49

$

In Stock, Qty 20+

0

12

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.49

$

In Stock, only 2 left!

0

13

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 11

0

15

Gravely 05901710

BLT, HEX .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 6

0

16

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05902114

BLT, HEX 0.375-16X1.5FULL G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

23

Gravely 09235700

ECCENTRIC

$5.49

$

Usually ships in 4-12 days

0

24

Gravely 09372653

BRKT, CONTROL ARM - LEFT (RED)

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 09372753

BRKT, CONTROL ARM - RIGHT (RED)

$38.99

$

Usually ships in 4-12 days

0
