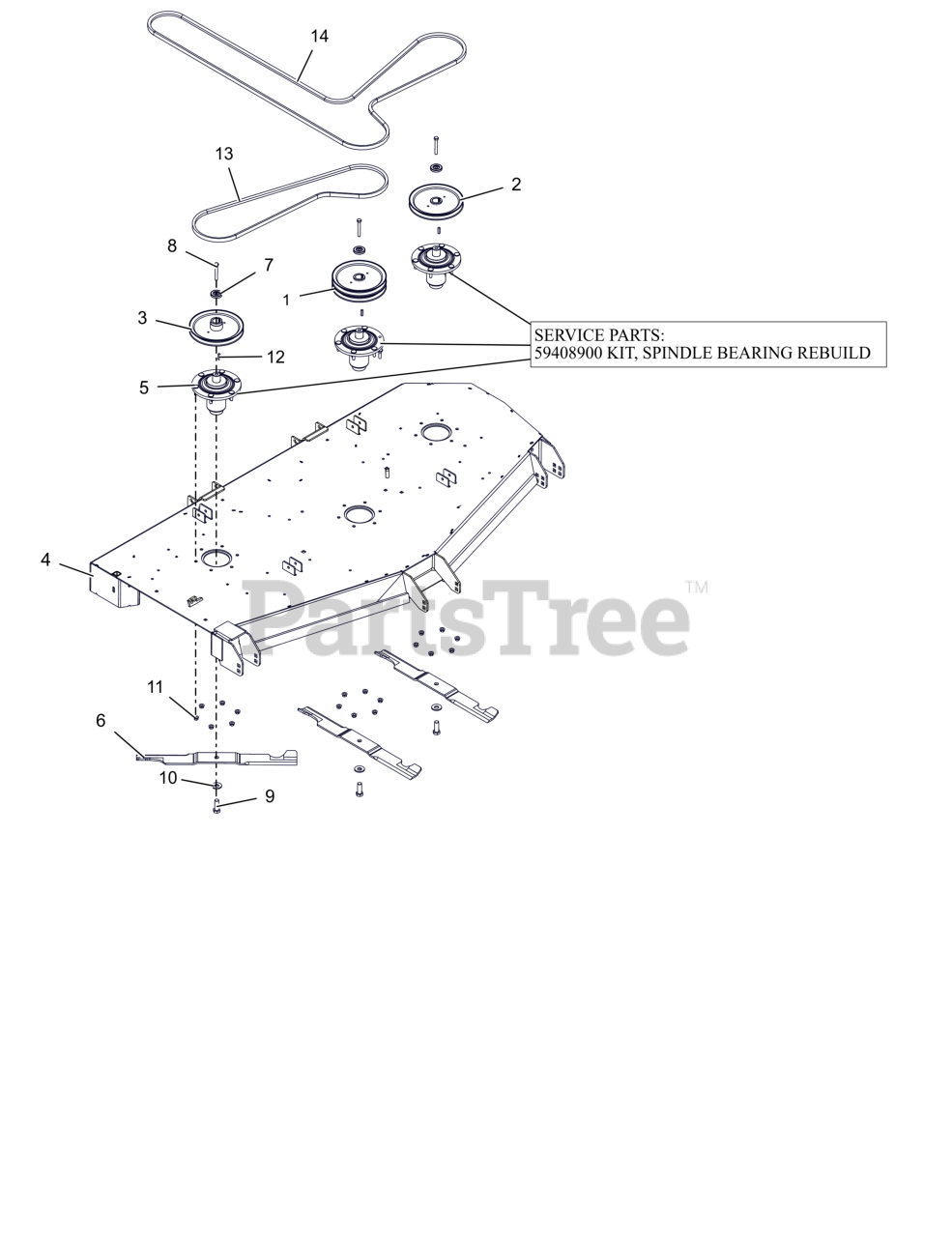

992505 (Pro-Turn 652) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 035000 & Above) Deck, Spindles, Belts and Blades - 72" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Deck, Spindles, Belts and Blades - 72" Parts Diagram

  • Title

1

Gravely 07354500

PULLEY, DBL - 1.18IDX8.25OD ZCC

$121.99

$

Usually ships in 4-12 days

0

2

Gravely 07354600

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 07354700

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 59231800

WLDMT, 72 INCH SIDE DISCH DECK (RED) W/SAFETY DECALS

$1761.99

$

Usually ships in 4-12 days

0

5

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$360.99

$

Usually ships in 4-12 days

0

5

Gravely 59408900

KIT, SPINDLE BEARING REBUILD KIT

Note: Component Service Part

$136.99

$

Usually ships in 4-12 days

0

6

Gravely 04774600

BLADE, 72"

$38.99

$

In Stock, Qty 20+

0

7

Gravely 30226600

RETAINER, SHEAVE

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

13

Gravely 07200039

V-BELT, B-COGGED

$79.99

$

In Stock, Qty 15

0

14

Gravely 07200906

V-BELT, B SECTION

$149.99

$

In Stock, Qty 5

0
