992511 (Pro-Turn 560) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 020000 - 039999) Anti-Scalp Wheels and Deck Stops - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

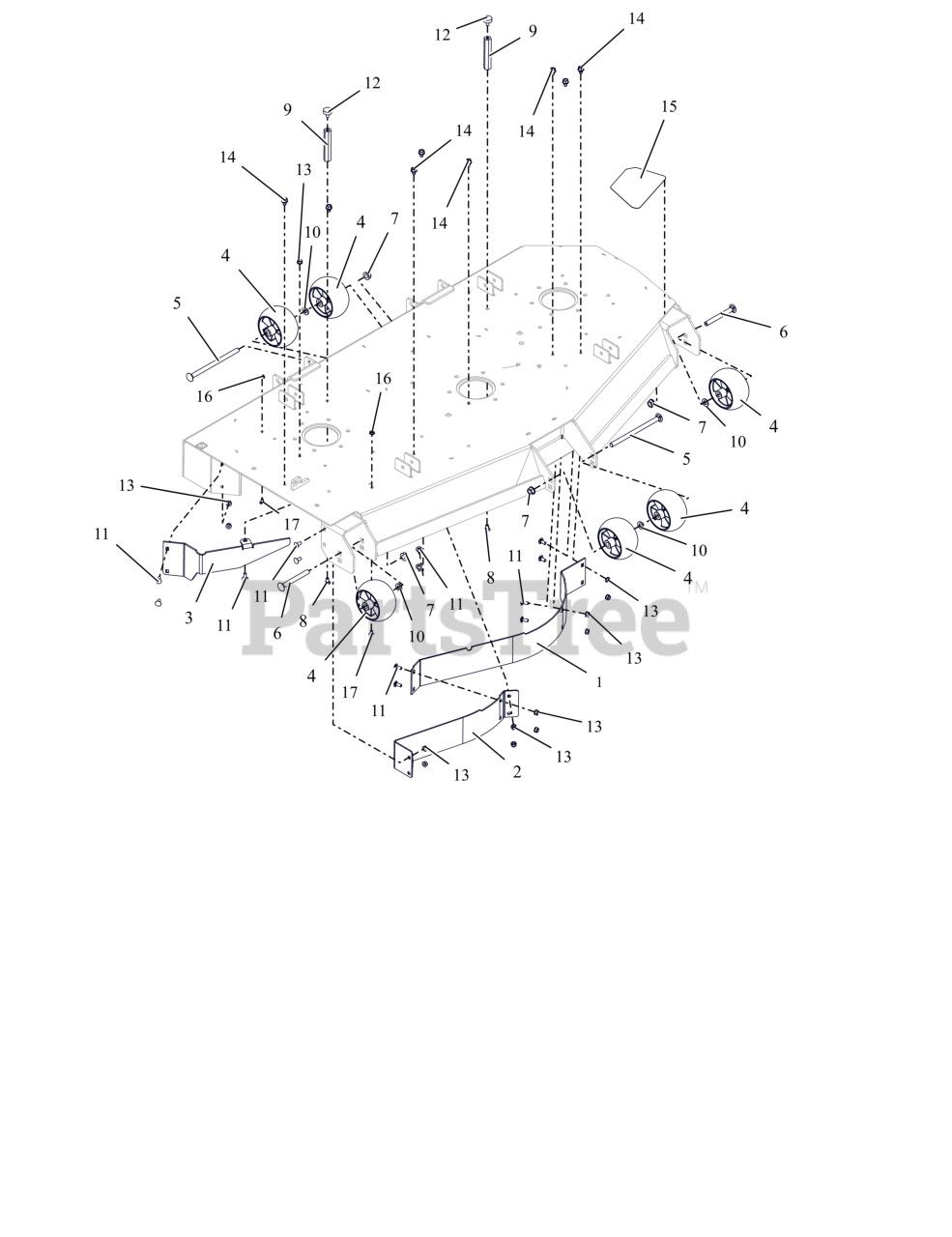

Anti-Scalp Wheels and Deck Stops - 60" Parts Diagram

  • Title

1

Gravely 30257653

BAFFLE, FRONT CENTER 60 INCH (RED)

$

$

Currently unavailable

2

Gravely 30257753

BAFFLE, FRONT DISCHARGE 60 INCH (RED)

$

$

Currently unavailable

3

Gravely 30257853

BAFFLE, DISCHARGE 60 INCH (RED)

$

$

Currently unavailable

4

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$12.99

$

In Stock, Qty 20+

0

5

Gravely 06200506

BLT,RHSN .50-13X8.00 G5 ZCC NS
(Superseded to 06200512)

$6.49

$

In Stock, Qty 20+

0

6

Gravely 06200505

BLT,RHNS .50-13X4.50 G5 ZCC NS
(Superseded to 06200511)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200304

BTL,RHSSN .313-18 X 0.625 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

9

Gravely 07001915

NUT, COUPLING .312-18 X 4.295

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 06401308

WSHR,WAVE- TPE .525 X 1.00 X .090

$

$

Currently unavailable

11

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 13

0

12

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05286500

GRIP, STEP ANTI SKID
(Superseded to 05291700)

$58.99

$

Usually ships in 4-12 days

0

16

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 6

0

17

Gravely 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.99

$

In Stock, Qty 5

0
