992515 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 000399) Parking Brake - Upper Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

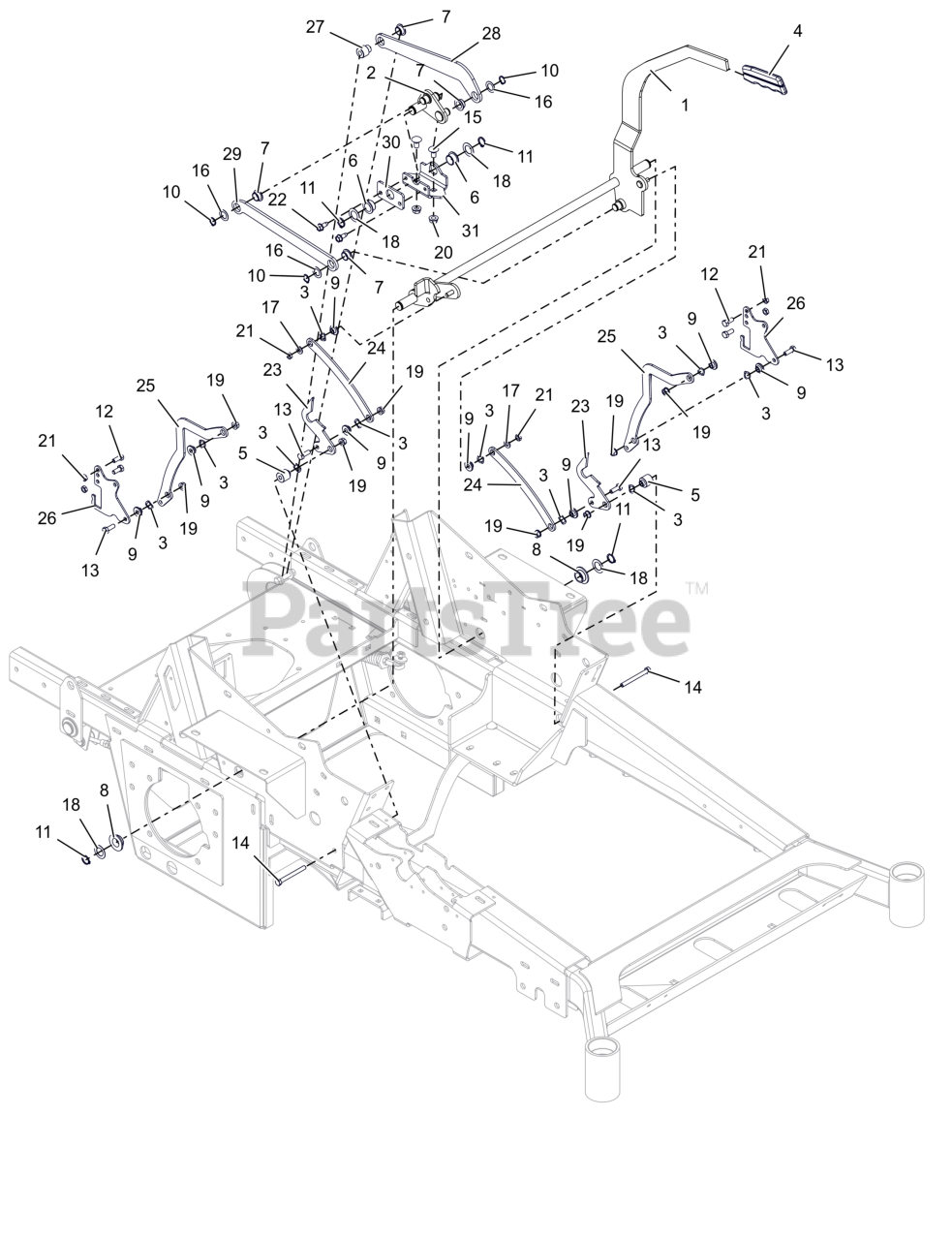

Parking Brake - Upper Parts Diagram

  • Title

1

Gravely 09372267

WLDMT, PARKING BRAKE ARM (BLACK)

$

$

Currently unavailable

2

Gravely 09435100

WLDMT, BRAKE ACTIVATION PIVOT

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05097200

GRIP, PARKING (GRAY)

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05501415

BUSHING FLANGED - .318X.500X.972X.875

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05501436

BSHG, FLANGE .750 X .875 X .5000 X 1.125

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05501437

BSHG, FLANGE .625 X .750 X .375 X 1.000

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

12

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.99

$

In Stock, Qty 9

0

14

Gravely 05901933

BLT, HEX .31-18X3.00 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06200312

BLT, RHSN .38-16X.750 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

16

Gravely 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 19

0

17

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500913

NUT-LK-CTR-JAM .312-18 GB ZCC

$1.49

$

In Stock, Qty 7

0

22

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, only 4 left!

0

23

Gravely 09372951

BRKT, BRAKE - RTN (BLACK)

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 09373051

BRKT, LINK - BREAK RTN (BLACK)

$13.99

$

Usually ships in 4-12 days

0

25

Gravely 09373151

BRKT, LINK - SPEED CONTROL HTG

$23.99

$

In Stock, only 1 left!

0

26

Gravely 09373251

BRKT, SPEED - HTG (BLACK)

$13.99

$

Usually ships in 4-12 days

0

27

Gravely 09429800

SPCR,

$6.99

$

Usually ships in 4-12 days

0

28

Gravely 09429900

LINK, BRAKE ACTIVATION REAR

$13.99

$

Usually ships in 4-12 days

0

29

Gravely 09435000

LINK, BRAKE ACTIVATING FRONT

$13.99

$

Usually ships in 4-12 days

0

30

Gravely 09435200

PLATE, BSHG MOUNTING

$6.99

$

Usually ships in 4-12 days

0

31

Gravely 09435300

BRKT, BSHG MTG

$13.99

$

Usually ships in 4-12 days

0
