992515 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 009999) Deck Lift - Height of Cut Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

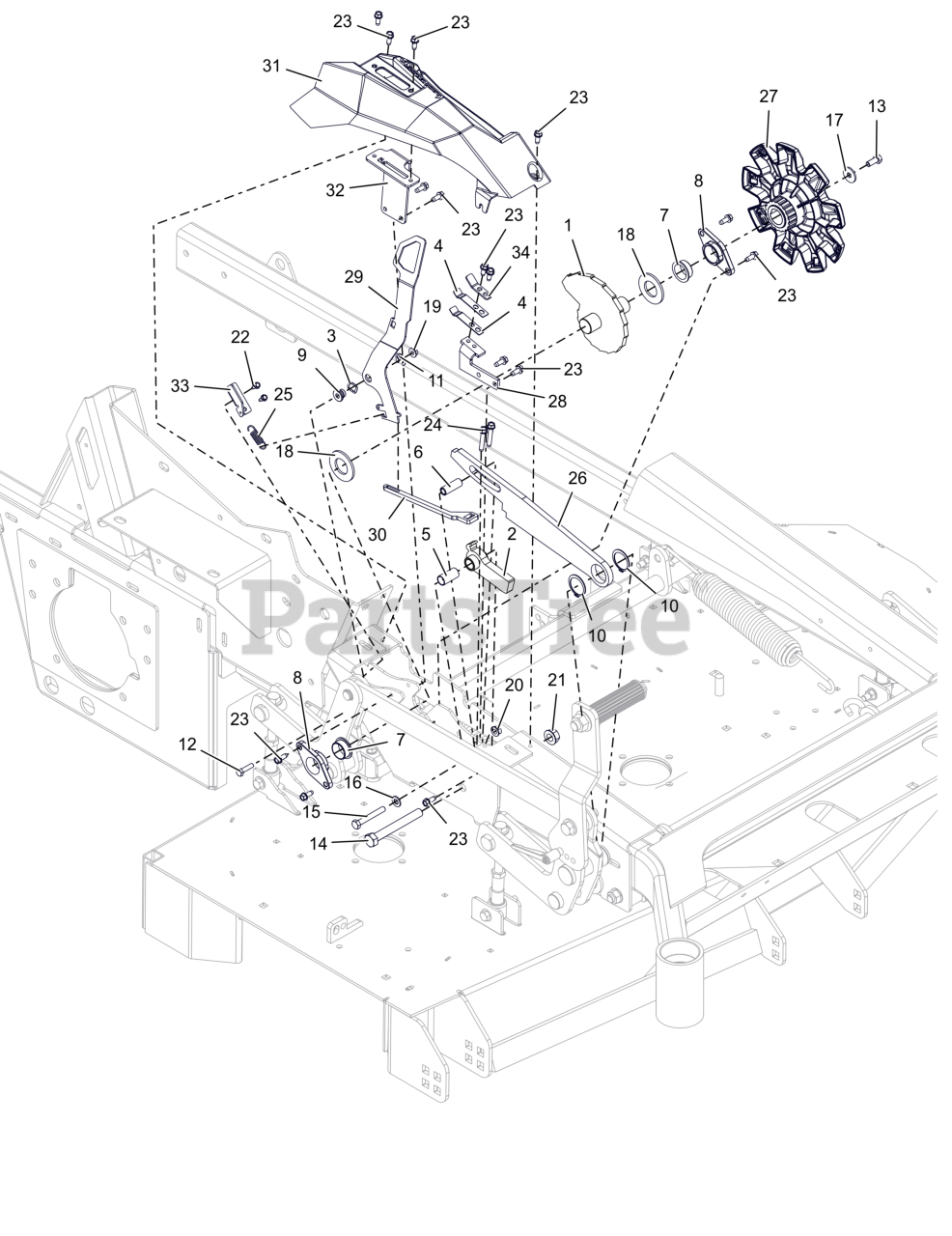

Deck Lift - Height of Cut Parts Diagram

  • Title

1

Gravely 09368000

WLDMT, HOC

$65.99

$

Usually ships in 4-12 days

0

2

Gravely 09369151

WLDMT, TRANSPORT LOCK PAWL (BLACK)

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04742100

ARM, HOC DETENT

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 05400731

SPCR-SLV .531 X .625 X 1.25

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 05400733

SPCR, SLV .328 X .439 X 1.381

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05501420

BSHG, 1.000X1.375X.650

$5.49

$

Usually ships in 4-12 days

0

9

Gravely 05501423

BSHG FLANGED .270 X .500 X .468 X .75

$

$

Currently unavailable

10

Gravely 05700213

RG-RET-EXT 1.25 X .050

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.99

$

In Stock, Qty 8

0

13

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05901734

BLT, HEX .50-13X4.00 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401027

WSHR,FLT .328X1.00X.094 ZCC

$3.99

$

In Stock, only 1 left!

0

18

Gravely 06401203

WSHR-FL-STL 1.062X2X0.134 ZCC

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

20

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

23

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.99

$

In Stock, only 3 left!

0

24

Gravely 07400140

SCR-TAP .25-20X1.50 HWH ZCC

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 08314100

SG-TENS .063X.44X1.56

$6.49

$

In Stock, Qty 6

0

26

Gravely 09367951

ARM, HOC LINK (BLACK)

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 09368100

WHEEL, HOC INDEX

$36.99

$

Usually ships in 4-12 days

0

28

Gravely 09368951

BRKT, HOC DETENT MTG (BLACK)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 09369051

LEVER, TRANSPORT LOCK (BLACK)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 09369251

ARM, TRANSPORT LOCK (BLACK)

$10.99

$

Usually ships in 4-12 days

0

31

Gravely 09369300

COVER, TRANSPORT LOCK

$24.99

$

Usually ships in 4-12 days

0

32

Gravely 09369451

PLATE, TRANSPORT LOCK POSITION (BLACK)

$19.99

$

Usually ships in 4-12 days

0

33

Gravely 09369551

BRKT, SPRG (BLACK)

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 09429751

TAB, REINFORCING (BLACK)

$15.99

$

Usually ships in 4-12 days

0
