992519 (Pro-Turn Mach One) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI (SN: 010000 & Above) Deck Lift - Mach One Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI

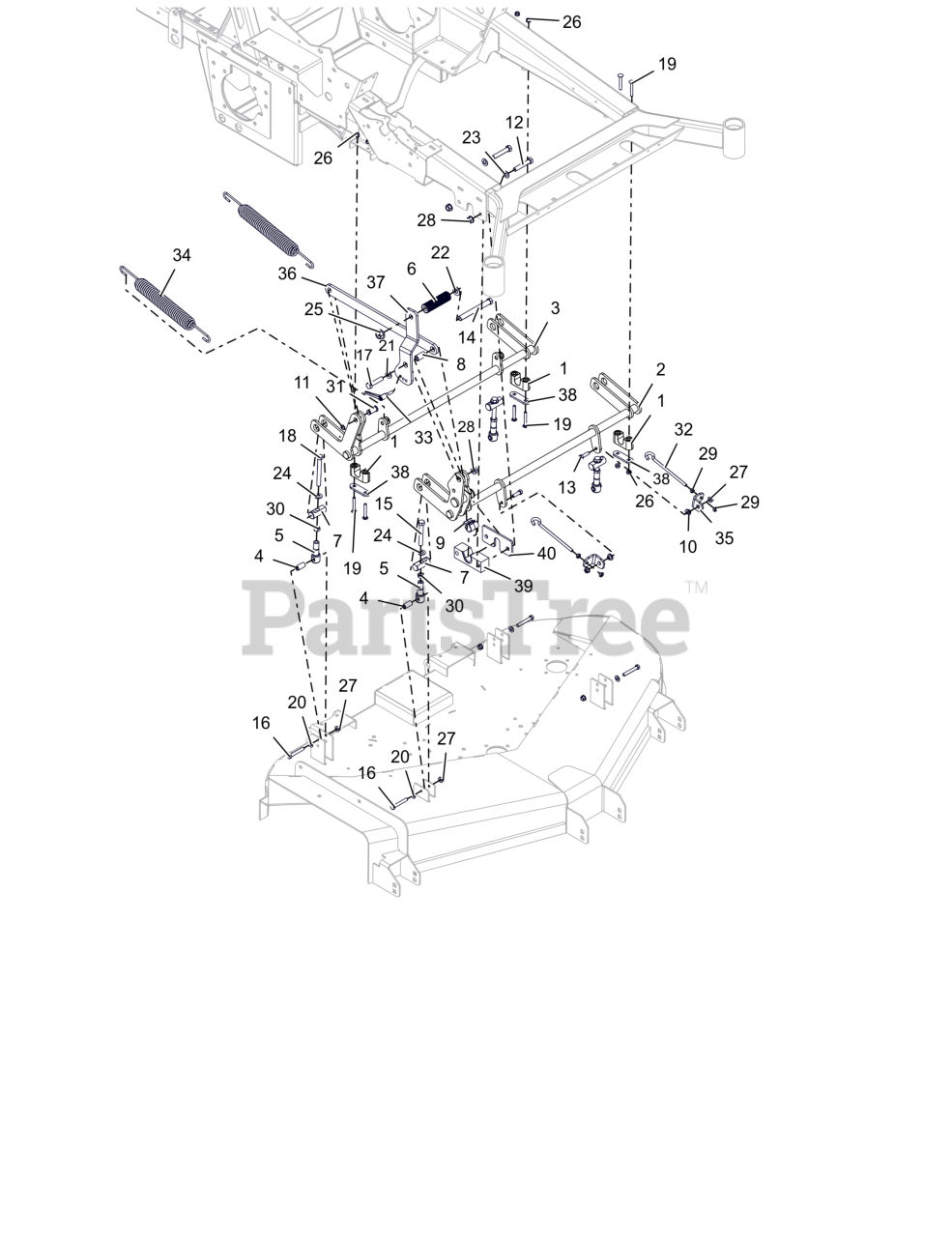

Deck Lift - Mach One Parts Diagram

  • Title

1

Gravely 07500414

ASM-BUSHING, DECK LIFT

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 09367751

WLDMT, FRONT DECK LIFT (BLACK)

$226.99

$

Usually ships in 4-12 days

0

3

Gravely 09367851

WLDMT, REAR DECK LIFT (BLACK)

$206.99

$

Usually ships in 4-12 days

0

4

Gravely 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, Qty 6

0

5

Gravely 05081400

LINK, DECK LIFT FORMED

$16.99

$

In Stock, Qty 5

0

6

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 05149500

PIN, DECK LIFT

$17.99

$

In Stock, Qty 11

0

8

Gravely 05400732

SPCR, SLV .531x.75x1.449

$5.49

$

Usually ships in 4-12 days

0

9

Gravely 05400736

BUSHING, SHAFT

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 05901720

BLT,HEX .50-13X2.75 G5 ZCC

$5.49

$

Usually ships in 4-12 days

0

13

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

14

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 05901735

BLT, HEX 0.5-13X3.5F GR5 ZCC

$6.49

$

In Stock, only 2 left!

0

16

Gravely 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

In Stock, only 3 left!

0

17

Gravely 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.99

$

In Stock, Qty 5

0

18

Gravely 05902111

BLT, HEX 0.5-13X4.5S GR5 ZCC

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

20

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 10

0

24

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$7.49

$

Usually ships in 4-12 days

0

26

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06800207

PIN, CLEVIS .625 SNAP RING

$7.49

$

Usually ships in 4-12 days

0

32

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

33

Gravely 07500502

HANDLE, CLAMPING

$18.99

$

Usually ships in 4-12 days

0

34

Gravely 08300722

SPRG, DECK LIFT

$23.99

$

Usually ships in 4-12 days

0

35

Gravely 09368751

BRKT, SPRING ANCHOR (BLACK)

$19.99

$

Usually ships in 4-12 days

0

36

Gravely 09368851

LINK, DECK LIFT (BLACK)

$25.99

$

Usually ships in 4-12 days

0

37

Gravely 09378251

ARM, ADJUSTABLE FOOT PEDAL (BLACK)

$38.99

$

Usually ships in 4-12 days

0

38

Gravely 09382951

PLATE, PT600 BEARING SUPPORT (BLACK)

$6.49

$

Usually ships in 4-12 days

0

39

Gravely 09394900

BUSHING, DECK LIFT
(Superseded to 09466900)

$35.99

$

Usually ships in 4-12 days

0

40

Gravely 09439153

PLATE, SHAFT RETAINER (RED)

$7.99

$

Usually ships in 4-12 days

0
