992520 (Pro-Turn 348) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 000999) Deck, Spindles, Belts and Blades - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

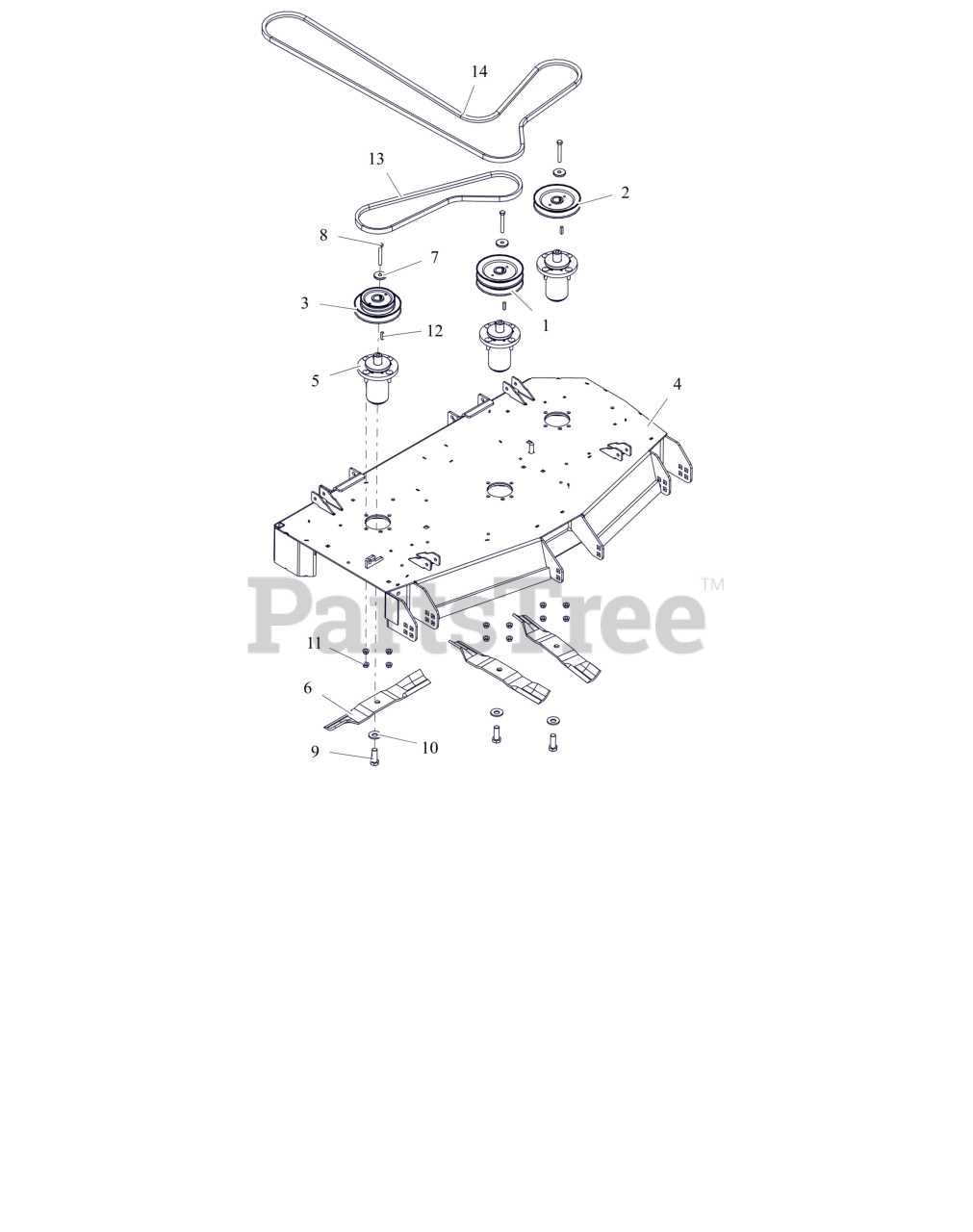

Deck, Spindles, Belts and Blades - 48" Parts Diagram

  • Title

1

Gravely 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

$82.99

$

In Stock, Qty 11

0

2

Gravely 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$72.99

$

In Stock, Qty 7

0

3

Gravely 07340200

PULLEY, DBL-1"IDX5.75"&4.25"OD

$64.99

$

Usually ships in 4-12 days

0

4

Gravely 09460453

WLDMT- 48" SIDE DISCH DECK

$646.99

$

Usually ships in 4-12 days

0

5

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$361.99

$

In Stock, Qty 20+

0

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 8

0

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

13

Gravely 07200035

V-BELT, B-COGGED

$55.99

$

In Stock, Qty 19

0

14

Gravely 07200729

V-BELT, HB RAW EDGE EPDM

$115.99

$

Usually ships in 4-12 days

0
