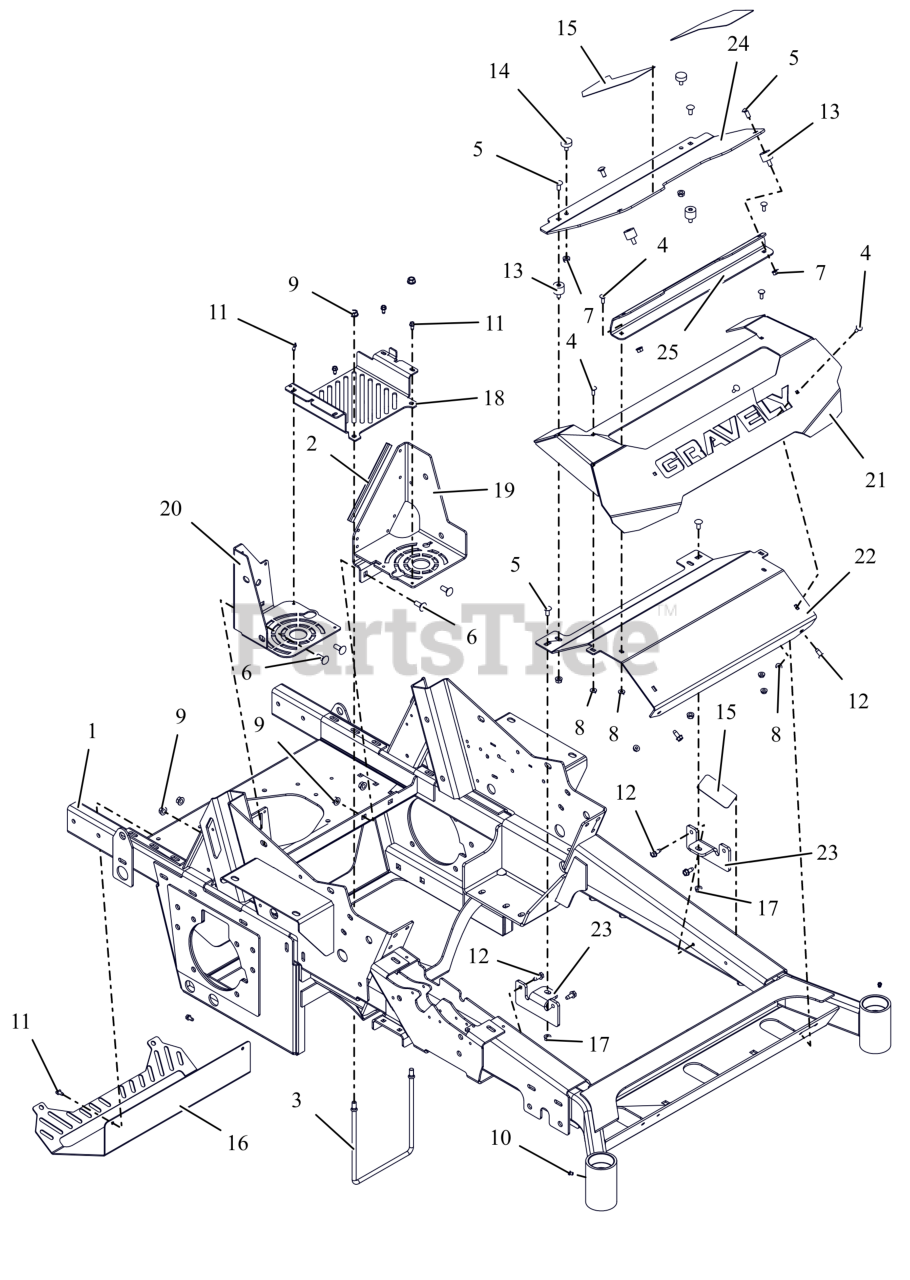

992522 (Pro-Turn 360) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 000999) Frame, Front Bumper and Battery Tray - 48", 52", and 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

Frame, Front Bumper and Battery Tray - 48", 52", and 60" Parts Diagram

  • Title

1

Gravely 09363853

WLDMT, 48", 52", 60" FRAME (RED)

$1612.99

$

Usually ships in 4-12 days

0

2

Gravely 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 03975800

ROD, BRAKE MTG

$24.99

$

Usually ships in 4-12 days

0

4

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, only 3 left!

0

7

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, only 4 left!

0

13

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

15

Gravely 09390700

KIT, PT300-600 ANTI-SKID Tape

$52.99

$

Usually ships in 4-12 days

0

16

Gravely 09375151

GUARD, MUFFLER (BLACK)

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09494753

TRAY- BATTERY

$32.99

$

Usually ships in 4-12 days

0

19

Gravely 09670753

GUSSET-LH BATTERY TRY/ROPS-RED

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 09670853

GUSSET- FAN GUARD/ROPS - RED

$59.99

$

Usually ships in 4-12 days

0

21

Gravely 09672453

BMPR-PT300-500 FRT FTRST/ -RED

$211.99

$

Usually ships in 4-12 days

0

22

Gravely 09672551

BRKT-FRT BUMPER MTG/BACKER-BLK

$79.99

$

Usually ships in 4-12 days

0

23

Gravely 30135053

BRKT- FOOTREST MTG

$23.99

$

Usually ships in 4-12 days

0

24

Gravely 30157653

FOOTREST, PT300-500 (RED)

$81.99

$

Usually ships in 4-12 days

0

25

Gravely 30157751

BRKT, FOOTREST SUPPORT (BLK)

$35.99

$

Usually ships in 4-12 days

0
